M20 Hardware Design
If the module is used as a caller, the RI0 would maintain high. On the other hand, when it is used
as a receiver, the timing of the RI0 is shown below.
RI0
Idle Ring
Off-hook by
“ATA”. On-hook
by “ATH”. Calling
party on-hook. SMS
received.
HIGH
LOW

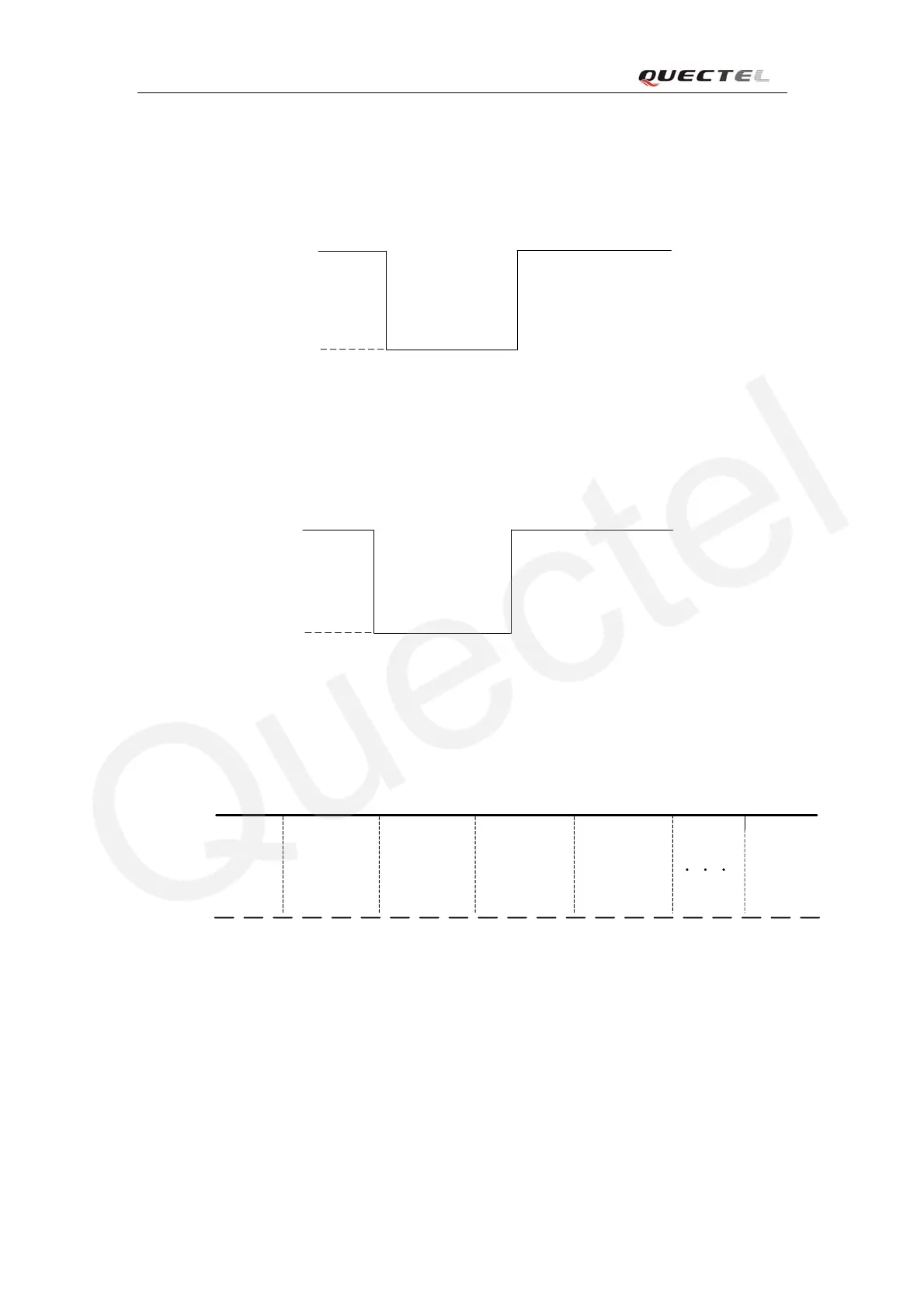

Figure 37: RI0 behaviour of voice calling as a receiver
RI0
Idle Ring
Enter GPRS Ready
Mode. On-hook by
“ATH”.
HIGH
LOW
Figure 38
: RI0 behaviour of data calling as a receiver
RI0
Idle Calling
On-hook
Talking
HIGH
LOW
SMS received Idle
Figure 39: RI0 behaviour of data calling as a caller
M20_HD_V1.01 - 60 -
