M20 Hardware Design
Note ：
The receptacle connector is used at the module side and the header connector is used at the host
PCB side.
7.4 RF connector
7.4.1 Physical photo of the UF.L-R-SMT connector

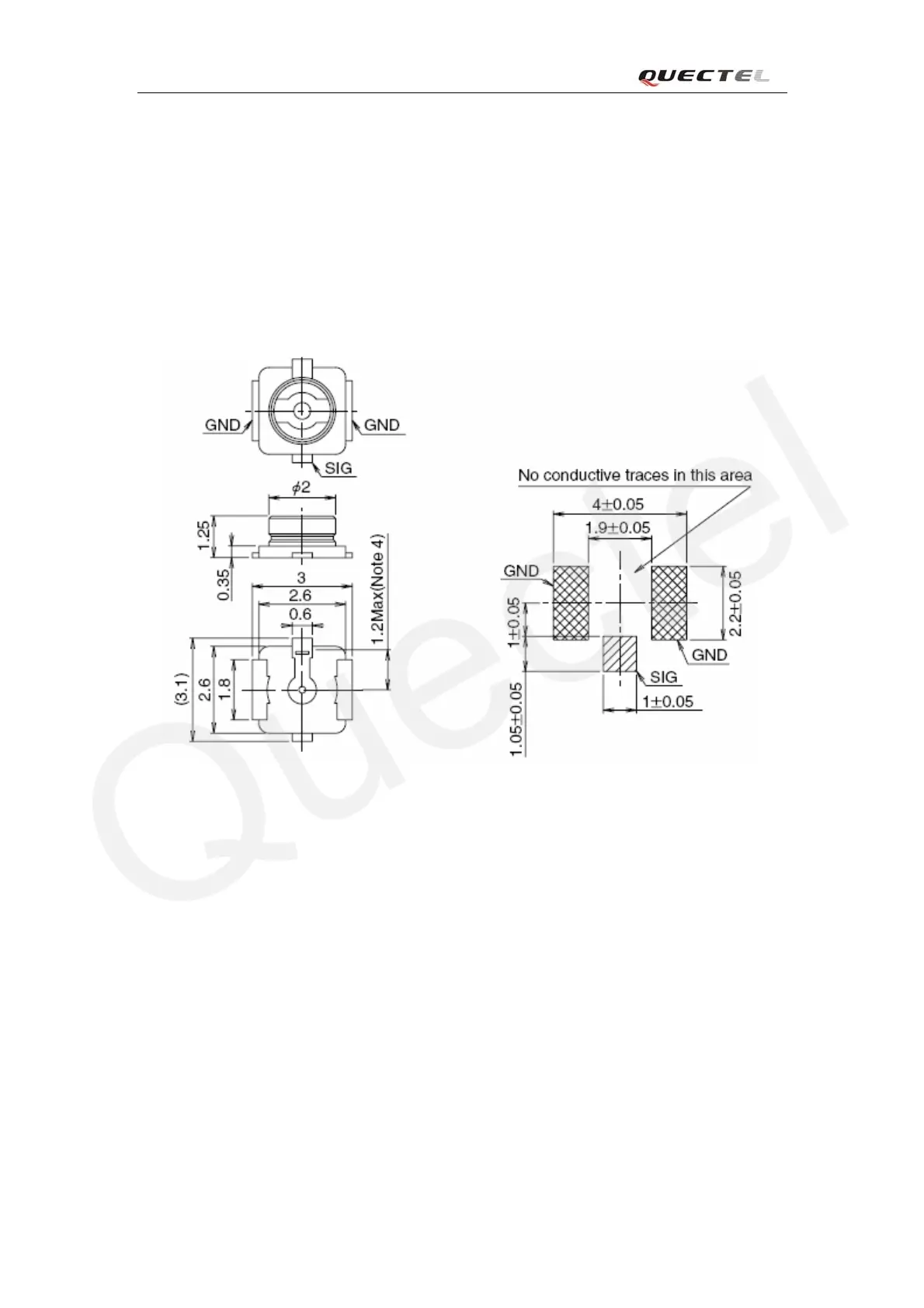

Figure 49: Physical photos of the UF.L-R-SMT connector（Unit: mm）
7.4.2 Matching connector on the application side of M20
Five types of female connector can match UF.L-R-SMT. The mechanicals of them are listed in the
following figure:
M20_HD_V1.01 - 76 -
