7 Mechanical dimension
This chapter describes the mechanical dimensions of the module.
7.1 Mechanical dimensions of module

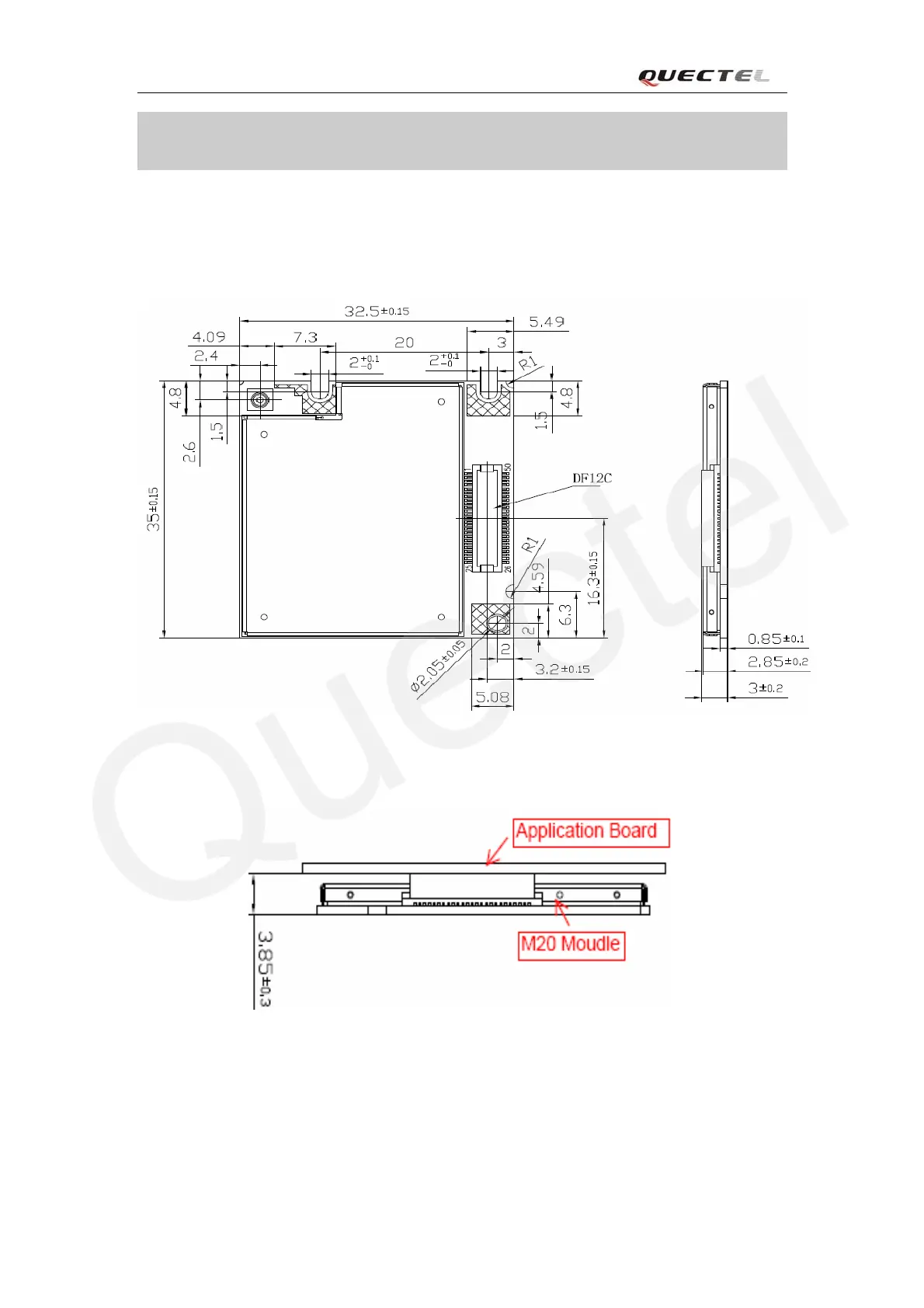

Figure 43: M20 TOP and SIDE dimensions（Unit: mm）
Figure 44: M20 module matchs with the application board（Unit: mm）
