M20 Hardware Design

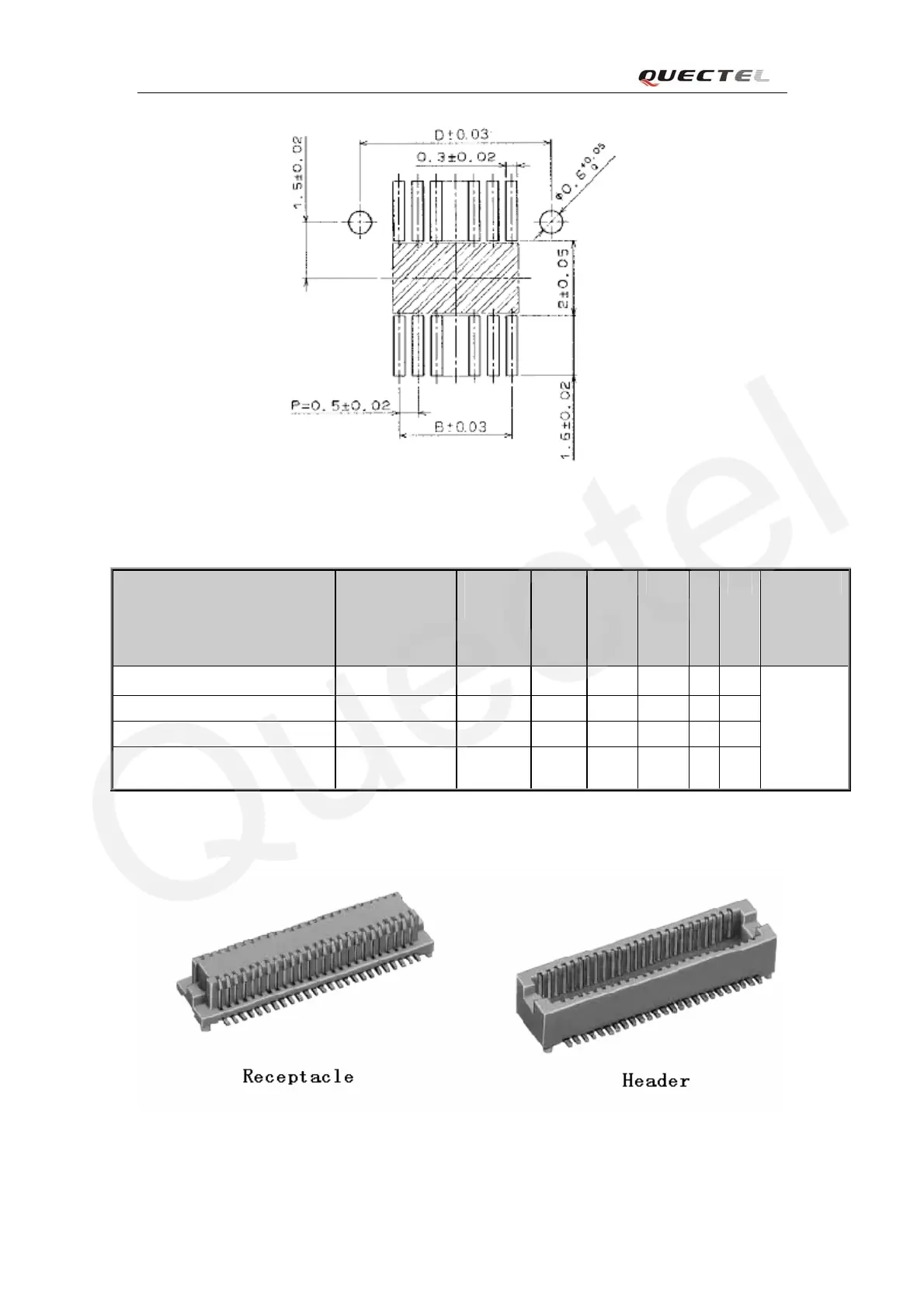

Figure47:Footprint of recommendation（Unit:mm）
Table 39: Dimensions of DF12 connector
Part number CL No. Pin
number
A B C D E Remarks
DF12E (3.0)-50DP-0.5V(81) 537-0834-6- 81 50 14.7 12.0 13.2 - 2.3
DF12E (3.5)-50DP-0.5V (81) 537-0534-2- 81 50 14.7 12.0 13.2 -
2.8
DF12E (4.0)-50DP-0.5V (81) 537-0559-3- 81 50 14.7 12.0 13.2 -
3.3
DF12E (5.0)-50DP-0.5V (81) 537-0584-0- 81 50 14.7 12.0 13.2 -
4.3
Without
metal
fitting
Without
boss
7.3.3 Physical photo of the DF12 connector
Figure 48: Physical photos of the DF12 connectors
M20_HD_V1.01 - 75 -
