NB-loT Module Series
BC660K-GL-TE-B User Guide
BC660K-GL-TE-B_User_Guide 17 / 30
3.2. Operation Procedure with Multiple Boards
This chapter elaborates the assembly procedure for using BC660K-GL-TE-B in conjunction with an STM32
Nucleo-64 development board.
3.2.1. Interface Diagram of BC660K-GL-TE-B Used with STM32 Nucleo-64
J304
J309
J308J305
S103
J201
J301
J202
J206
D203
J306
J302
J307
S101
S102
J303
J105
J106

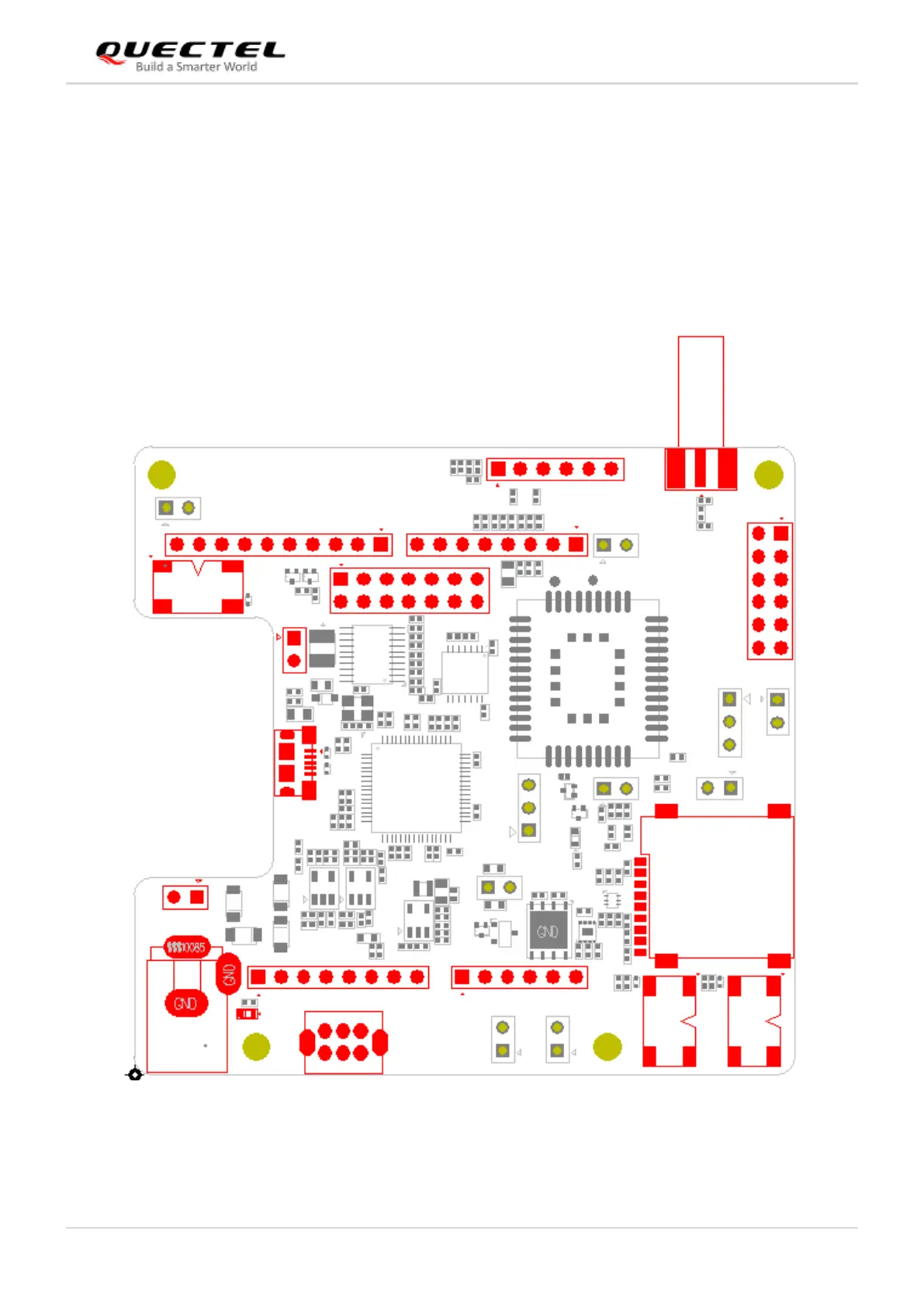

Figure 6: Interface Diagram of BC660K-GL-TE-B Used with STM32 Nucleo-64
