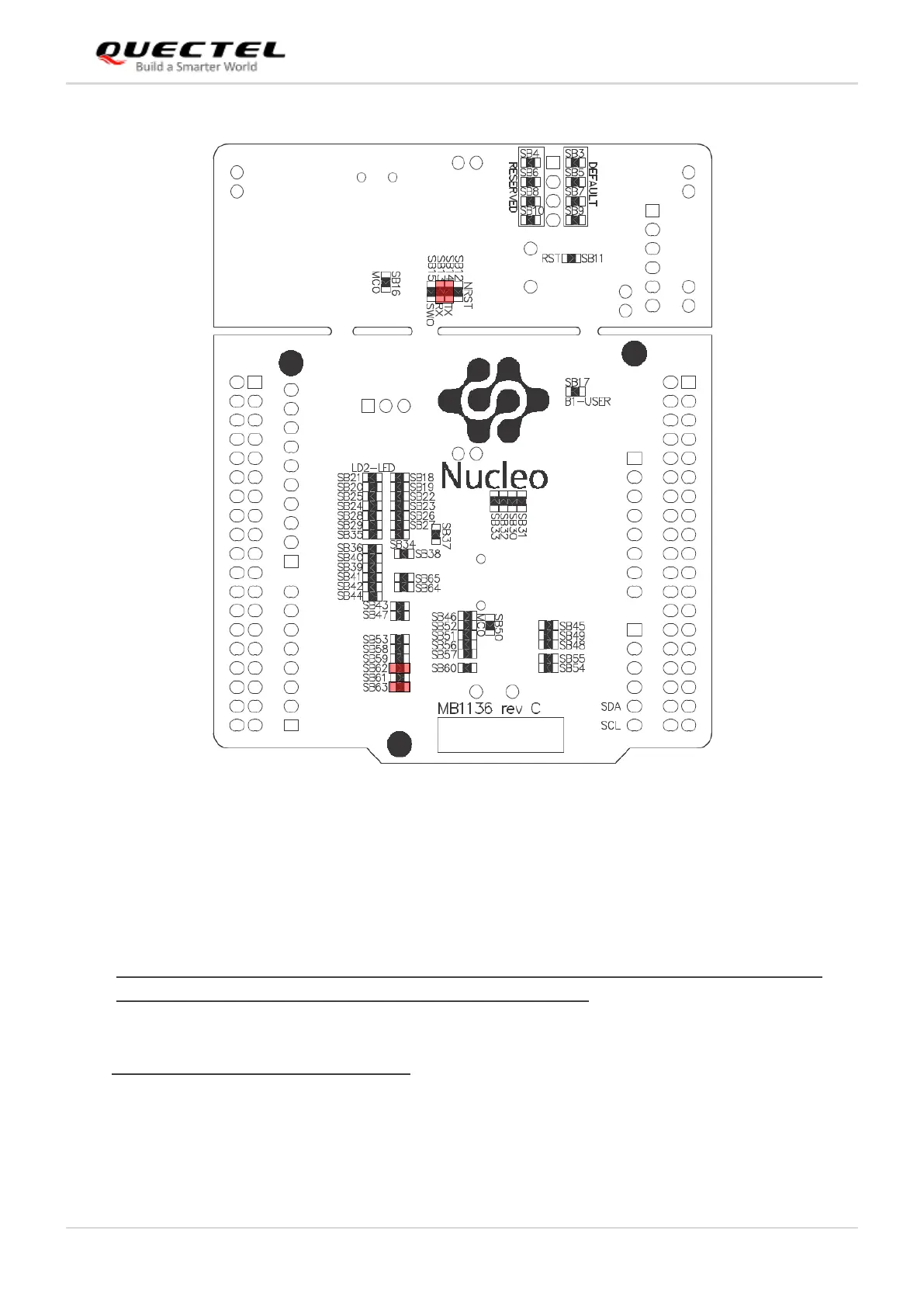

Figure 8: Interface Diagram of STM32 Nucleo-64 Used with BC660K-GL-TE-B (Bottom View)
3.2.2. Operation Procedure for Using Multi-Boards
1. Install a driver for STM32 Nucleo-64 board; the driver can be downloaded from the following link:
http://www.st.com/content/st_com/en/products/evaluation-tools/product-evaluation-tools/mcu-eval-
tools/stm32-mcu-eval-tools/stm32-mcu-nucleo/nucleo-l476rg.html;
2. Install a USB-UART driver, which can be downloaded from the following link:
https://www.ftdichip.com/Drivers/VCP.htm
3. Remove the two 0 Ω resistors (SB13 and SB14) with a soldering iron, and then solder them onto SB62
and SB63 respectively;
