3.3. PHY TE-A Interface (J1901/J1902)
The PHY TE-A interface is designed to accommodate the PHY TE-A (PHY8035-TE-A). The PHY TE-A is
mounted onto and connected to the EVB via BTB connectors J1901 and J1902 (insert as indicated by the
arrow to prevent reverse insertion).

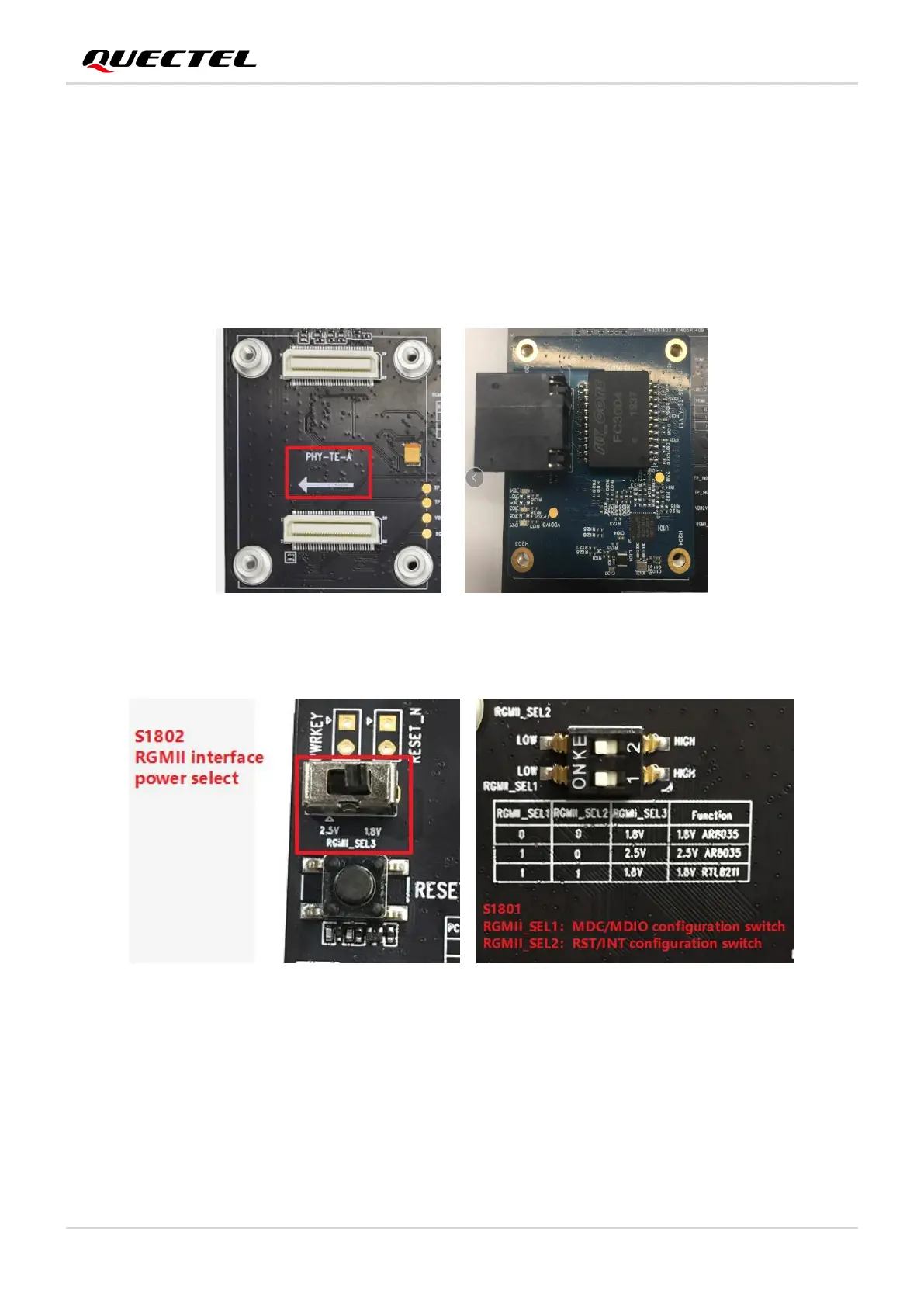

The following two figures displays the connection between PHY8035-TE-A and EVB.
Figure 8: Connection Between PHY8035-TE-A and the EVB
Figure 9: S1801/S1802 Switch
