5G/LTE-A Module Series
5G EVB User Guide
5G_EVB_User_Guide 33 / 38

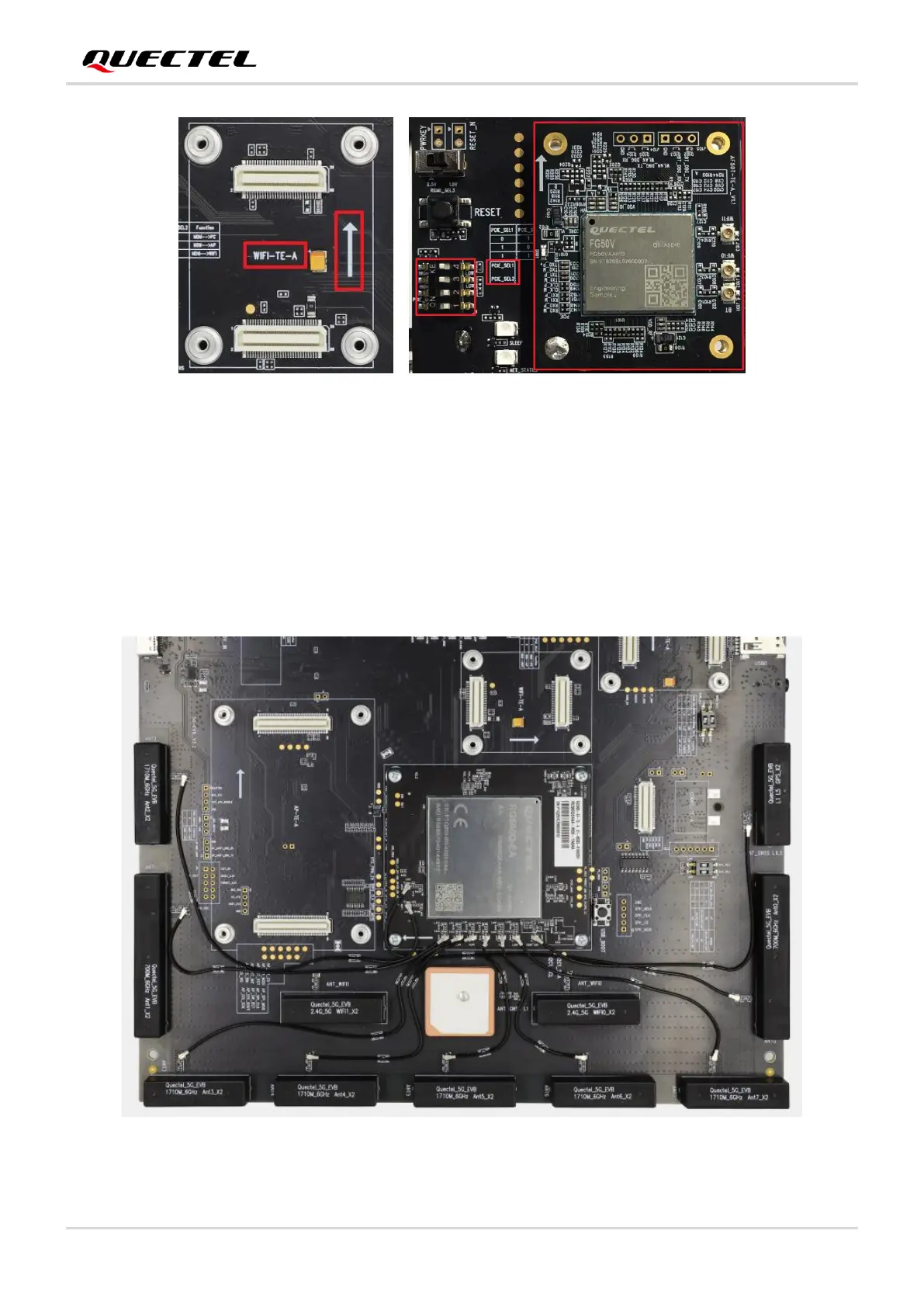

Figure 31: Connection Between FG50V-TE-A and the EVB
3.13. Antenna Interfaces
The 5G EVB includes twelve antenna interfaces. The following figure shows the assembly of these
antenna interfaces.
Figure 32: Antenna Interfaces
