5G/LTE-A Module Series
5G EVB User Guide
5G_EVB_User_Guide 30 / 38

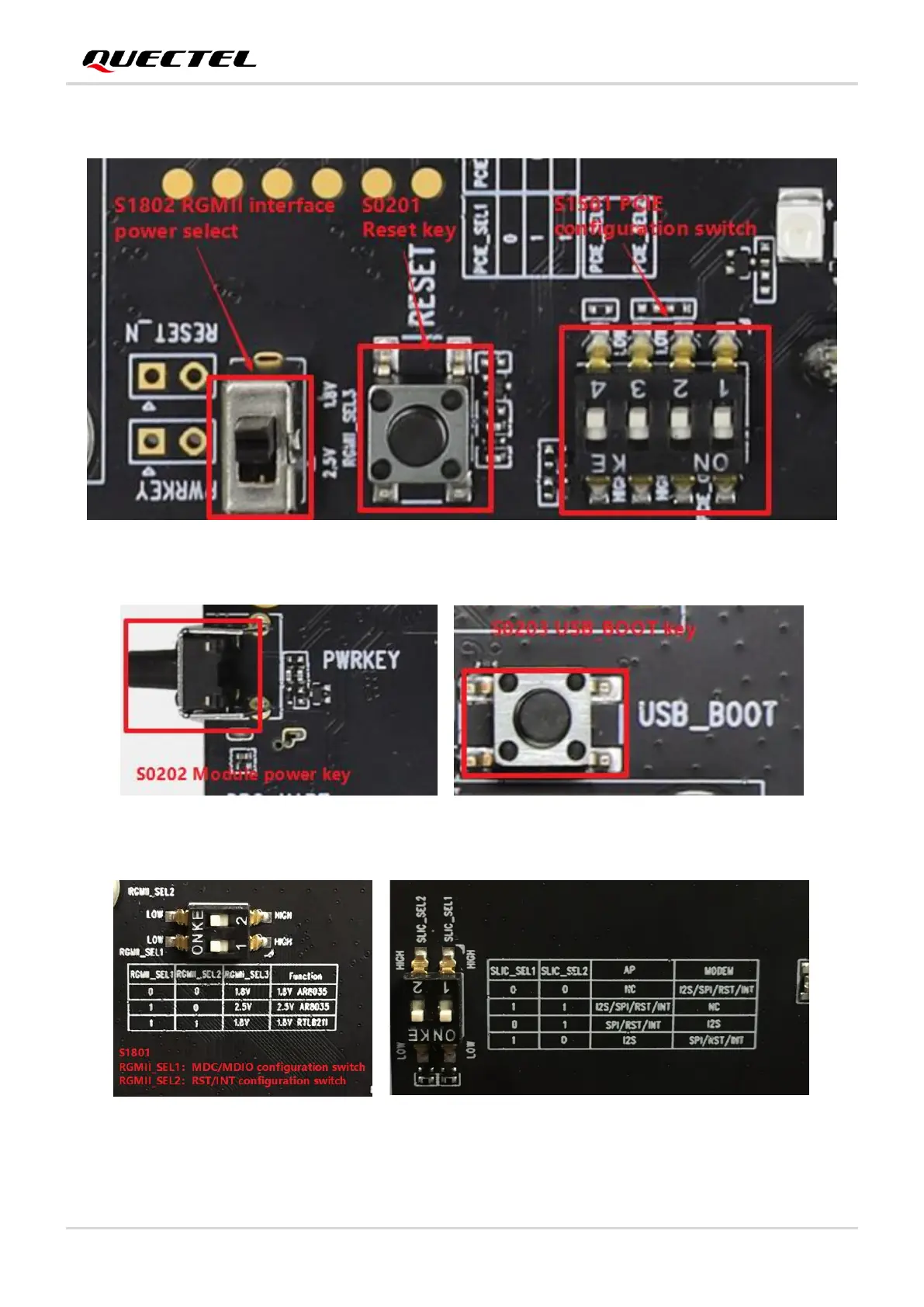

Figure 26: S1802/S1501 Switch and S0201 Button
Figure 27: S0202/S0203 Button
S2801 codec configuration switch
MODEM: codec connected to the module
AP: codec connected to the AP
Figure 28: S1801/S2801 Switch
