Smart Module Series
SG368Z_Series_Hardware_Design 65 / 113

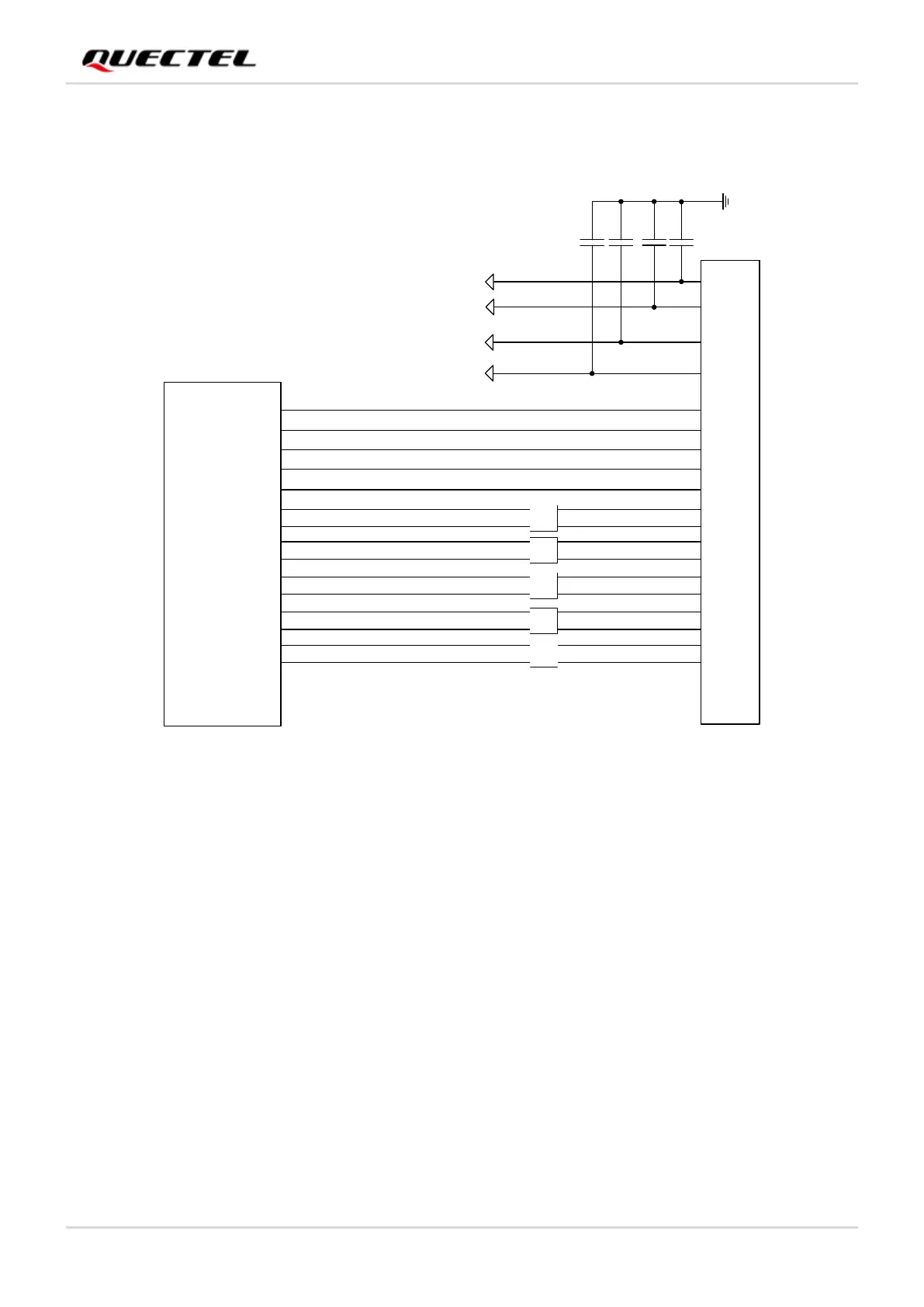

The following is a reference design of one-camera application:
CAM0_PWDN
CAM0_MCLK
CAM0_RST
AVDD
AF_VDD
DVDD
DOVDD
1 μF
1 μF
4.7 μF
4.7 μF
AF_VDD_2V8
AVDD_2V8
DVDD_1V1
DOVDD_1V8
I2Cx_SDA
I2Cx_SCL
CSI_LN0_P
CSI_LN0_N
CSI_LN1_P
CSI_LN1_N
CSI_CLK0_P
CSI_CLK0_N
CSI_LN2_P
CSI_LN2_N
CSI_LN3_P
CSI_LN3_N
CAM
Module
EMI
EMI
EMI
EMI
EMI
Figure 21: Reference Design of One-Camera Application
