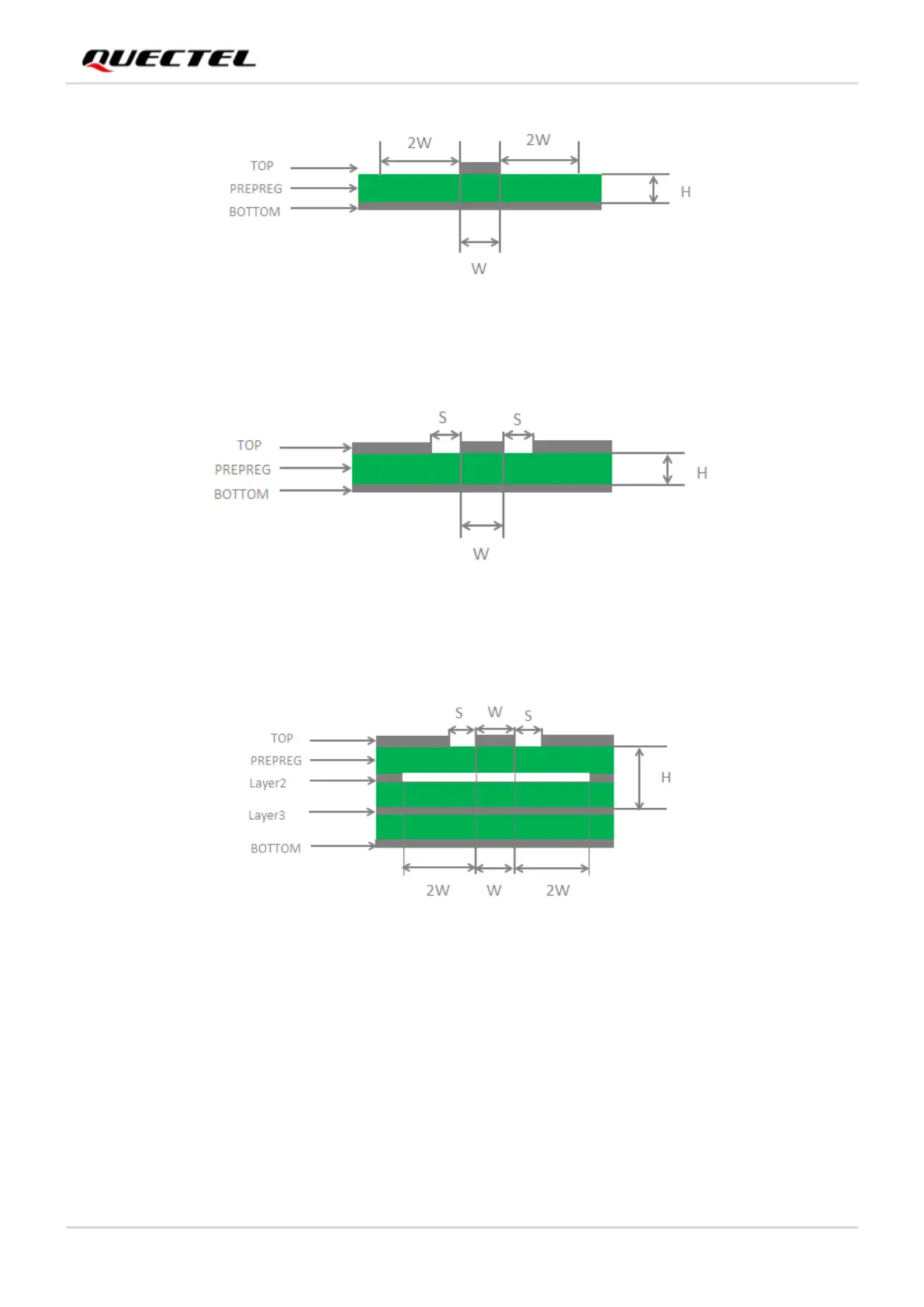

Figure 31: Microstrip Design on a 2-layer PCB
Figure 32: Coplanar Waveguide Design on a 2-layer PCB
Figure 33: Coplanar Waveguide Design on a 4-layer PCB (Layer 3 as Reference Ground)
