Quectel UC20 Application Note

UMTS/HSPA Module Series
UC20 PPP Application Note
UC20_PPP_Application_Note Confidential / Released 16 / 29

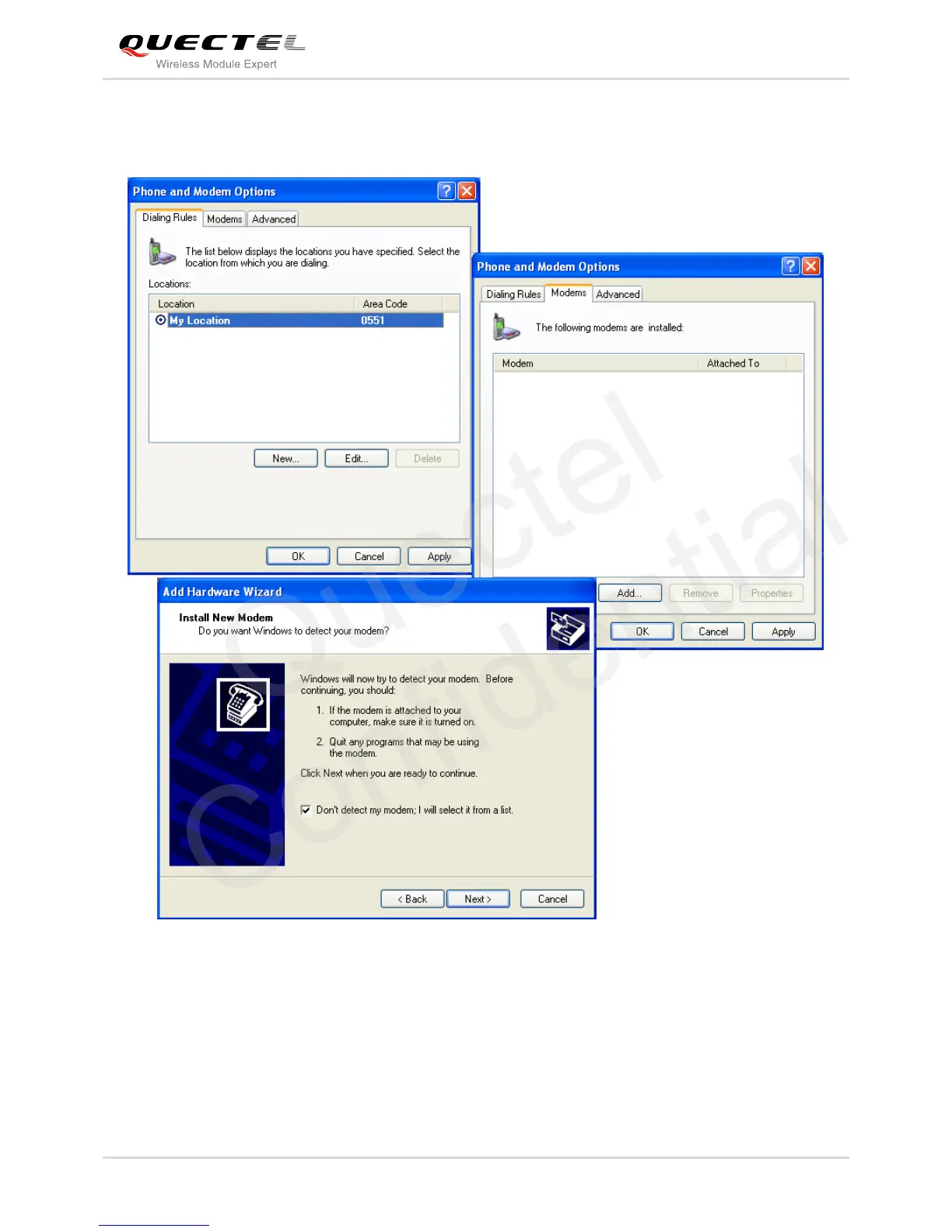

2. Double click “Phone and Modem Options”, and select “Modems”-> “Add…” to add a new modem.
Refer to Figure 5.
Figure 5: Add a New Modem
Install the new modem, refer to the instructions on the screen, select “Standard 19200 bps Modem” and
a port (COM3) which will be installed, click “Next” button, till the configuration is finished. Refer to Figure 6,
Figure 7 & Figure 8.
