Quectel UC20 Application Note

UMTS/HSPA Module Series
UC20 PPP Application Note
UC20_PPP_Application_Note Confidential / Released 22 / 29

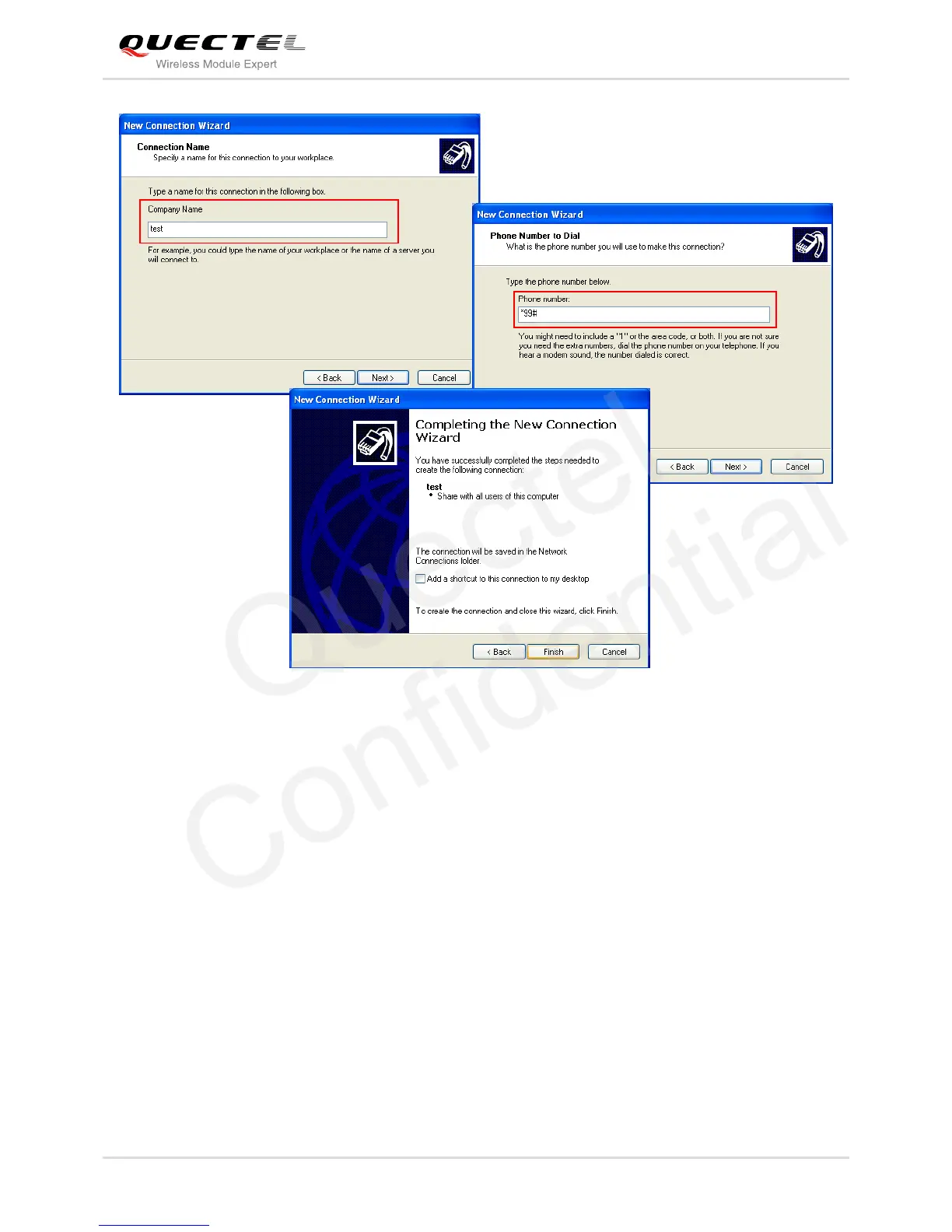

Figure 12: Configure the Setting
5.3.3. Configure the Dial-up Tool
Click “Properties” button from the popup box and “Configure…” button to configure the “Standard
19200 bps Modem”, select “115200” from the drop-down list of “Maximum speed”. Click “OK” button to
finish the configuration. Refer to Figure 13.
Quectel
Confidential

Quectel UC20 Specifications

General

Brand	Quectel
Model	UC20
Category	Control Unit
Language	English
