Quectel UC20 Application Note

UMTS/HSPA Module Series
UC20 PPP Application Note
UC20_PPP_Application_Note Confidential / Released 23 / 29

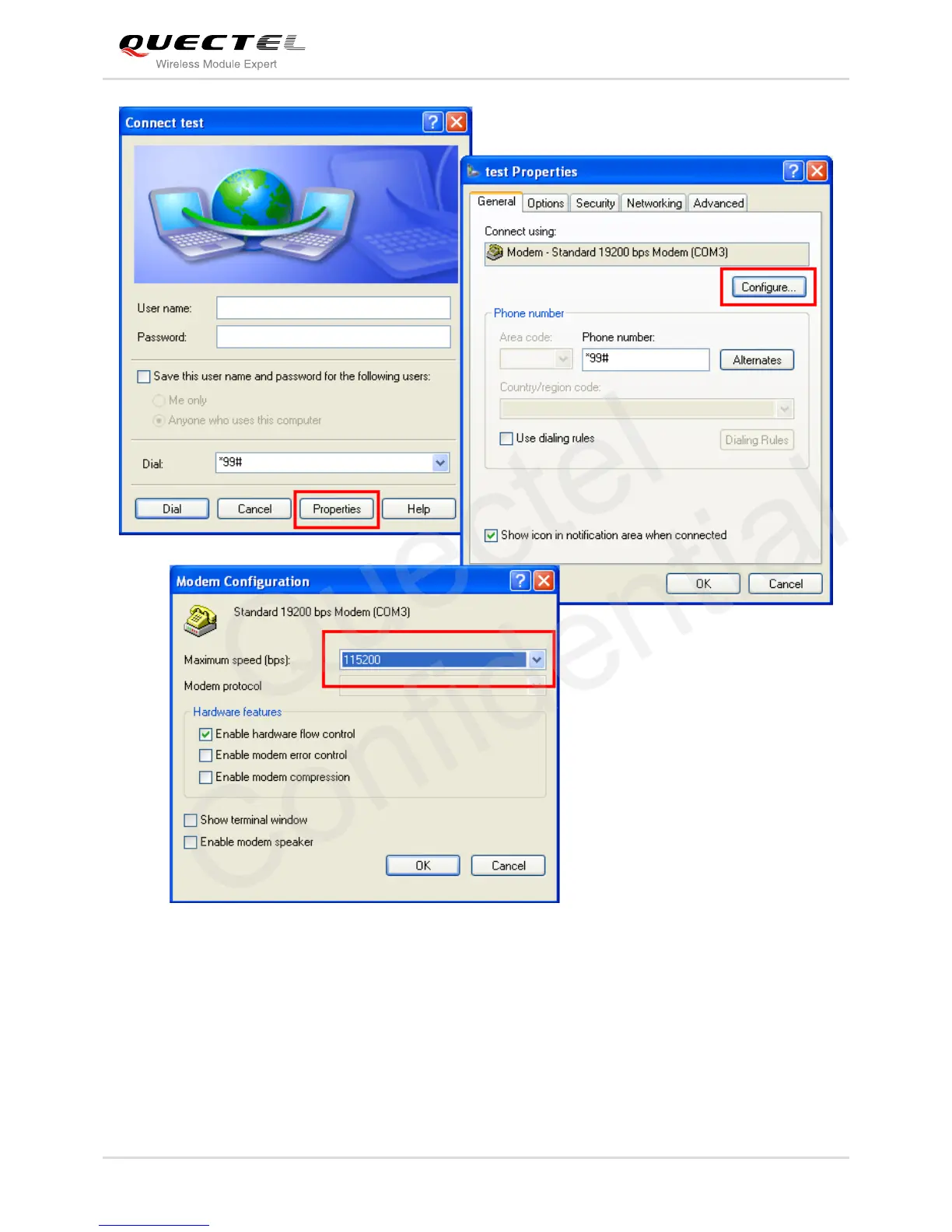

Figure 13: Configure the Dial-up
5.3.4. Establish the Dial-up Connection
Right click “Test” which was created as the new connection and click “Connect”-> “Dial” from network
connections. It is successful to establish the dial-up connection when a prompt box “test is now
connected” is popped up. Refer to Figure 14.
