other than the one supplied.
Speakers
You will need to use 6 speakers with the unit (2
front, 1 center, 2 rear, 1 subwoofer). In order to
enjoy good surround effects all six speakers need to
be connected to the receiver.
At least two front speakers (left and right) are
required. For better sound quality, center speaker,
rear speakers and subwoofer should also be
connected. Adding center and rear speakers will
enhance surround effects. Adding a Subwoofer will
increase bass response.
If you want to enjoy full range of sound effects, with
small speakers, it is a must to use the subwoofer
with the speakers to maintain adequate bass signal.
Speaker cords
1 for each speaker is needed for connection. Twist
the stripped ends of the speaker cord about
2/3”(15mm). Press down on the tab to open the
terminal and insert the wire. Snap the tab closed.
To ease speaker connections, the terminals are color
coded.
• Red/Black (Front Speakers)
• Blue”Black (Center Speaker)
• Grey/Black (Rear Speakers)

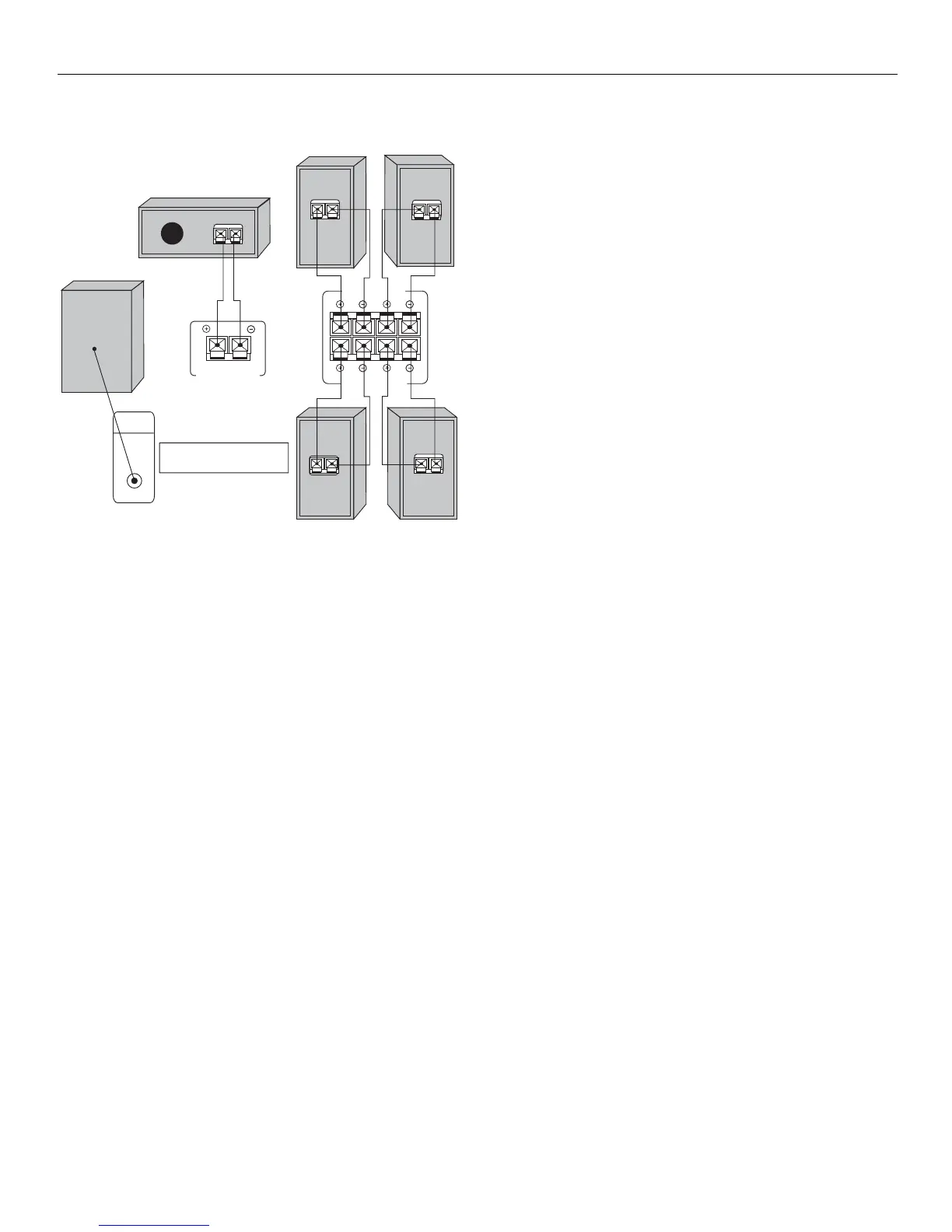

Connect the L, R speaker to the red/black terminal
on the receiver. Do the same for the center (with
blue/black terminal), rear speaker (with grey/black
terminal).
Speaker polarity
When connecting the speakers, make sure the
polarities (“+” speaker wire to “+” on the receiver)
of speaker wires and terminals are matched. If the
cords are reversed, the sound will be distorted and
will lack bass ("out of phase" effect).
CONNECTING THE SUBWOOFER
To connect your own powered subwoofer, a mono
aural audio cord (not supplied) is needed
(RCA terminal).
This receiver offers a high flexibility for user to use
a large variety of speakers and subwoofers. For
more information please refer to section "Fine
Setting of the Speakers" in “Advanced Sound
Control" on page 18.
