115
ENGLISH (115-501)
F
CONNECTION / DISCONNECTION
Make sure, when disconnecting imple-
ments, that the bucket rams NOT are in end
position (disconnection under pressure may
cause problems when connecting).

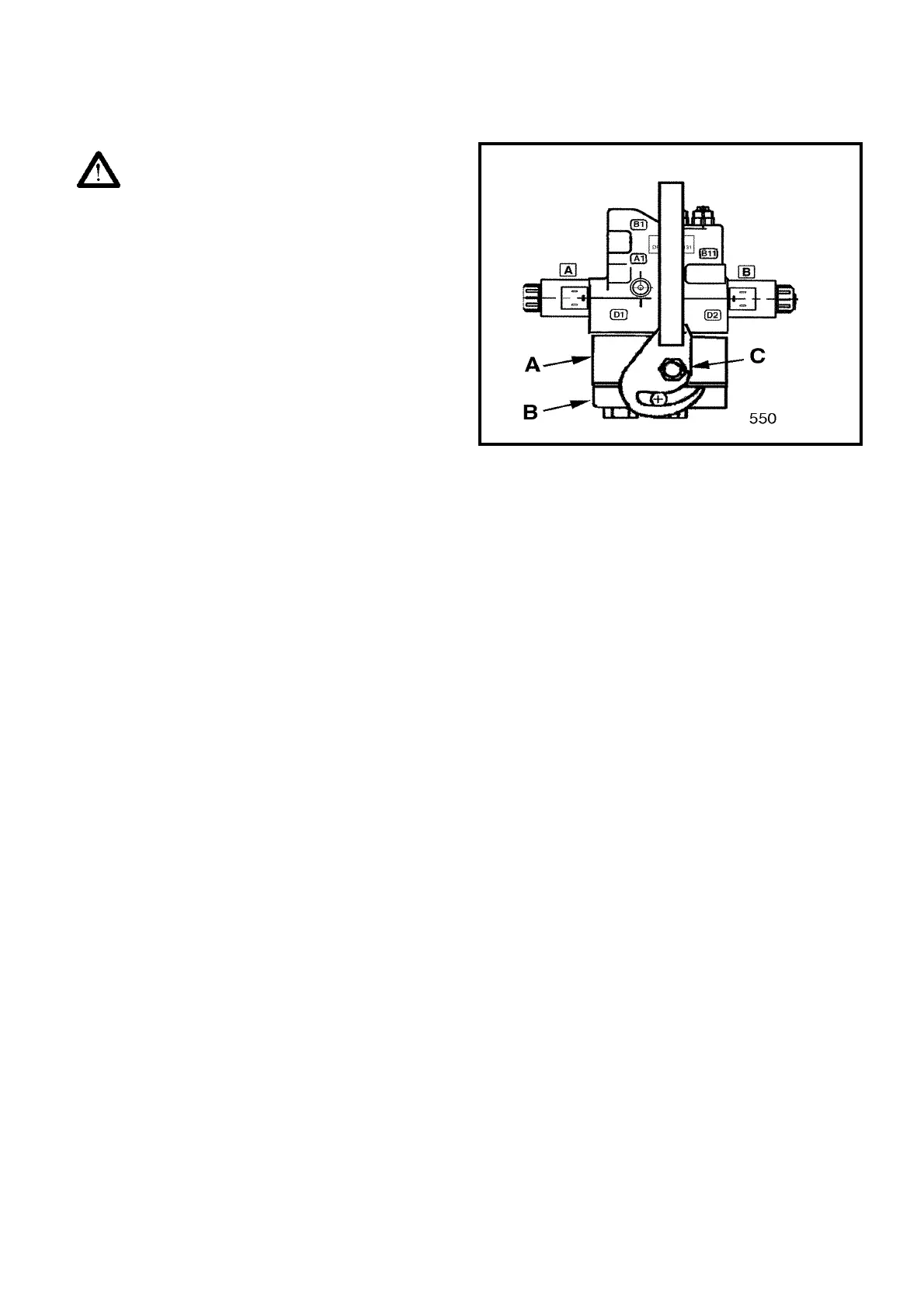

Fig. F
Connection
- Clean the surfaces carefully of loader-and implement
parts.
- Fit the dowels of the implement part into correspond-
ing holes on the loader part (A).
- Make sure that the lever grips the implement part (B)
and move lever backwards until the lever is secured.
- Always when connecting check that the lever is
locked.
Disconnection
- Push button C and move lever forwards.
- Remove the implement part and hitch on to the
implement.
Move the lever to locked position for protection
( IMPORTANT).
SPECIFICATIONS
Dimension of quick couplings: 3/8"
Oil pressure: max. 200 bar (the total pressure on all
couplings (2 or 4).
MAINTENANCE
Always when connecting, clean the surfaces of the
loader - and implement parts carefully.
Oil leakage
The quick couplings may get damaged, either due to
impurities ( not cleaned surfaces before connection) or
due to an exceeding of the max. allowed oil pressure
(200 bar). If this is the case, locate the leaking line and
exchange the damaged coupling - see the spare parts
sheet.
ATTENTION
Faulty use or maintenance of products aimed for high oil
pressures may cause serious damages. It is therefore of
the utmost importance that the instructions are followed
and that damaged or worn out parts are immediately
exchanged.
