R-Biopharm KOBRA CELL - Installation Guide

11
R-Biopharm Rhone Ltd
4.3 Installation Guide
Column
Detector Inlet Detector Outlet
Detector
Reaction Coil
Outlet
Inlet
Red Terminal
Black Terminal
Inlet Outlet
Waste
Working Electrode
(platinum)
Spacer
Membrane
Spacer
Counter Electrode
(Stainless Steel)
Membrane: Reichelt Thomapor Anion.
Capillary connections: Valco 1/16 inch (do not use metal nuts or ferrules because these can
damage the electrochemical properties of the cell).
Working pressure: Max 2 bar.

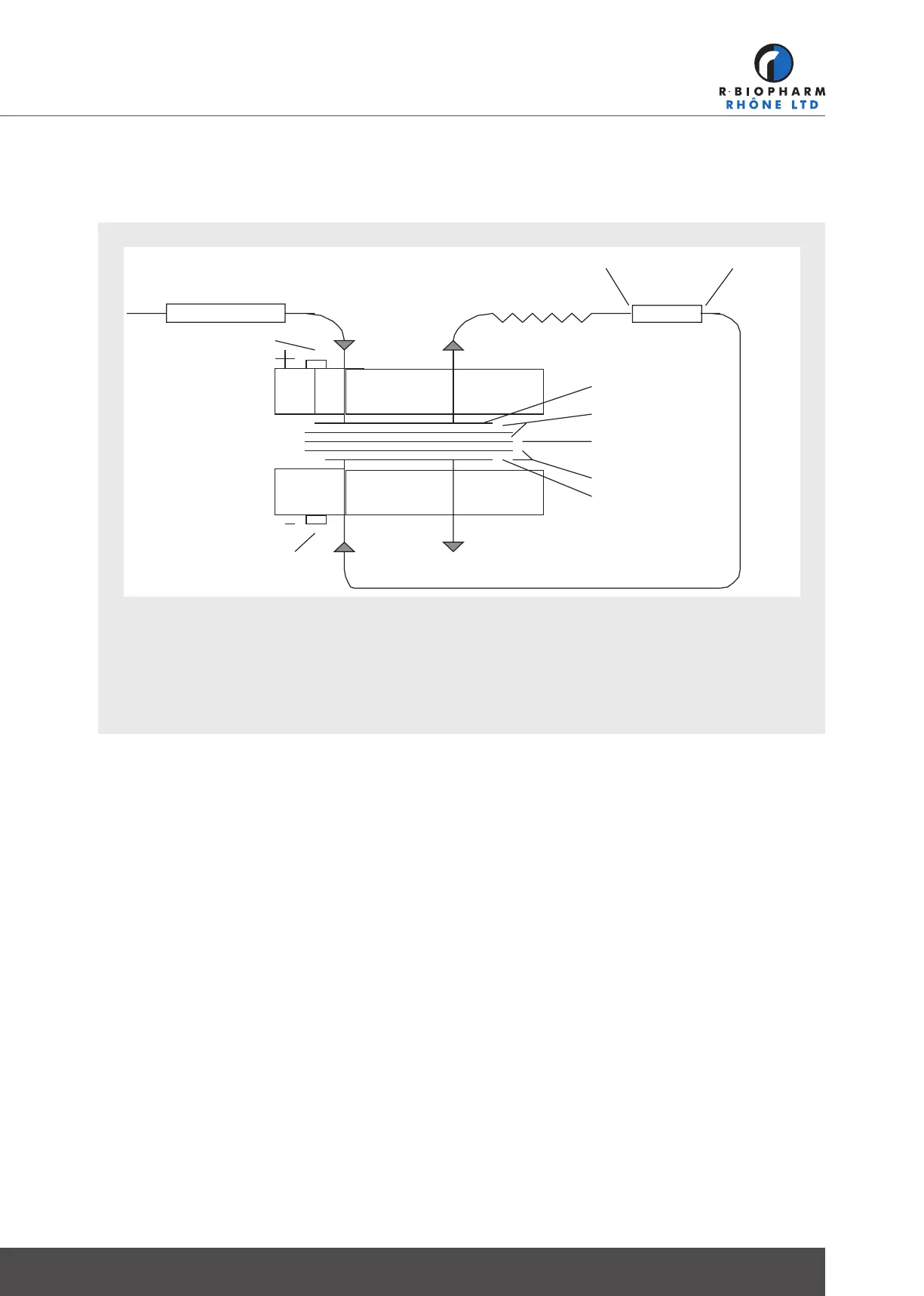

Fig 3. KOBRA
®
CELL Installation
