3.1 Components
3
Assembly of the KOBRA
®
CELL
1. 6 locating screws
2. White plastic housing with red
terminal (top)
3. PTFE spacer with reaction
area: 0.1 mm
(K09)
4. Platinum electrode
(K05)
5. PTFE spacer: 0.25 mm
(K07)
6. Ion exchange membrane
(K02)
7. PTFE spacer: 0.25 mm
(K07)
8. Spacer grid
(K10)
9. PTFE spacer: 0.25 mm
(K07)
10. Stainless steel electrode
(K04)
11. PTFE spacer: 0.1 mm
(K08)
12. White plastic housing with
black terminal (bottom)

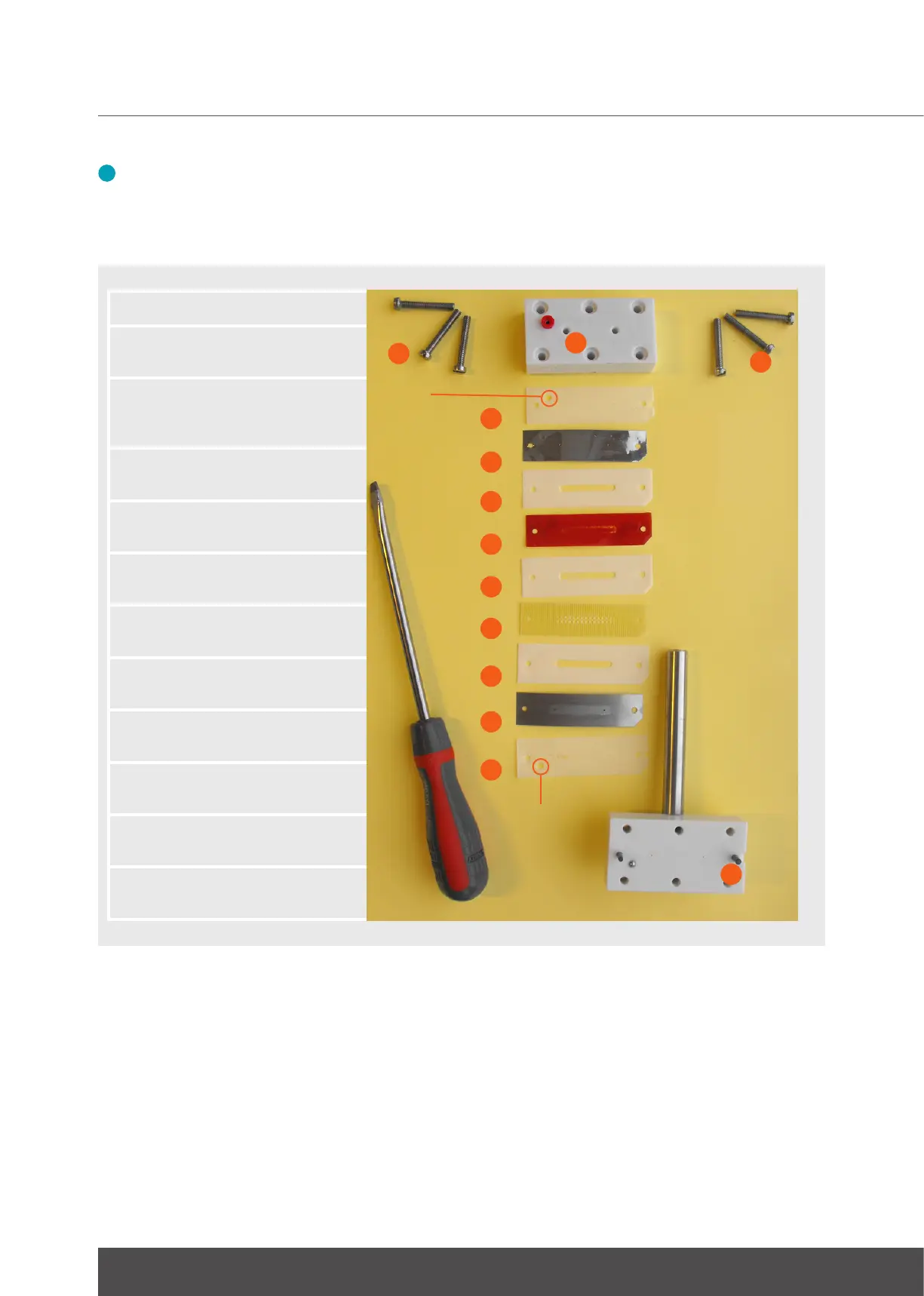

Fig 1. KOBRA
®
CELL Components
1
1
2
3
4
5
6
7
8
9
10
11
12
Contact
Area for
Electrodes
Contact
Area for
Electrodes
