rada V12 - Page 21

21
1145094-W2-D

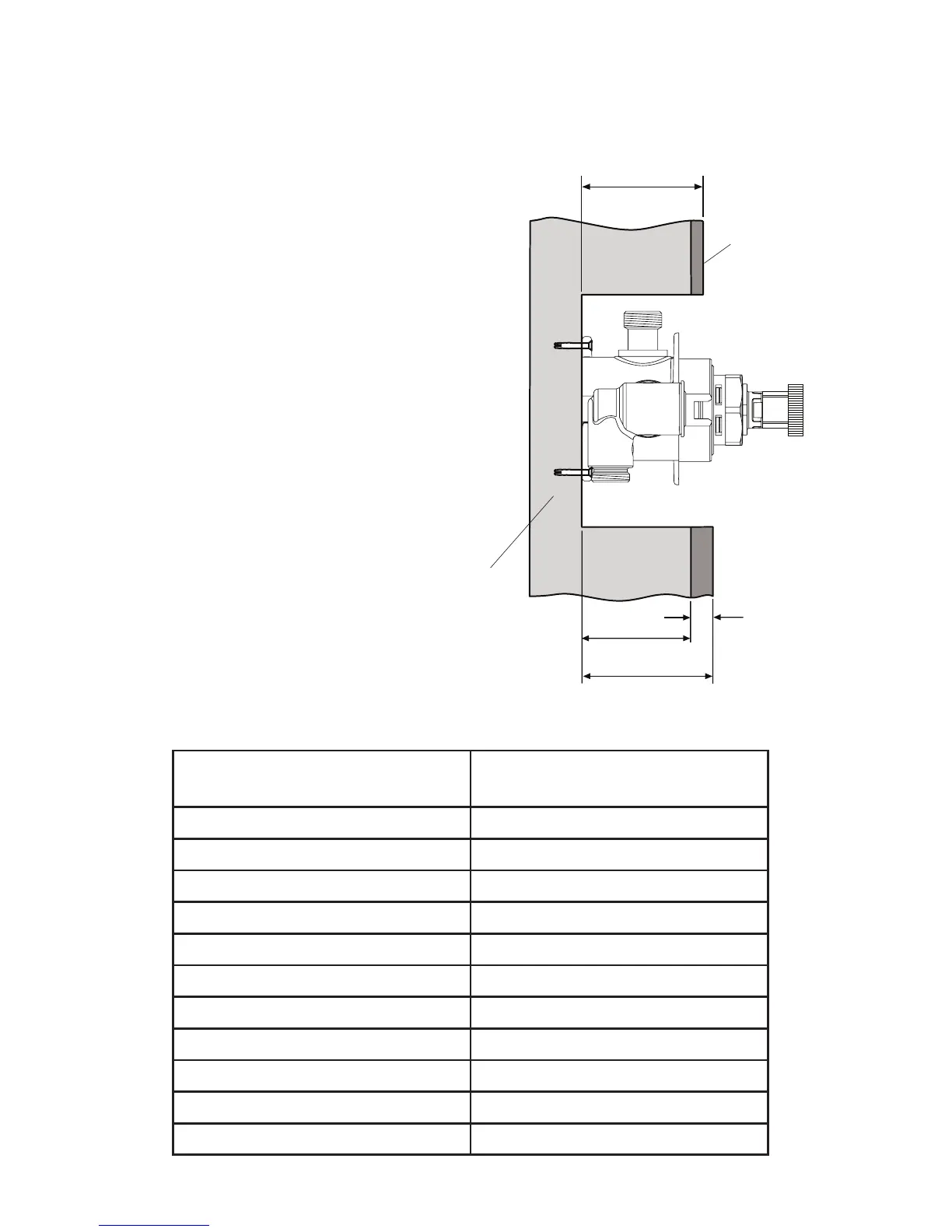

Solid Wall or Stud Partition
(Using Rear Fixing Points on the Thermostatic Mixer)
Finished Wall Thickness
(e.g. tile and adhesive)
Wall Cutout Depth ‘X’
4 mm 80 - 56 mm
6 mm 78 - 56 mm
8 mm 76 - 56 mm
10 mm 74 - 56 mm
12 mm 72 - 56 mm
14 mm 70 - 56 mm
16 mm 68 - 56 mm
18 mm 66 - 56 mm
20 mm 64 - 56 mm
22 mm 62 - 56 mm
24 mm 60 - 56 mm
Finished Wall
Surface
Finished Wall
Thickness
Depth ‘X’
Rear Mounting
1. Refer to section: ‘Solid Wall or Stud
Partition (Using Securing Brackets
- Mounting off Front Face of Wall)’
and follow steps 1. to 4.
2. Cut away the plasterboard and/or
brick work to the required depth.
Important! This depth ‘X’ will depend
on the nished wall thickness e.g. tiles
or facia board. Refer to the table for
this measurement.
For stud partitions depth ‘X’ refers to
the distance from the rear mounting
e.g. timber noggin, to the front of the
wall (before tiling).
Minimum Building-in
Depth 60 mm
Maximum Building-in
Depth 84 mm
