23
1145094-W2-D
M5 Fixing Hole
Chrome Trim
Securing Hole
Chrome Trim
Securing Hole
M5 Fixing Hole
Filter Plug
3. Carefully cut a hole in the laminated
panel to a diameter of 150 mm.
4. Fit the securing brackets to the mixer.
Important! The securing brackets
must be xed vertically.
Important! Make sure that the
correct holes are used, otherwise the
chrome trim cannot be tted.
5. Position the mixer on the front of the
panel, make sure that it is level and
central in the hole, then mark the
position of the M5 xing holes.
Important! Make sure that the correct
holes are used (refer to illustration).
6. Drill the two 5.5 mm holes for the
xing positions (countersink the holes
at the front).
7. Secure the mixer with the
M5 x 40 screws as shown.
8. Fit the hot and cold supply pipes
(hot - left, cold - right) and tighten
the compression nuts.
Falling Supplies: For falling supplies
loosen the grubscrew on each elbow
using the 2.5 mm hexagon key
(supplied). Remove the elbows and
install on opposite sides. Retighten
the grubscrews.
Caution! Make sure that the olives
are tted and all pipework is ushed
through before connecting to the
mixer.

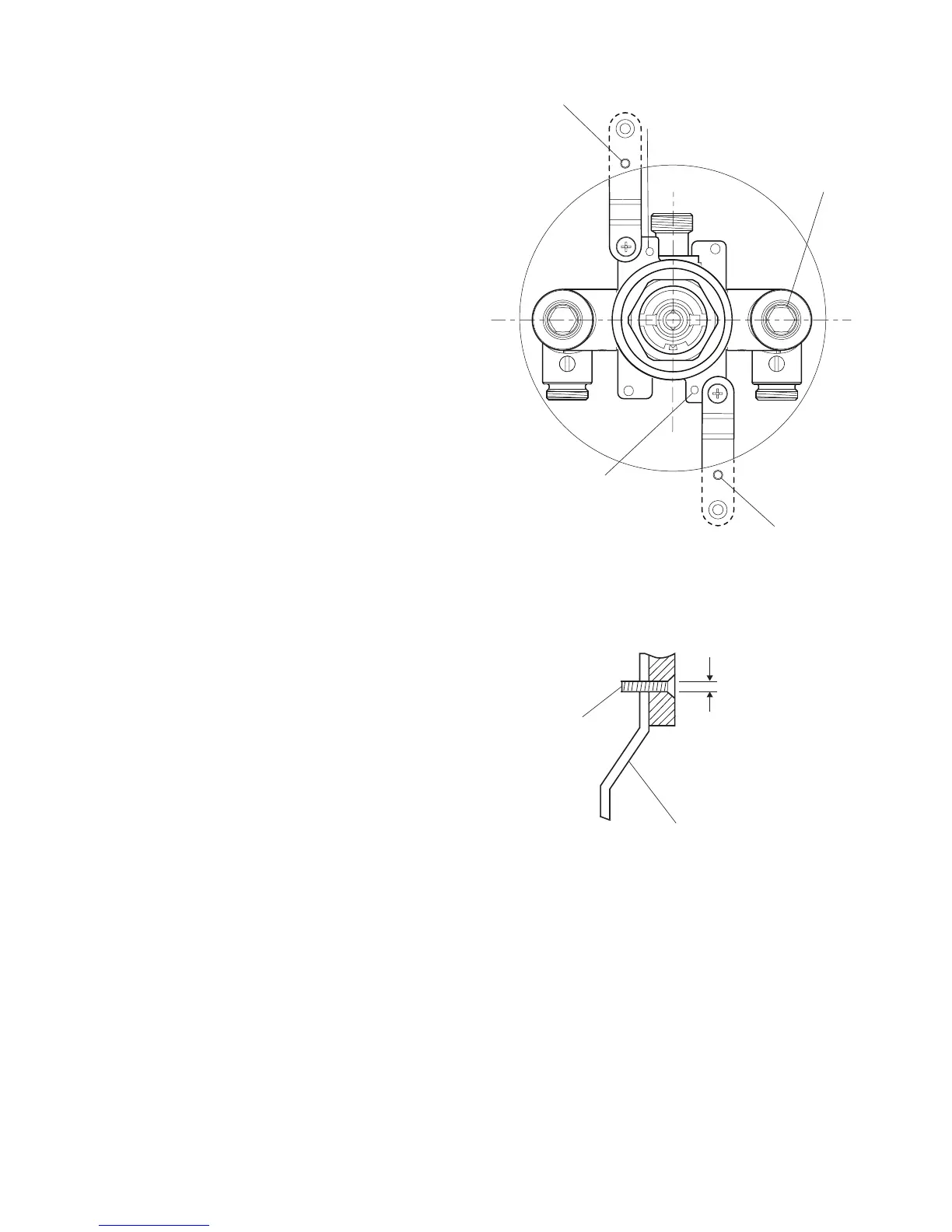

Securing Bracket
M5 x 40 mm
Fixing Screw
Ø 5.5 mm Hole
