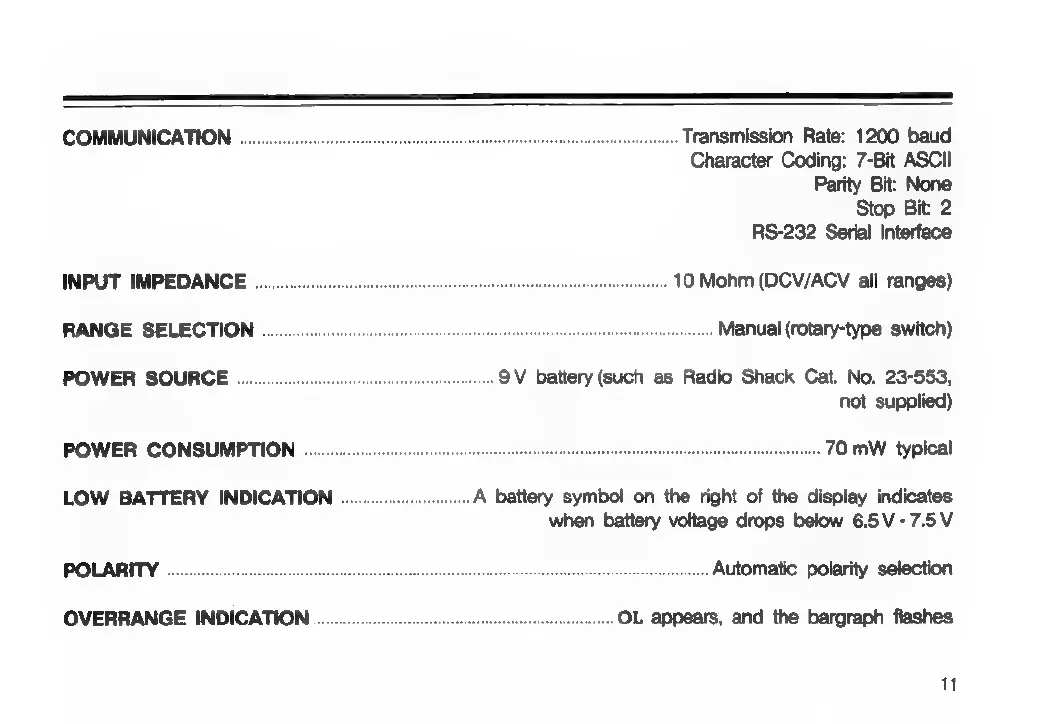

Radio Shack 22-168A User Manual

SNe EEE!
COMMUNICATION ........:cccccssssssseesnsenneeeneen .... Transmission Rate: 1200 baud
Character Coding: 7-Bit ASCII
Parity Bit: None
Stop Bit: 2
RS-232 Serial Interface
INPUT IMPEDANCE ............:cscsssscsssssssseesunsnimssennsaeesuseseiusstouseenaneeenneeeennee 10 Mohm (DCV/ACV all ranges)
RANGE SELECTION ................ inctnantoty 1 oe sss Manual (rotary-type switch)
POWER SOURCE ou... sussussses 9 V battery (such as Radio Shack Cat. No. 23-553,
not supplied)
POWER CONSUMPTION .........::cccccsssssssssssssssessesensesseeeeeenennee .. 70 mW typical
LOW BATTERY INDICATION ..........00000:00.A battery symbol on the right of the display indicates
when battery voltage drops below 6.5V-7.5V
POLARITY sssceesssssessesseenseesetneeene ...... Automatic polarity selection
OVERRANGE INDICATION ............... OL appears, and the bargraph flashes
"1

Radio Shack 22-168A Specifications

General

Brand	Radio Shack
Model	22-168A
Category	Multimeter
Language	English
