is connected to the diode’s cathode, This meter
supplies enough forward voltage to light most
LEDs. However, if the LED's forward voltage is
greater than 2.0 volts, the meter incorrectly indi-
cates that the device is open.

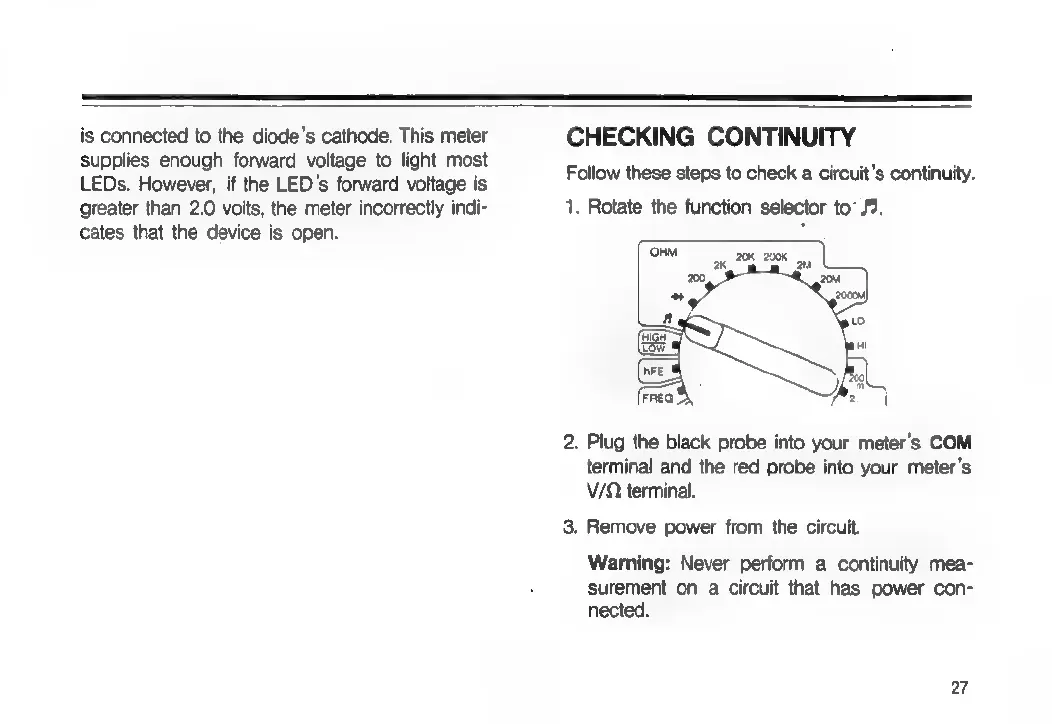

CHECKING CONTINUITY
Follow these steps to check a circuit’s continuity.
1. Rotate the function selector to” 4.
2. Plug the black probe into your meter’s COM
terminal and the red probe into your meter’s
V/Q. terminal.
3. Remove power from the circuit.
Warning: Never perform a continuity mea-
surement on a circuit that has power con-
nected.
