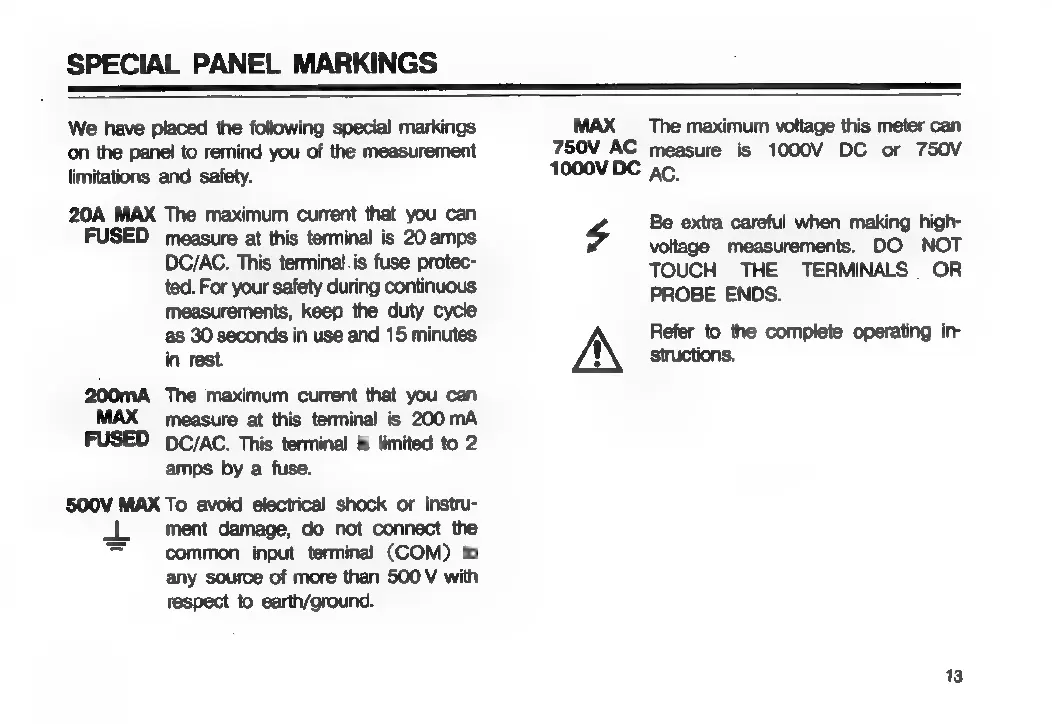

SPECIAL PANEL MARKINGS
We have placed the following special markings
‘on the panel to remind you of the measurement
limitations and safety.
20A MAX The maximum current that you can
FUSED measure at this terminal is 20 amps
DC/AC. This terminal.is fuse protec-
ted. For your safety during continuous
measurements, keep the duty cycle
as 30 seconds in use and 15 minutes
in rest.
200mA The maximum current that you can
MAX measure at this terminal is 200 mA
FUSED DC/AC. This terminal is limited to 2
amps by a fuse.
500V MAX To avoid electrical shock or instru-
4. ment damage, do not connect the
‘= common input terminal (COM) to
any source of more than 500 V with
respect to earth/ground.
MAX
The maximum voltage this meter can
750V AC measure is 1000V DC or 750V
1000V DC ac.
4
A
Be extra careful when making high-
voltage measurements. DO NOT
TOUCH THE TERMINALS OR
PROBE ENDS.
Refer to the complete operating in-
structions.
13
