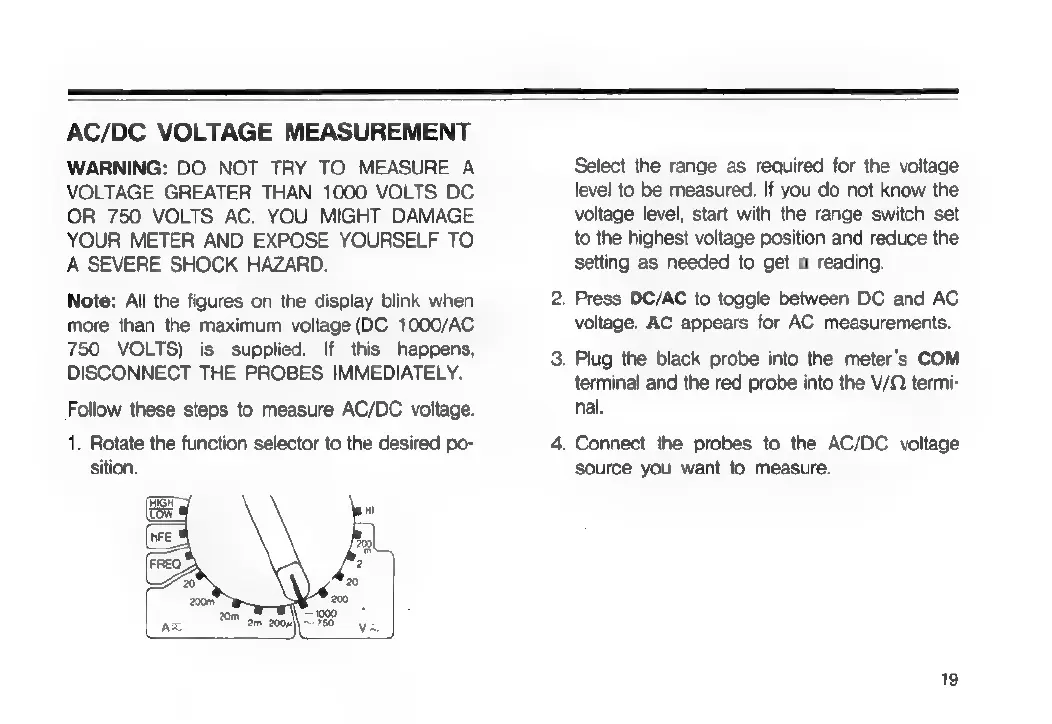

AC/DC VOLTAGE MEASUREMENT
WARNING: DO NOT TRY TO MEASURE A
VOLTAGE GREATER THAN 1000 VOLTS DC
OR 750 VOLTS AC. YOU MIGHT DAMAGE
YOUR METER AND EXPOSE YOURSELF TO
A SEVERE SHOCK HAZARD.
Note: All the figures on the display blink when
more than the maximum voltage (DC 1000/AC
750 VOLTS) is supplied. If this happens,
DISCONNECT THE PROBES IMMEDIATELY.
Follow these steps to measure AC/DC voltage.
1. Rotate the function selector to the desired po-
sition.
Select the range as required for the voltage
level to be measured. If you do not know the
voltage level, start with the range switch set
to the highest voltage position and reduce the
setting as needed to get a reading.
. Press DC/AC to toggle between DC and AC
voltage. AC appears for AC measurements.
. Plug the black probe into the meter's COM
terminal and the red probe into the V/N. termi-
nal.
. Connect the probes to the AC/DC voltage
source you want to measure.
