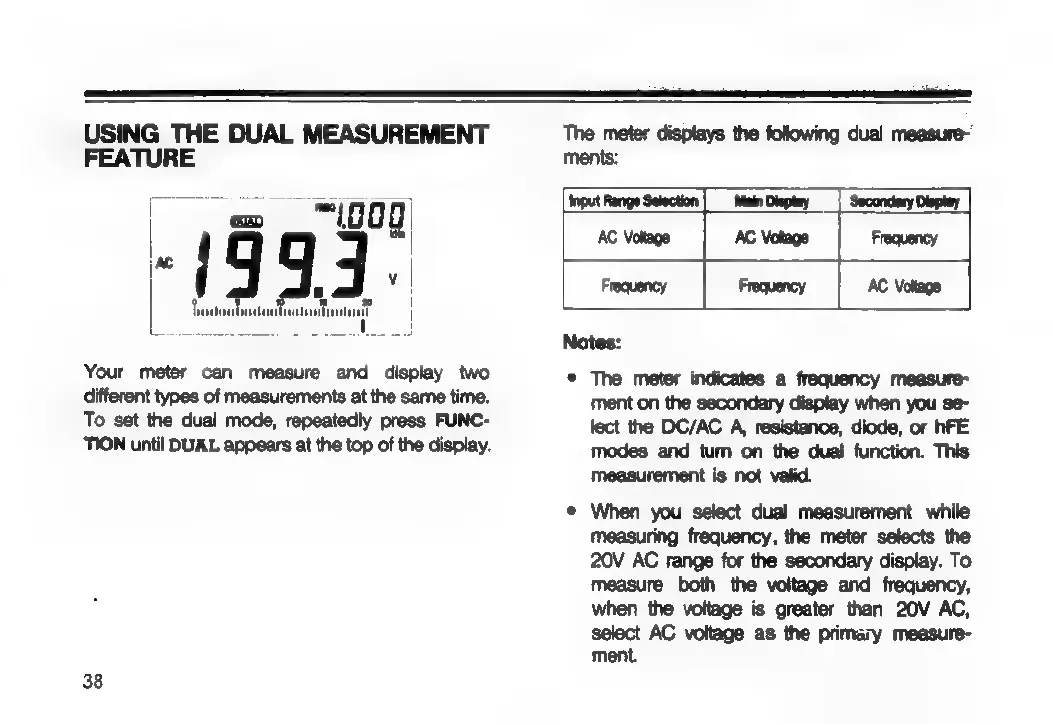

USING THE DUAL MEASUREMENT
FEATURE
“(009
-1993-
| Basnantantiatontod?
Your meter can measure and display two
different types of measurements at the same time.
To set the dual mode, repeatedly press FUNC-
TION until DUAL appears at the top of the display.
38
The meter displays the following dual measure-
ments:
Input Range Selection | Main Display | Secondary Display
AC Voltage AC Voltage Frequency
Frequency Frequency AC Voltage
Notes:
© The meter indicates a frequency measure-
ment on the secondary display when you se-
lect the DC/AC A, resistance, diode, or hFE
modes and tum on the dual function. This
measurement is not valid.
* When you select dual measurement while
measuring frequency, the meter selects the
20V AC range for the secondary display. To
measure both the voltage and frequency,
when the voltage is greater than 20V AC,
select AC voltage as the primaiy measure-
ment.
