RD400PDL-2/PXL-2 User Guide
Locator Use

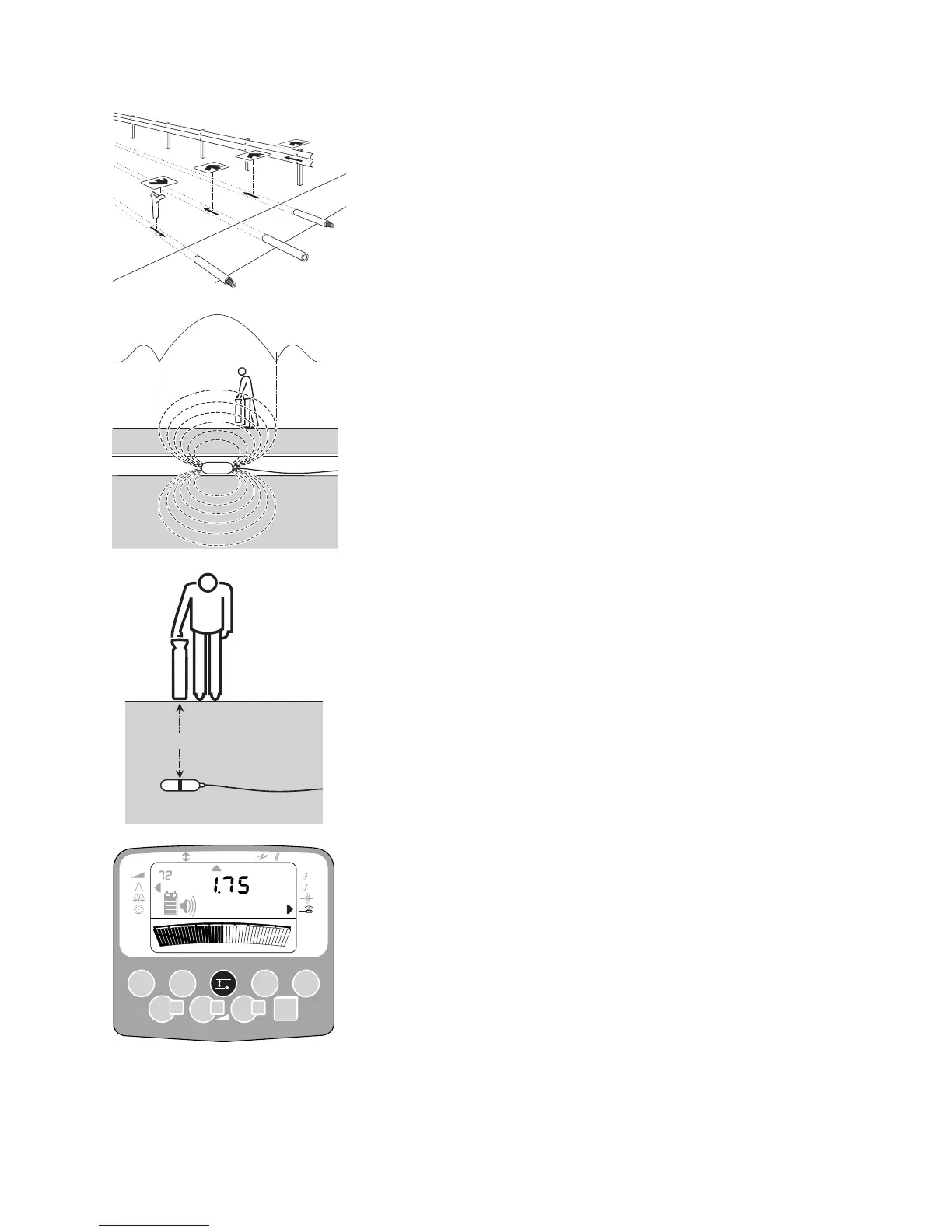

CD - Read (RD400PDL-2 only)
The current direction of a line can be verified by
using conductors to which the signal has coupled
such as a railway line, a continuous metal fence or
a highway crash barrier.
The CD arrows will show a reverse current
direction, with respect to the target line, on these
conductors.
Pinpointing a Sonde
Select Sonde and Peak modes, set Receiver to
Sonde frequency.
Holding Receiver blade vertically and IN LINE with
Sonde, move from side to side to obtain a Peak
response.
Note: Ghost peaks will be found either side of
main Peak response.
Move Receiver backwards and forwards to obtain
a second Peak response.
Rotate Receiver clockwise and anticlockwise to
obtain a third Peak response.
The Receiver is now directly over and in line with
Sonde.
Pinpoint and mark at regular intervals.
Depth Reading to a Sonde
Pinpoint the Sonde.
Hold Receiver vertically with blade resting on the
ground.
Ensure Sonde mode is selected.
Press the Depth key. Depth reading is displayed
for a few seconds.
Peak
Ghost Ghost
d
83365
Lf
1
2
m
