Radiodetection RD400PXL-2 User Manual

RD400PDL-2/PXL-2 User Guide
RD433HCTX-2 Transmitter

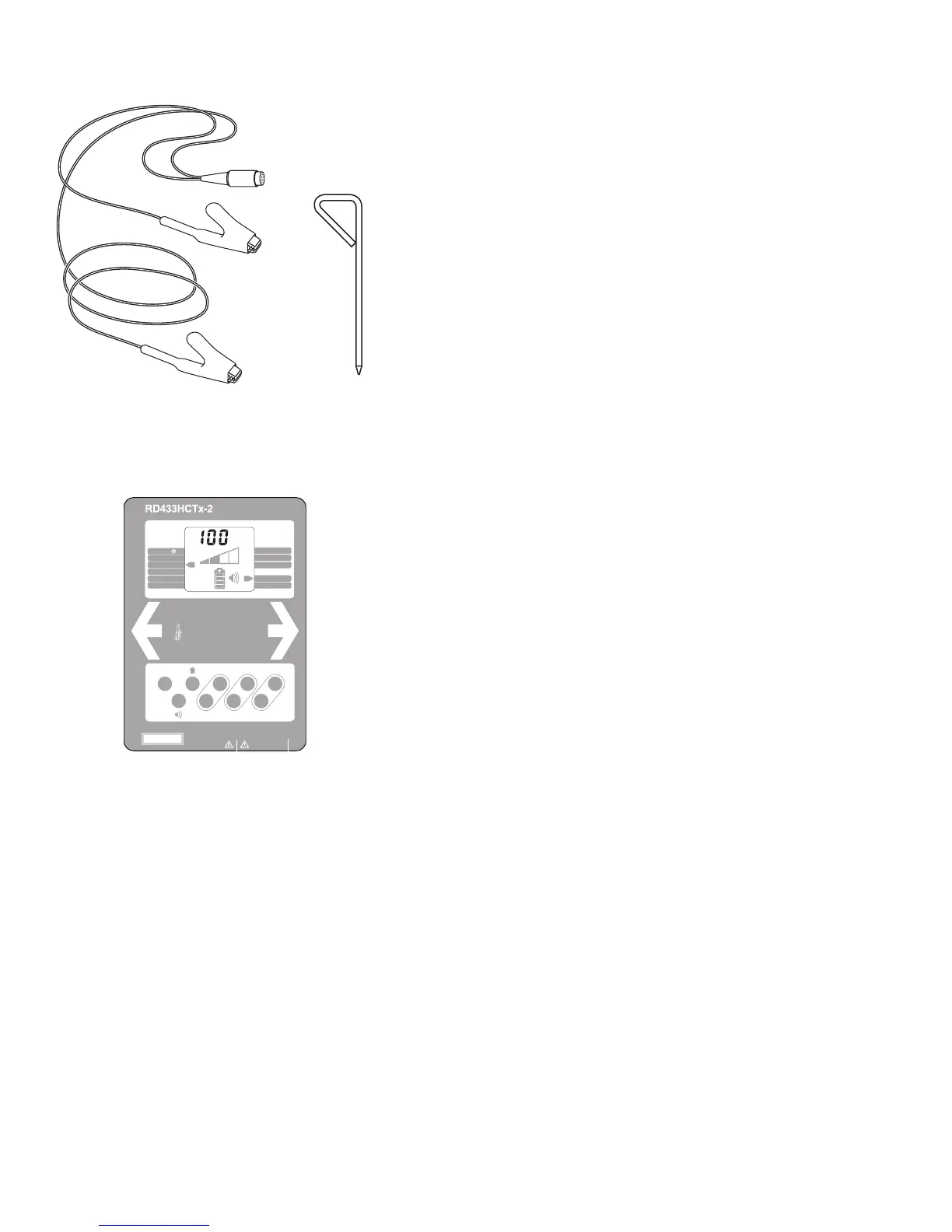

Connection Cable
Red cable connects the Transmitter signal directly
to a target line. Black cable provides the ground
return via Ground Stake.
Ground Stake
Ground Stake is for making a ground connection
to provide a return signal.
Live Cable Warning
Connection to a cable carrying a voltage
exceeding 55V causes an audio alarm to sound
and voltage is displayed on the LCD. To reset
alarm press Speaker key.
24V Direct Connection Warning
Some telecom lines cannot allow line voltages
which exceed 24V to be placed on them. To cater
for these lines refer to the Up and Down key
options.
black
earth
red
live
On/Off A-V-O
Up
Line Select
Mode
Down
FF Normal
FF Boost
Connect 24V
Connect 50V
Connect Fuse
Lf
8k
33k
65k
User Hz
01/MH1054L1ENG/2
Multi
kΩHz
mAV
Radiodetection Corp.
PO Box 623
Ridgewood, NJ07451, USA
Serial No.
Radiodetection
Radiodetection Ltd.
Western Drive
Bristol BS14 0AZ, UK
