RD400PDL-2/PXL-2 User Guide
Precision Locators

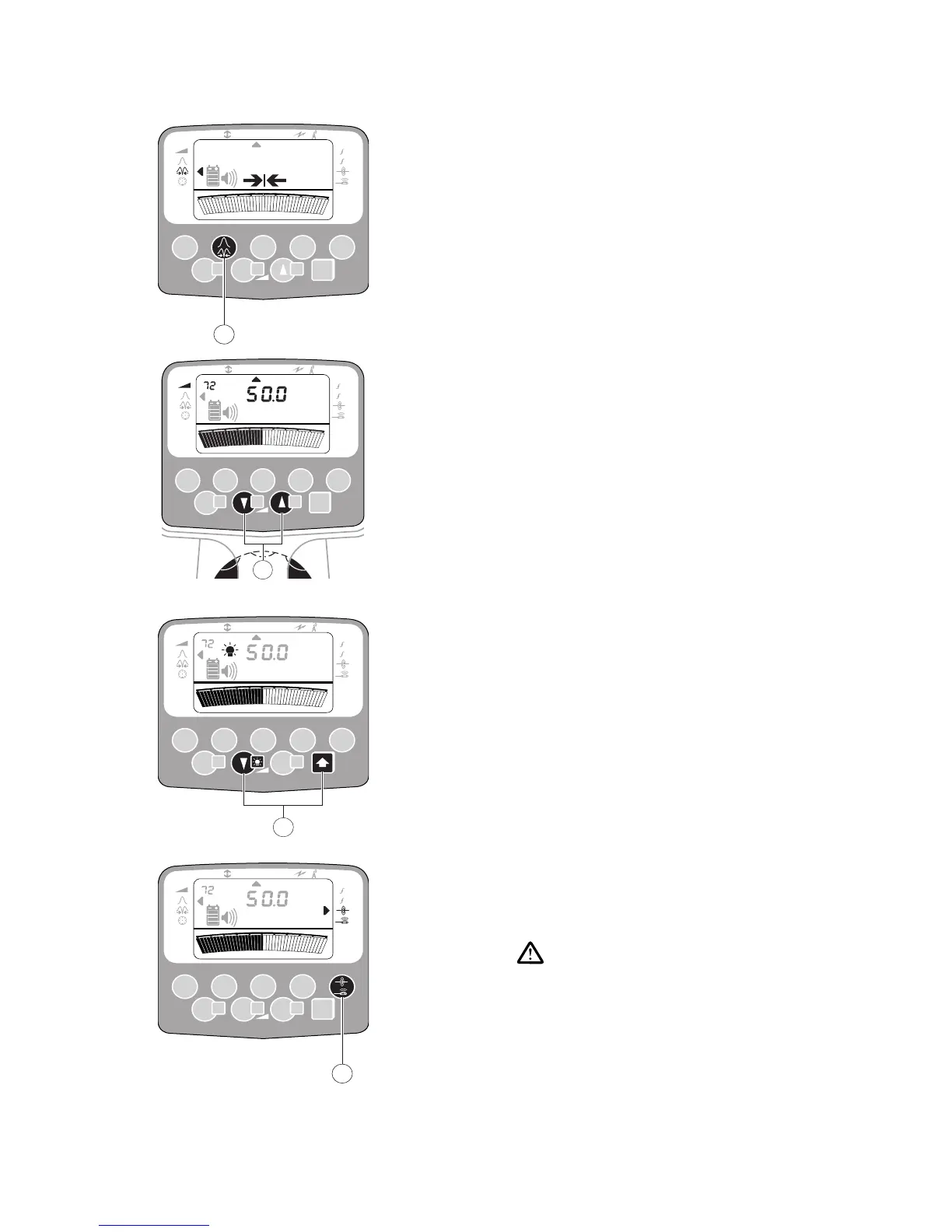

Left/Right Indication (8)
Indicates direction to target line in Null mode when
Receiver is used to locate with internal aerials or
A-Frame, except in Power mode.
Gain Down/Up (9)
Press either key (or operate touch gain control, if
fitted) to increase or decrease Receiver gain.
If bargraph indicates full scale press Down arrow
key to automatically reduce indication level.
A numeric representation of meter deflection
percentage is displayed above bargraph.
Actual Receiver gain level (0 to 100) is displayed
next to Gain symbol.
Backlight (10)
One press for On, further press for Off while Shift
key is held down.
Defaults to Off at switch on to conserve batteries.
Line/Sonde (11)
Press to select Line or Sonde mode. The pointer
indicates selection.
Warning
Failure to select appropriate Line/Sonde mode
will result in incorrect depth estimation.
