RD400PDL-2/PXL-2 User Guide
RD433HCTX-2 Transmitter

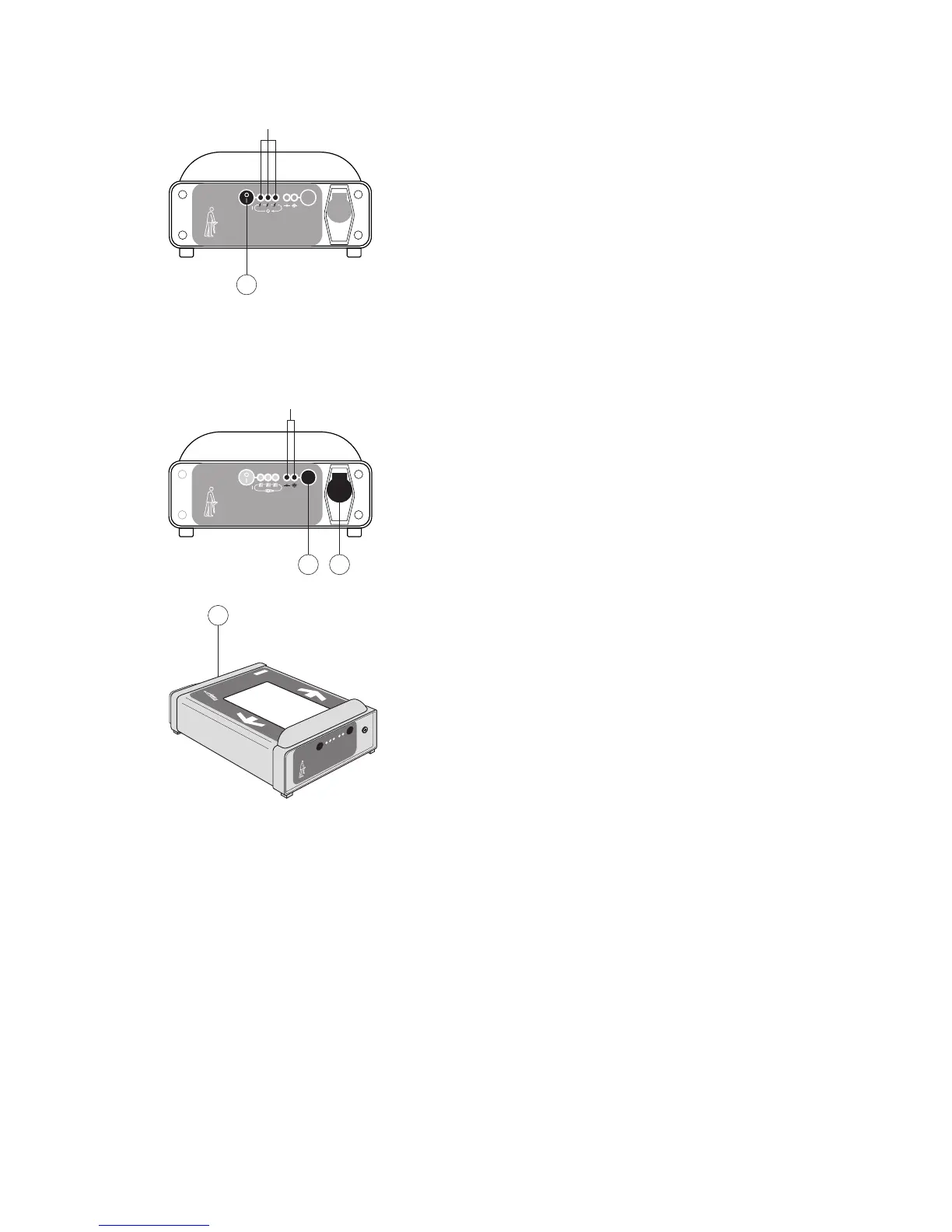

On/Off (1)
First press turns Transmitter On and selects first
frequency (not available in Induction mode).
Second press selects second frequency.
Third press selects third frequency.
Fourth press turns Transmitter Off.
LEDs indicate which frequency has been selected.
Arrows on the instruction label indicate the
required transmitter alignment for signal induction.
Power Select (2)
Selects either High or Low power level.
LEDs indicate which power level has been
selected.
Connection Socket (3)
Accepts Connection Cable or optional accessories
such as Signal Clamp, Live Cable Connector or
Live Plug Connector, which, when connected,
disables the Induction mode.
Batteries Access Panel (4)
No tone indicates that all batteries require
replacing.
Unscrew fastener and replace 4 x LR20 (D) cells.
Observe correct battery polarity as indicated on
instruction label.
Loudspeaker
Emits a pulsing tone to indicate an induction
output or satisfactory direct connection.
Continuous tone indicates induction not available
or bad connection.
Note: Tone pulses continuously in Low Frequency
mode.
RD400LCTx
01/LX1337L1INT/0
1
LED
321
RD400LCTx
01/LX1337L1INT/0
LED
2
3
32
1
RD400LCT
x
R
a
d
i
o
d
e
t
e
c
t
i
o
n
4
