RD400PDL-2/PXL-2 User Guide
Locator Use

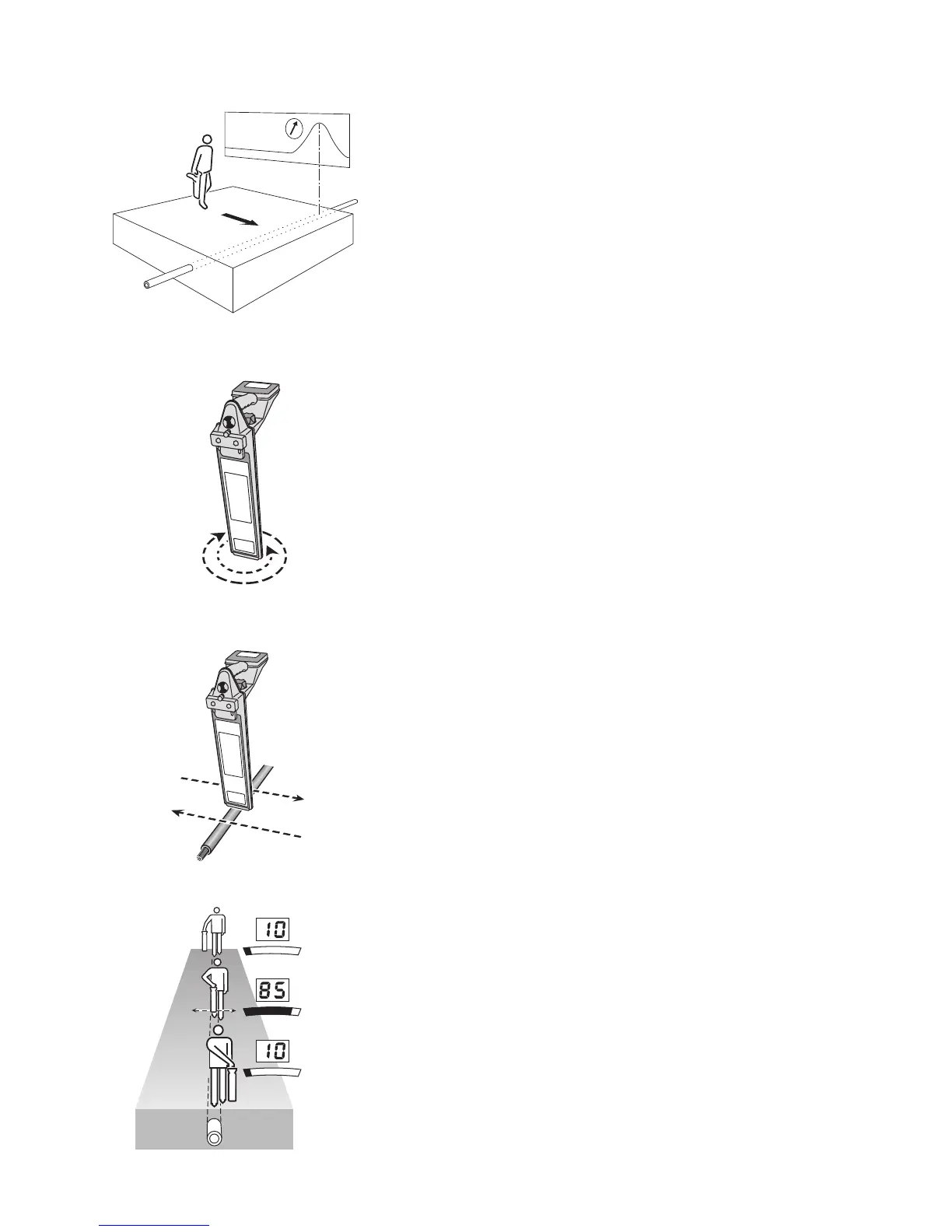

When a signal is detected continue along search
route until signal strength reduces, returning to
position where signal is strongest.
Pinpoint
Rotate Receiver through 90° until minimum signal
is detected.
Receiver blade is now in line with target line.
Rotate Receiver back through 90° so that blade is
again across target line.
Move Receiver side to side and observe maximum
response over centre of signal.
Receiver blade is now over target line and across it.
Moving Receiver steadily from side to side, follow
line of maximum response, keeping blade vertical
and across the target line.
