RD400PDL-2/PXL-2 User Guide
RD433HCTX-2 Transmitter

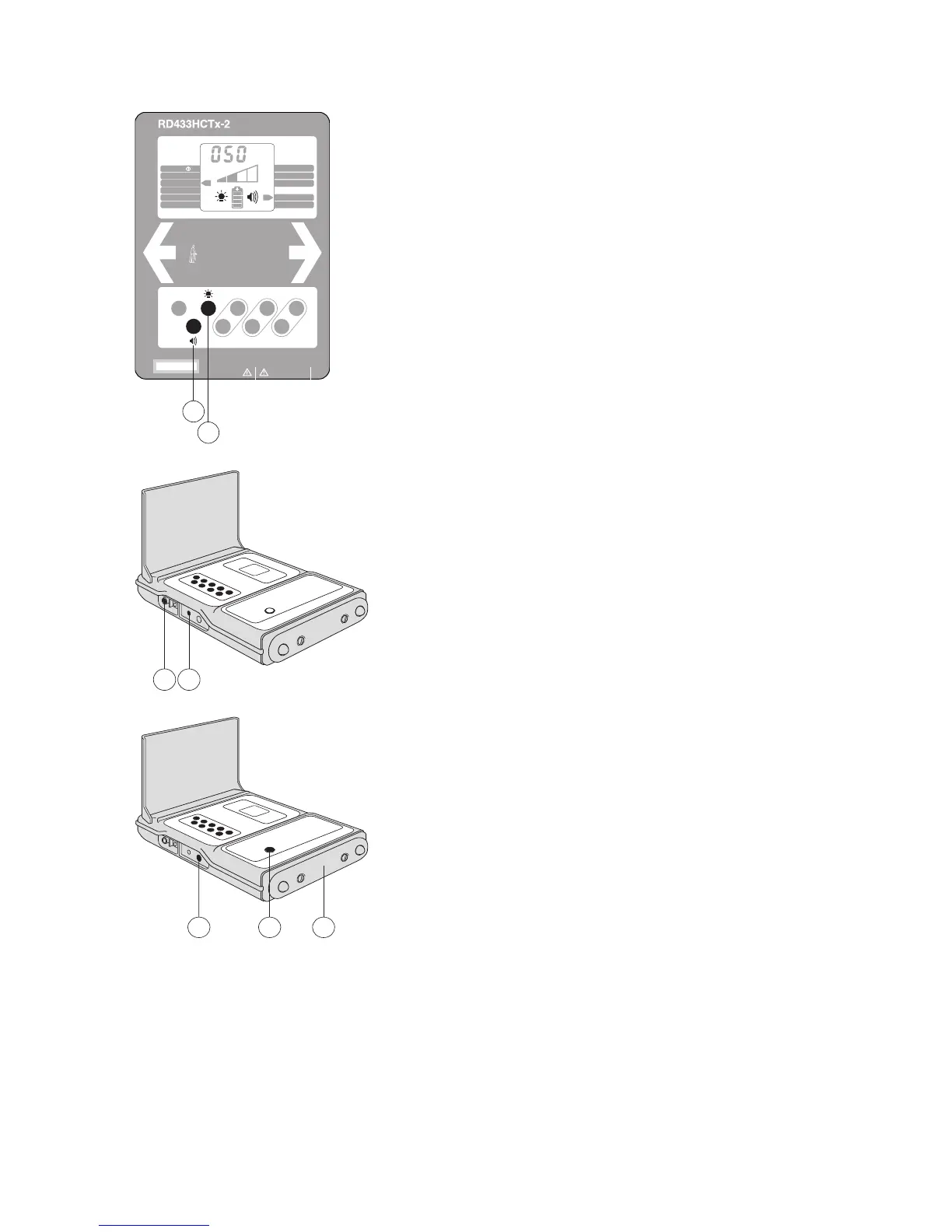

Speaker (9)
Press to adjust speaker level (Low, High or Off).
Backlight (10)
Turns Backlight On and Off.
12V Input Socket (11)
Optional input socket for external 12V supply (e.g.
car battery).
Connect Socket (12)
Socket which accepts Connection Cable or
options such as Signal Clamp, Live Cable
Connector or Live Plug Connector, which when
connected, disables the Induction mode.
Fuse (13)
1 A anti-surge 20 mm fuse. Unscrew fuse holder
for access. Replace only with fuse of same rating.
Security Tether Point (14)
Allows a chain etc. to be threaded through hole for
tethering the Transmitter to telecom pole or other
point for security.
Battery Access Cover (15)
Release the cover fasteners and replace 8 x
(LR20) D cells. Observe correct battery polarity as
indicated on instruction label.
On/Off A-V-O
Up
Line Select
Mode
Down
FF Normal
FF Boost
Connect 24V
Connect 50V
Connect Fuse
Lf
8k
33k
65k
User Hz
01/MH1054L1ENG/2
Multi
kΩHz
mAV
9
10
Radiodetection Corp.
PO Box 623
Ridgewood, NJ07451, USA
Serial No.
Radiodetection
Radiodetection Ltd.
Western Drive
Bristol BS14 0AZ, UK
RD433HCTx-2
RD433HCTx-2
1211
RD433HCTx-2
RD433HCTx-2
13 1514
