RD433HCTX-2 Transmitter

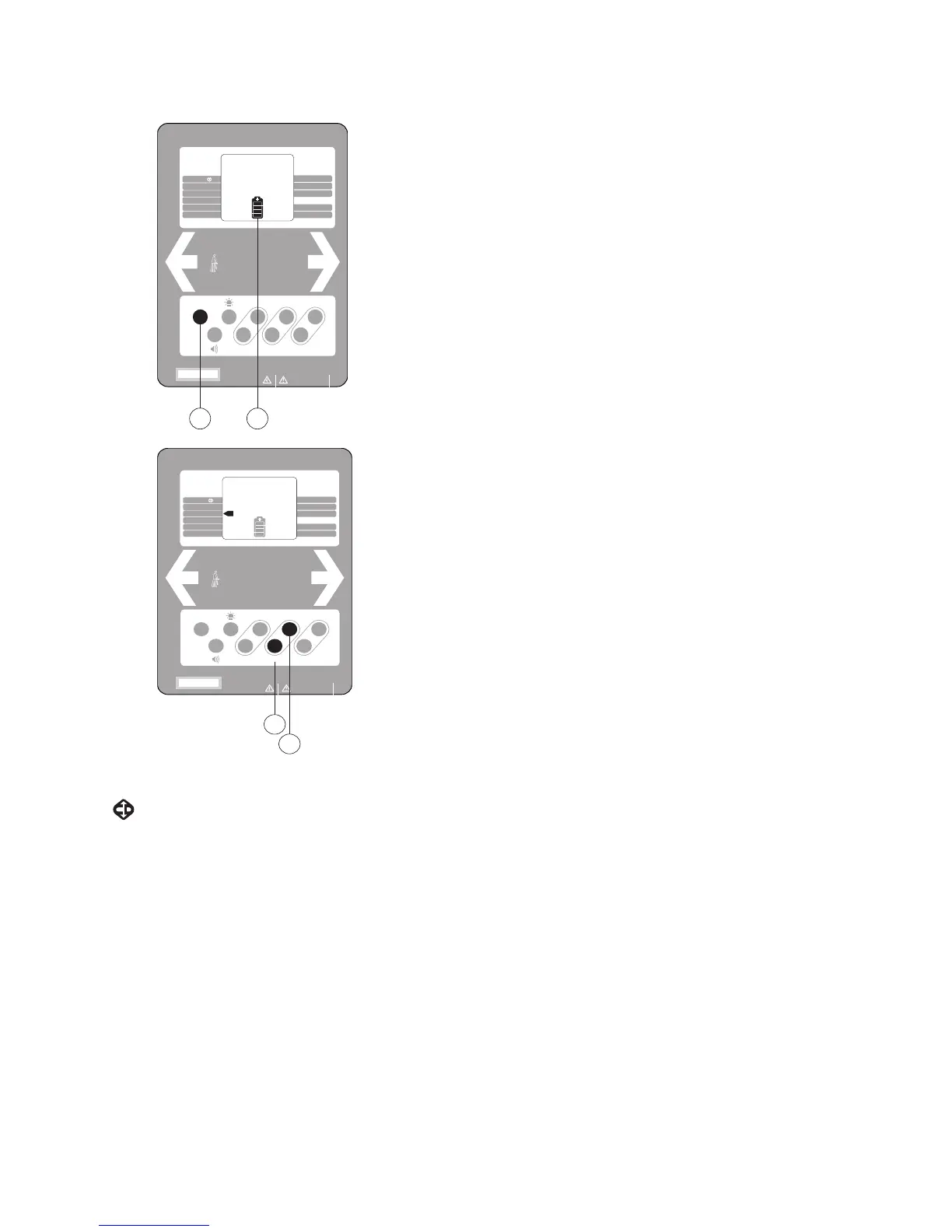

On/Off (1)
Turns the Transmitter On and Off.
Arrows on the main label indicate the required
transmitter alignment for signal induction.
Batteries (2)
Continuous battery state is displayed on LCD
during use. Low battery is indicated by flashing
battery symbol on LCD and output signal pulses
before switching transmitter off.
Select (3)
Selects the required mode. In User Hz mode
pressing the Select key once will momentarily
display the frequency selected.
Mode (4)
Moves the mode flag to the required mode where
it will flash until the Select key is pressed causing
the flag to become solid and the Transmitter to
provide an output.
Frequencies are:
Current Direction Direct Connection and CD Clamp only.
Lf Low Frequency Direct Connection and CD Clamp only.
8k 8kHz Induction and Direct Connection.
33k 33kHz Induction and Direct Connection.
65k 65kHz Induction and Direct Connection.
User Hz User defined Frequency Direct Connection only.
FF Normal Normal FaultFind Direct Connection only.
FF Boost Boost FaultFind Direct Connection only.
Multi Multi-Frequency Direct Connection only.
On/Off A-V-O
Up
Line Select
Mode
Down
FF Normal
FF Boost
Connect 24V
Connect 50V
Connect Fuse
Lf
8k
33k
65k
User Hz
