RADWAG AS R2 User Manual

- 73 -
Flash drive may be used for export/import of data stored in balances, or for carrying out
measurement data printout (set parameter P4.2.1 <DEVICES/PRINTER/PORT> to <PENDRIVE>
value). Measurement data printout operation is described in section 10.3 of this manual.
Please remember that for PCL printer the drivers print completely filled page, i.e. the page will be
printed only upon pressing PRINT button, located on a balance, for several times (it depends on a
printout size how many times the PRINT button shall be pressed prior printout).
It is possible to obtain printout upon pressing PRINT button once only, supposing that control code
<0C> has been set as SUFIX (for description of this function go to section 13.2 Printer).
USB port of type B is intended for:
• Connecting balance to a PC computer
In order to make connection of balance and computer possible, it is necessary to install virtual COM
port in a computer.
To carry out this procedure, the user needs a respective driver installer which may be either
downloaded from www.radwag.com
website or taken from a CD with manuals: R X2 SERIES
RADWAG USB DRIVER x.x.x.exe.

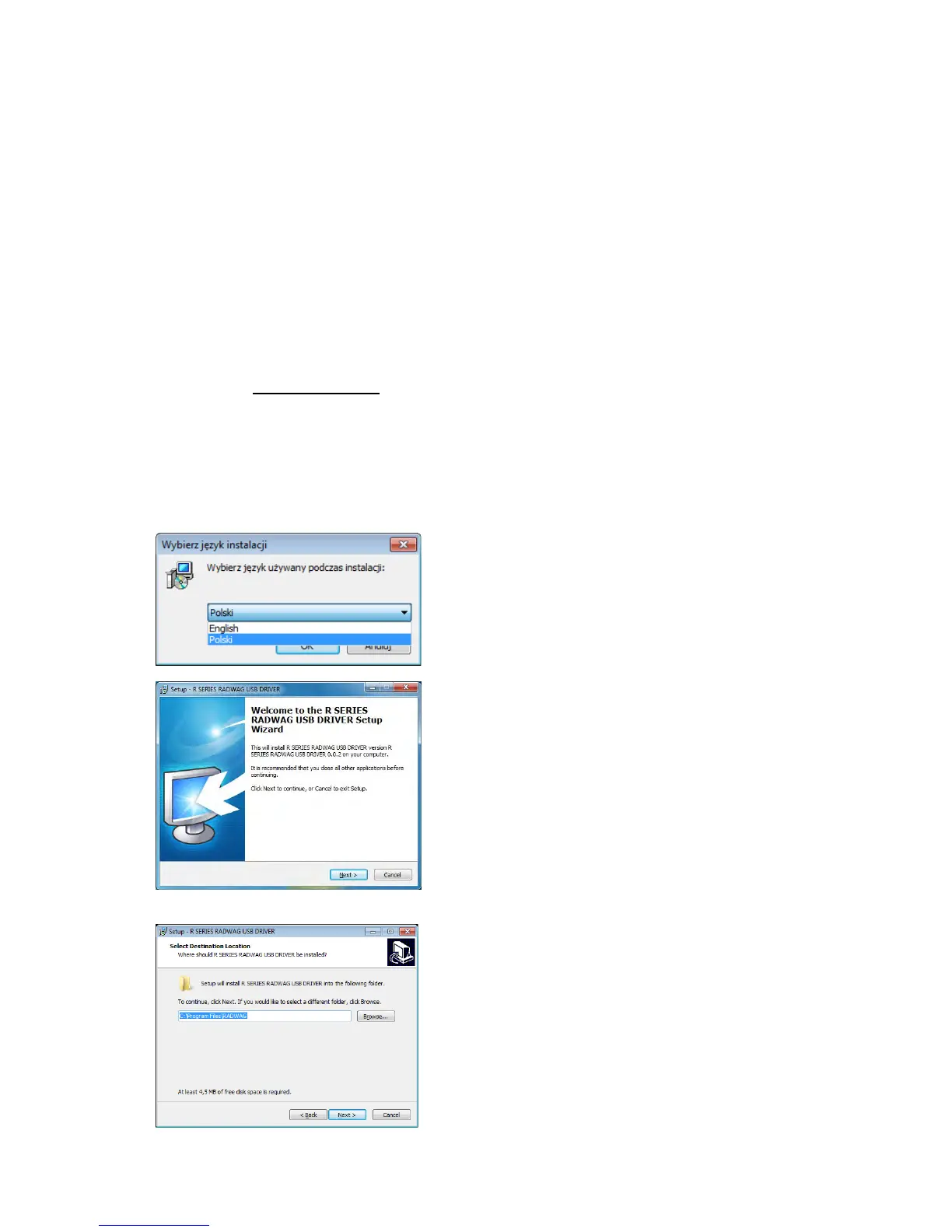

Steps:
1.
Run driver installer
Startup dialog window:
Select language version.
In order to continue, press „Next” button.
Window for target folder selection:
Select a respective folder and click „Next”
key to
proceed.

RADWAG AS R2 Specifications

General

Readability	0.1 mg
Display	LCD (backlit)
Tare Range	-220 g
Linearity	±0.2 mg
Protection Class	IP43
Calibration	Internal
Interface	RS232, USB-A, USB-B
Power Supply	100 ÷ 240 V AC 50 / 60 Hz
Maximum Capacity	up to 220 g
