RADWAG AS R2 User Manual

- 74 -

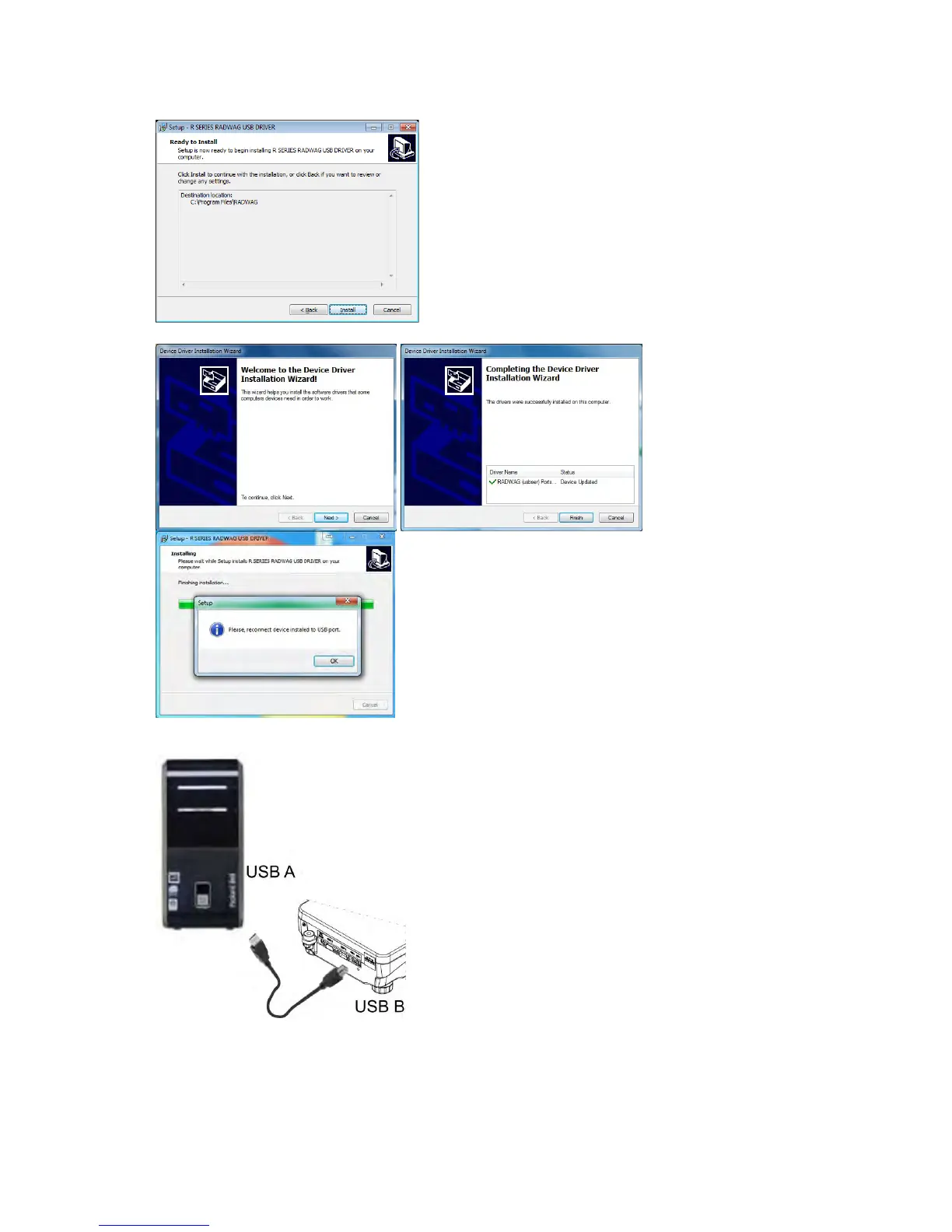

“Ready to Install” window:
In order to run installation process, press „Install” key
and clicking respective keys, follow the install wizard.
2.
Having completed driver installation, connect balance
to a computer, use 1,8-
meter long USB A/B cable
maximally (in case of already connected balance, it is
necessary to disconnect it and using USB cable
connect the balance again).
3.
The system detects the new USB device and automatically starts searching a respective driver

RADWAG AS R2 Specifications

General

Readability	0.1 mg
Display	LCD (backlit)
Tare Range	-220 g
Linearity	±0.2 mg
Protection Class	IP43
Calibration	Internal
Interface	RS232, USB-A, USB-B
Power Supply	100 ÷ 240 V AC 50 / 60 Hz
Maximum Capacity	up to 220 g
