RADWAG PUE H315

13

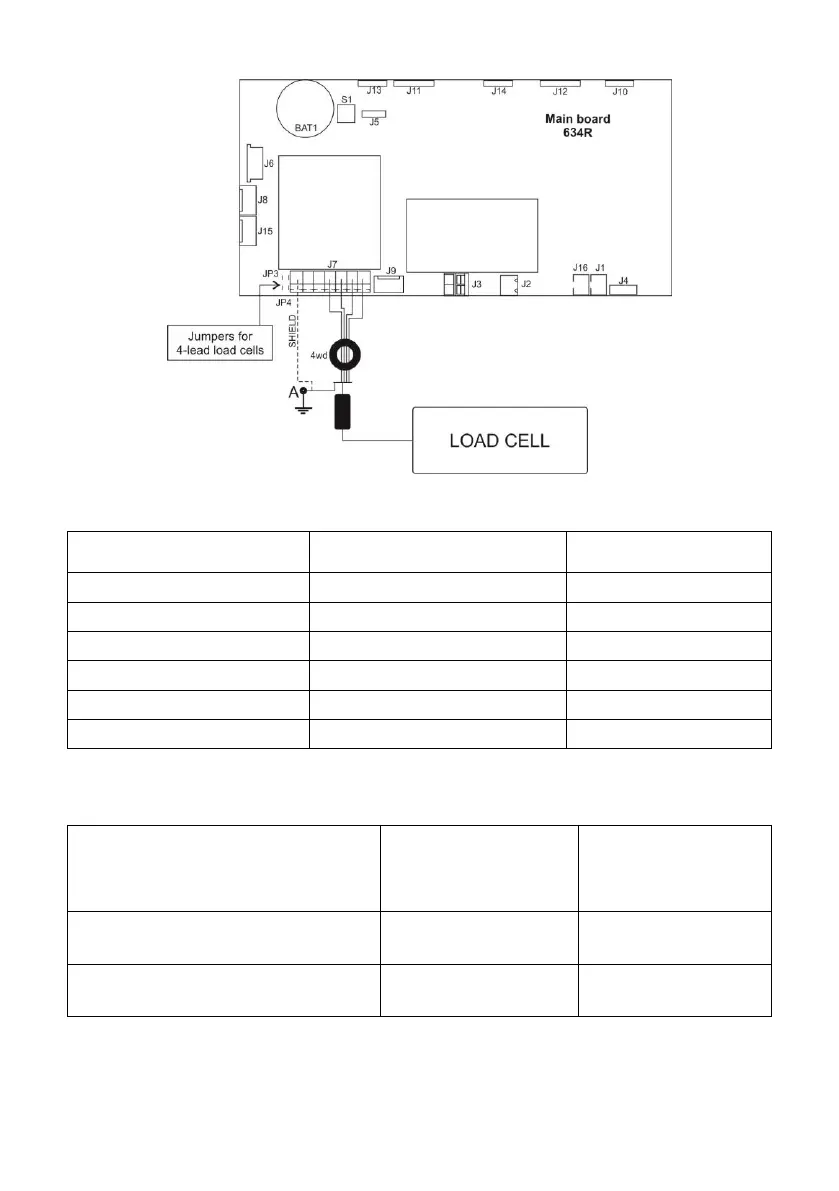

Connecting 4-wire load cells
J7 Load cell socket
Load cell signals
NOTES
REF+
SENSE +
JP3 soldered
REF-
SENSE -
JP4 soldered
IN+
OUTPUT+
IN-
OUTPUT-
+5V
INPUT+
AGND
INPUT-
7.3. Connecting Load Cell’s Cable Shield
Platforms connected to
indicators in metal
housing via a cable only
Platforms electrically
connected to indicators’
metal housings e.g.
pillars, racks
Load cells with internal shield connection
to the load cell body
POINT A
POINT A
Load cells without internal shield
connection to the load cell body
POINT A
E
E – Solder pad on the main board and on additional A/D converter boards.
