Rain Bird ESP-RZXe Installation Guide And Operation Manual

12
Options and Special Features

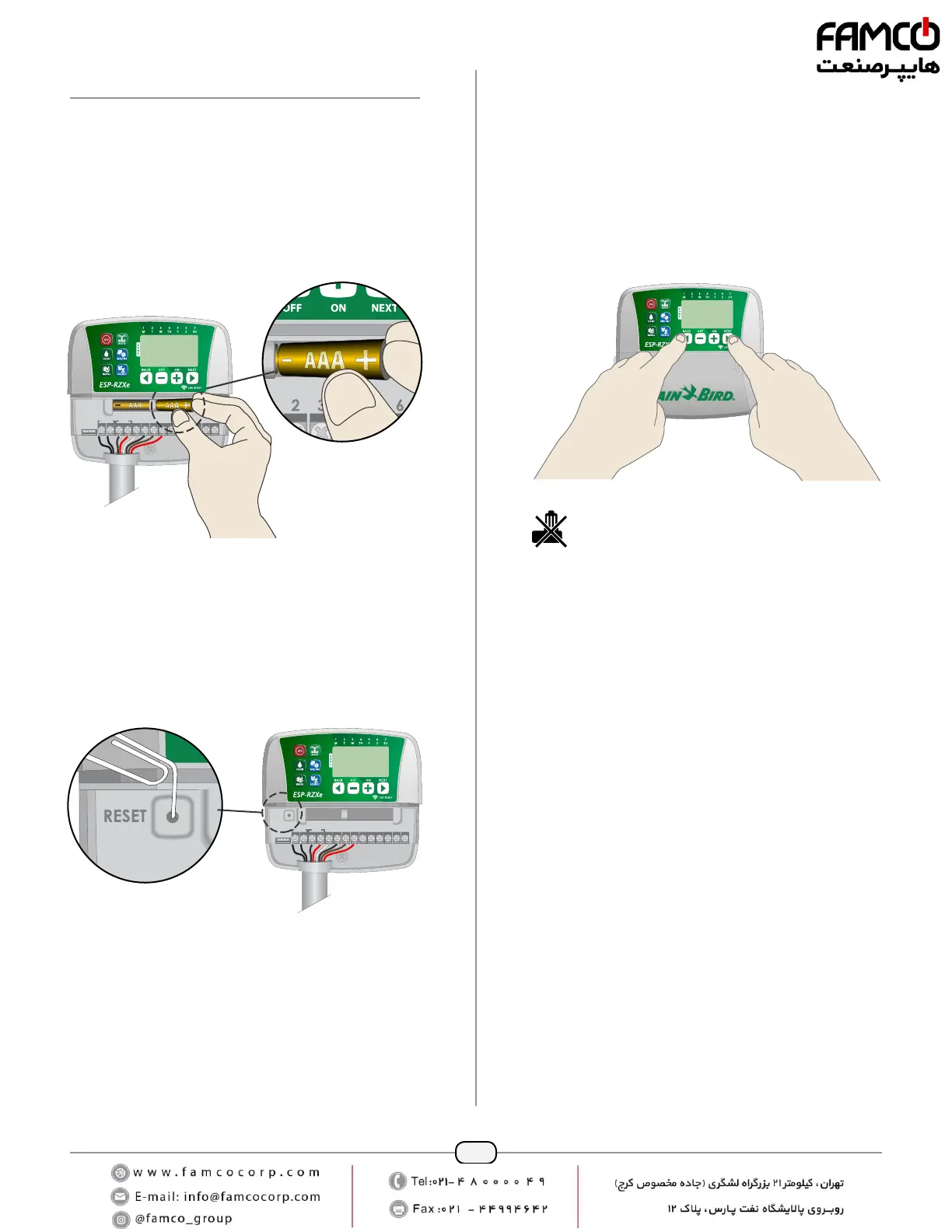

Install Batteries
The ESP-RZXe can keep Date and Time if batteries are
installed for backup.

NOTE: Your programming is stored in Non-Volatile
memory and will remain in the controller even if bat-
teries are not installed.
 Insert two AAA batteries into the battery slot above
the terminal block, as shown below.
REMOTE
24VAC SENS
12345678CM
ACCESSORY
Reset Button
If the controller is not working properly, you can try
pressing RESET.

NOTE: All previously programmed watering sched-
ules will remain stored in memory, but the current
Date/Time will need to be set again.
 Insert a small tool such as a paper clip, into the access
hole and press until the controller is reset.
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
Rain Sensor Bypass
The controller can be set manually to either OBEY or
IGNORE a Rain Sensor.

NOTE: Rain Sensor Bypass settings cannot be
changed while the controller is irrigating.
Set Bypass for All Zones
 Press the AUTO key.
 Press and release both BACK and NEXT keys at the
same time to toggle between OBEY and IGNORE.
The NO RAIN SENSOR symbol will show on the dis-
play when IGNORE is selected.

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
