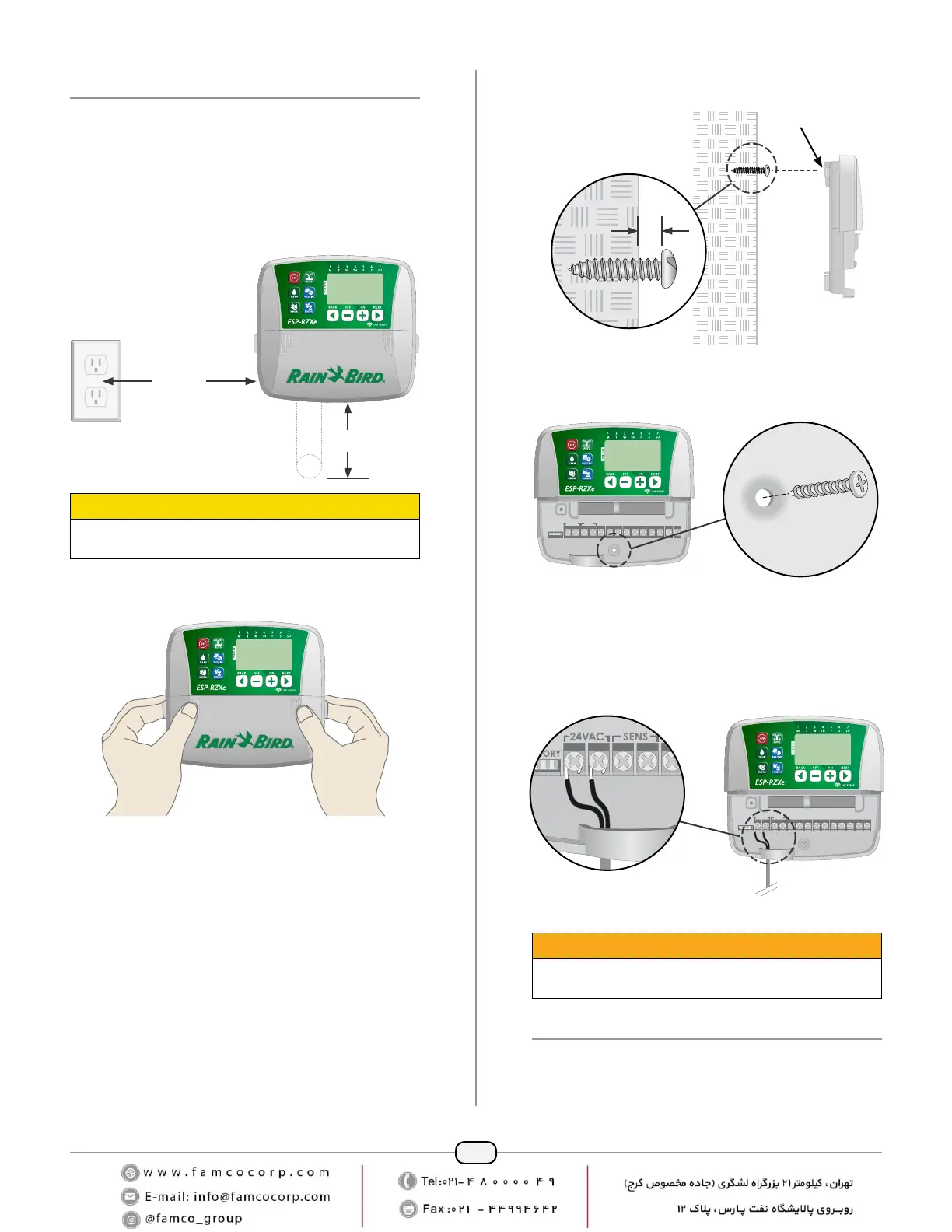

7
Installation
Indoor Model
Mount Controller
Choose a suitable mounting location on an indoor
wall within 6 feet (1.8 meters) of a grounded electrical
outet. Allow clearance for conduit connections below
the unit
CAUTION
DO NOT use an outlet that is controlled by a secondary
ON/OFF light switch or GFI outlet.
Grasp the two handles on either side of the wiring
bay cover and pull it towards you to remove it.
Drive a mounting screw into the wall. Leave an 1/8
inch gap between the screw head and the wall sur-
face.
NOTE: If necesssary, use the provided anchors to
assure that screws can be tightened securely.
Locate the keyhole slot on back of the controller unit
and hang the unit securely on the mounting screw.
KEYHOLE
Drive a second mounting screw through the open
hole inside the wiring bay and into the wall. Verify
that the unit is fastened securely to the wall.
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
Connect Power
Route the transformer power cord through the con-
duit opening at the bottom of the unit.
Connect the two end wires on the power cord to the
two 24VAC terminal connections on the controller.
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
Plug the transformer into the electrical outlet.
WARNING
DO NOT plug in the transformer until you have com-
pleted and checked all wiring connections.
6 FEET
MAX.
3 IN.
1/8 IN.
