Rain Bird ESP-RZXe Installation Guide And Operation Manual

3
 Press
+
or
–
to set the hour (ensuring that AM/PM
setting is correct); then press NEXT to select and set
the minutes.
MD
YYYY
AM
TIME

NOTE: Two AAA batteries can be installed to retain
date and time in the event of a power outage. See
“Install Batteries” for details.

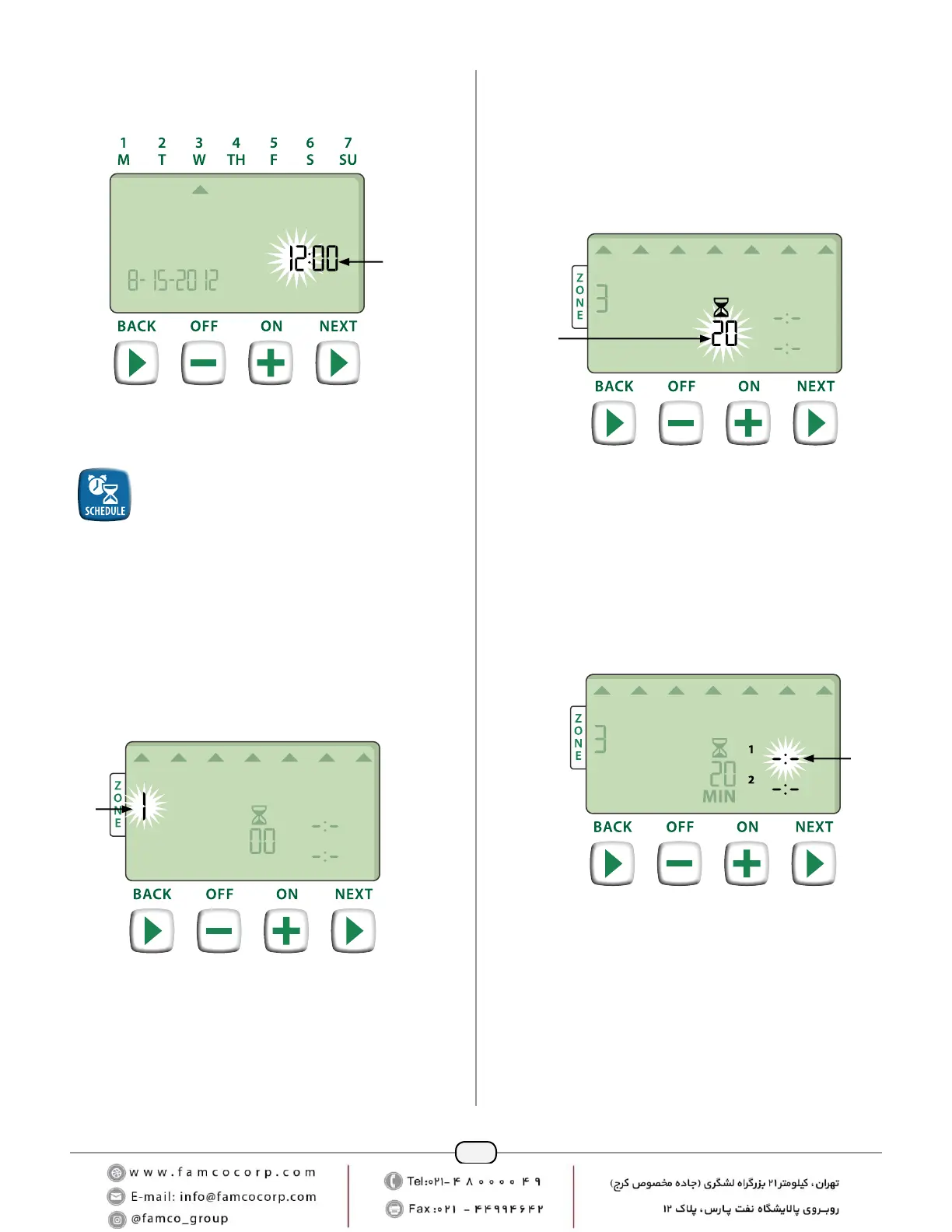

Zone Schedule
Create customized irrigation schedules to run automat-
ically at specific times, durations and intervals.
 Press the ZONE SCHEDULE key.
1
Select Zone
Zones are designated areas (for example, “Rose Gar-
den”) that you define as locations for watering. See
“Programming Chart” for details.
 Press
+
or
–
to select the desired Zone Number;
then press NEXT.
1
2
MIN
Zone
2
Set Watering Run Times
Watering Run Times are durations (for example, 20
minutes) set for watering.

NOTE: Run Times can be set between 1 to 199 min-
utes.
 Press
+
or
–
to set the desired Run Time (MIN); then
press NEXT.
MIN
1
2
RUN
TIME
3
Set Watering Start Times
Watering Start Times are times of day at which water-
ing is set to begin.

NOTE: A total of up to six Start Times (1-6) are avail-
able for each Zone.
 Press
+
or
–
to set the 1st Start Time (ensuring that
AM/PM setting is correct); then press NEXT.

NOTE: Start Time adjustments are set in 10 minute
increments.
START
TIME

REPEAT as desired to set additional Start Times for
that Zone.

NOTE: Pressing NEXT when
-:-
(OFF) is blinking on
the display will advance to Step 4.

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
