Rain Bird ESP-RZXe Installation Guide And Operation Manual

4
4

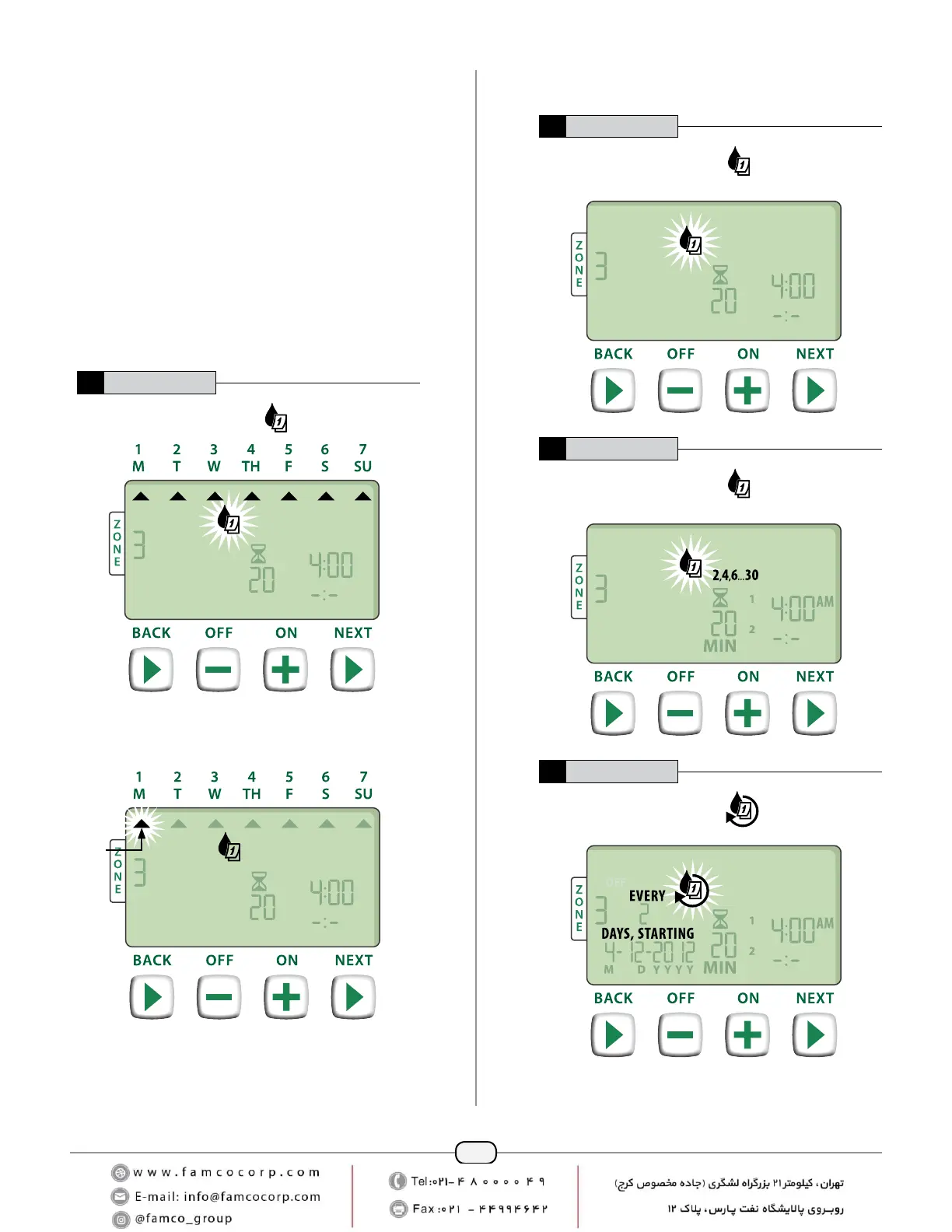

Set Watering Start Days
Watering Start Days are the calendar days or intervals
(for example, Monday, Wednesday and Friday) on
which watering is allowed.
 Press
+
or
–
to select one of four available Watering
Start Day options:
a. Custom Days - To schedule watering to occur on
selected days of the week, go to 4a.
b. Odd Days - To schedule watering to occur on all odd
calendar days (1,3,5...29 etc.), go to 4b.
c. Even Days - To schedule watering to occur on all
even calendar days (2,4,6...30 etc.), go to 4c.
d. Cyclic Days - To schedule watering to occur at inter-
vals (every 2 days, or 3 days, etc.), go to 4d.
4a Custom Days
 Press
+
or
–
to select
then press NEXT
AM
1
2
MIN
 Press ON (to enable) or OFF (to disable) the blinking
Selection Day. Cursor will then advance to the next
Selection Day.
AM
1
2
MIN
SELECTION
DAY

Press ON or OFF to set each subsequent day of the
week as desired.
4b Odd Days
 Press
+
or
–
to select
135
29
,,...
then press
NEXT
AM
1
2
MIN
135 29,,...
4c Even Days
 Press
+
or
–
to select
246 30,,...
then press
NEXT
4d Cyclic Days
 Press
+
or
–
to select
then press NEXT

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
