R&S NRP Series Getting Started

Preparing for use
R&S
®
NRP Series
20Getting Started 1419.0170.02 ─ 16
3.7.3 Using a LAN connection
Requires a power sensor with networking capabilities, a LAN power sensor.
3.7.3.1 Connecting a LAN power sensor to the LAN
Depending on the available equipment, you can choose from different ways to
connect a LAN power sensor to a controlling host.
The Ethernet interface of a LAN power sensor requires PoE (power over
Ethernet). See Chapter 4.5, "LAN PoE interface", on page 31.
Electromagnetic interference (EMI) can affect the measurement results. To
avoid any impact, use category 5 cables or better.
Setup with a PoE Ethernet switch
3
1
2 4
6
HOST
INTERFACE
IN: 3 V or 5 V logic
OUT: min. 2 V into 50 Ω
max. 5.3 V
TRIG2
I/0
PoE
SMART SENSOR TECHNOLOGY
NRP
5
7

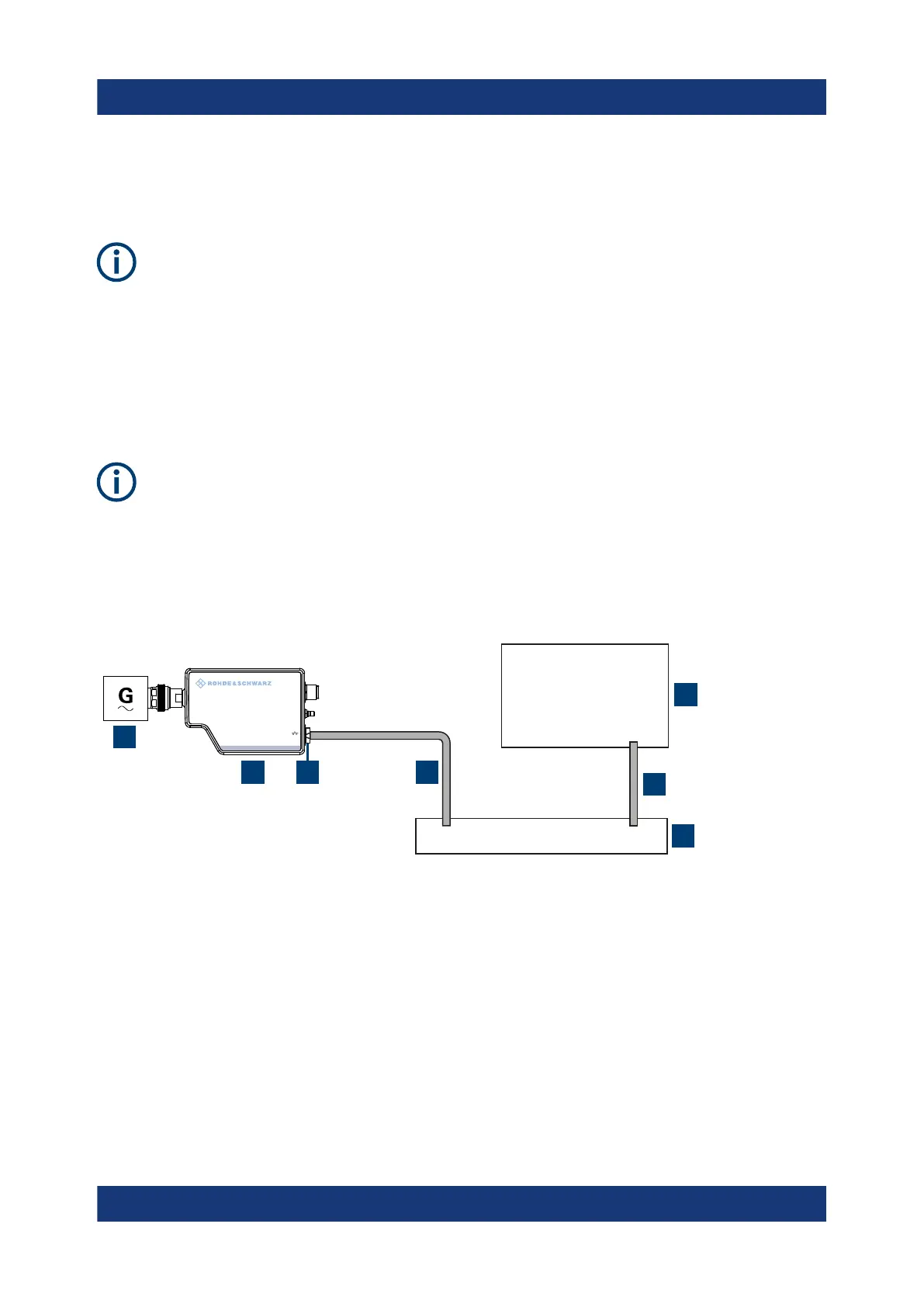

Figure 3-3: Setup with a PoE Ethernet switch
1 = Signal source
2 = LAN power sensor
3 = RJ-45 Ethernet connector
4, 6 = RJ-45 Ethernet cable
5 = Controlling host
7 = Ethernet switch supporting PoE power delivery, e.g. R&S NRP-ZAP1
1. NOTICE! Incorrectly connecting or disconnecting the power sensor can dam-
age the power sensor or lead to erroneous results. Ensure that you connect or
disconnect the power sensor as described in Chapter 3.4, "Connecting to a
DUT", on page 13.
Connecting to a controlling host

R&S NRP Series Specifications

General

Product Type	Power Sensor
Connector Type	SMA, 3.5 mm, 2.4 mm
Interface	USB, LAN
Storage Temperature	-40°C to +70 °C
Dimensions	Dependent on model
Weight	Dependent on model
Compatibility	R&S Instruments
Type	Diode
