Trying Out the Instrument
R&S
®
RTO2000
72Getting Started 1332.9719.02 ─ 10

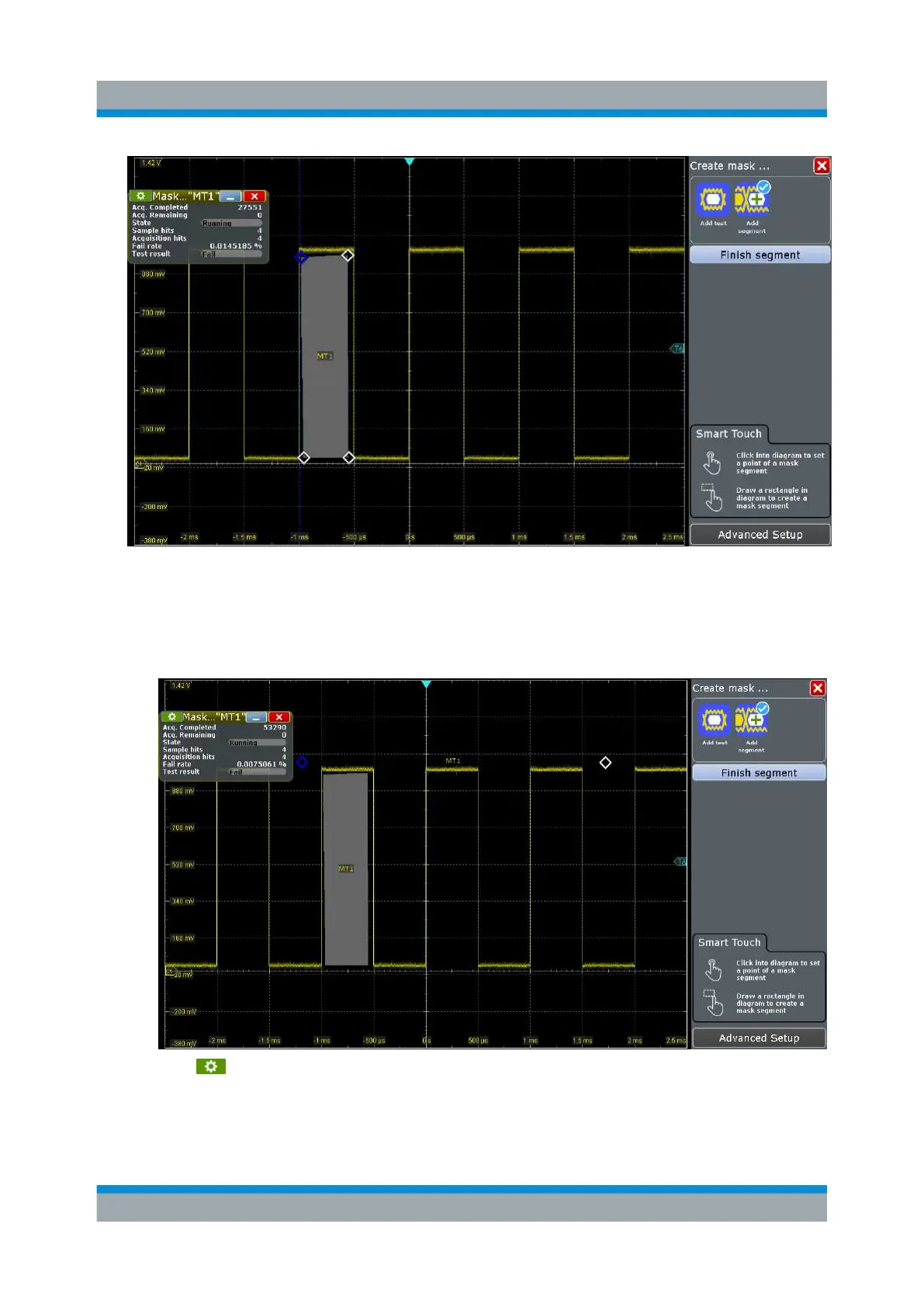

5. Add another mask segment above the positive pulse:
a) Tap "Add segment" in the sidebar.
b) Tap two points slightly above the pulse.
c) Tap "Finish segment" in the sidebar.
d) Tap in the result box.
e) Select the "Mask Definition" tab.
Performing a Mask Test
