10
5. Install the harness cover using Allen bolts to secure.
INSTALLATION AND SET UP

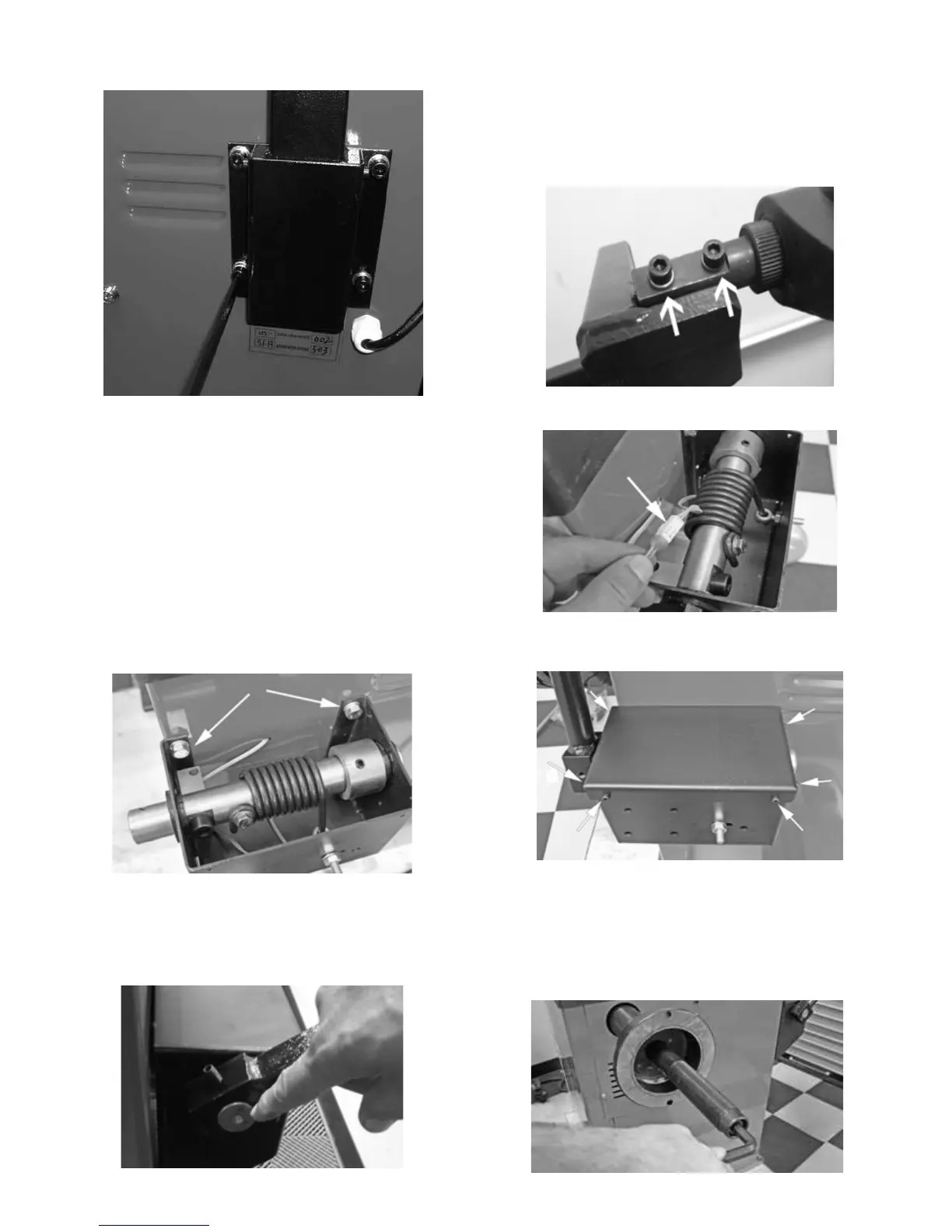

MOUNTING THE HOOD ASSEMBLY
1. Locate the Hood Assembly and open the accessory
box and remove the Hood Mounting Bracket and
hardware.
2. Use help and carefully assemble the Hood as
described below.
3. Remove the Hood Bracket Mounting Cover and attach
the Hood Mounting Bracket to the rear of the balancer
cabinet using the 4 bolts and washers.
4. Slide the Hood Arm over the Hood Axle, align the
holes in the Axle with the Allen bolts then secure in
place using one Allen screw. Secure to shaft using a
thick washer and Allen screw.
5. Raise the hood and hold it up. Use help to hold the
hood while attaching the hood to the Hood Arm.
6. Secure in place the hood to the arm by installing the
angular metal bracket and the two Allen bolts, then
fasten hood to bracket using the remaining two Allen
bolts.
7. Connect the hood switch wires as shown.
8. Tuck the wire into the Hood Switch Box and install
Hood Switch Box Cover an tighten Allen bolts.
INSTALLING THE
THREADED MAIN SHAFT
1. Locate the Face Plate / Threaded Main Shaft and
mounting bolt in the accessory box and install as
shown.
To Next Page
