10. CAL-END will be displayed.
Outer gauge-arm calibration is now complete.
DISTANCE SLIDE RULER
CALIBRATION PROCEDURE

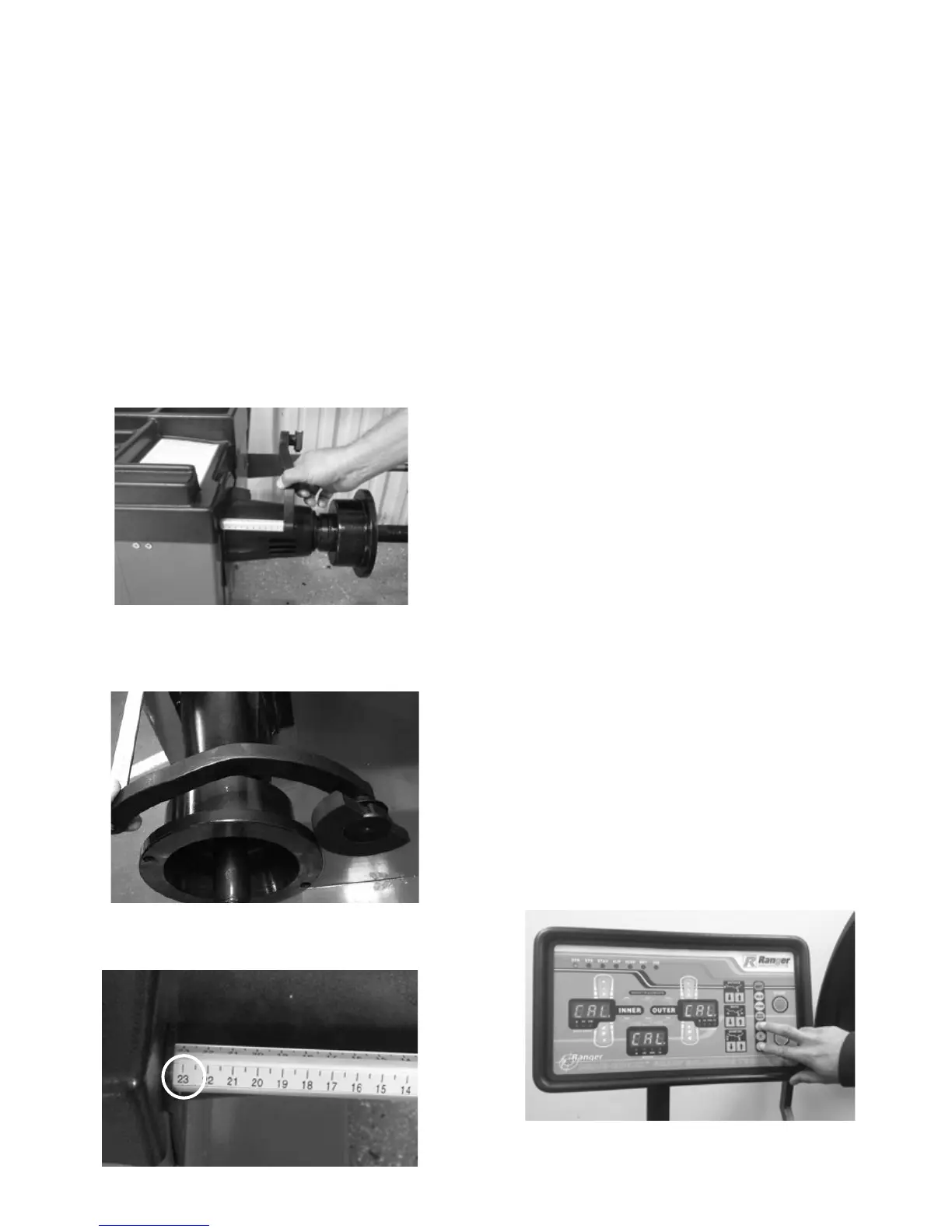

1. Start without a wheel mounted on the shaft.
2. Press and hold the STOP button then press the FINE
button.
3. CAL-100-DIS will be displayed.
4. Pull the distance slide ruler out to 10cm / 100mm.
5. While holding the distance slide ruler out at 10cm /
100mm, press the ALU button.
6. CAL-235-DIS will be displayed.
7. Install the calibration disk to weight applicator at the
end of the index arm.
8. Pull the distance slide ruler out to 23.5cm / 235mm
and rest the calibration disk against the flange.
9. While holding the distance slide ruler out at 23.5cm /
235mm, press the ALU button.
10. Mount a 16” or 17” tire-wheel assembly onto the shaft.
11. Set the diameter setting to the same diameter as on the
wheel you are using.
12. Press the ALU button.
13. Place the distance slide ruler handle onto the inner edge
of the wheel
14. While holding the distance slide ruler onto the inner
edge of the wheel, press the ALU button.
15. Distance slide calibration is now complete.
DUAL-PLANE SELF-CALIBRATION
PROCEDURE
NOTE: Before performing this procedure, make sure the
balancer is bolted down and all mounting surfaces are clean
and undamaged. PAY CLOSE ATTENTION while following
this procedure or balancer will fail to perform accurately.
1. A standard 18” wheel/tire assembly with minimal wear or
damage is recommended for this procedure.
2. Following all standard operator warnings, select the
proper size mounting cone that will accurately fit the
center hole.
3. DO NOT use the Mounting Spring during this procedure.
Place wheel onto arbor shaft and slide it back against
the arbor faceplate. Slide the cone onto the arbor and
into the center of the wheel. Lift wheel slightly while
securing the Quick-Nut and tighten securely against
cone.
4. Enter correct wheel data (distance, width, diameter).
For this procedure, it is recommended to use manual
entry (push buttons) for the wheel data.
5. Press and hold C and D buttons until CAL-CAL is
displayed and LED’s stop flashing.
6. Lower hood then press START to begin calibration
procedure.
