GB-3
ZT 220D
Series
ASSEMBLY AND SETUP
TOOLS REQUIRED FOR ASSEMBLY
– Wrecking bar
– Claw hammer
– Ratchets: 3/8"
– Sockets: 3/8", 1/2", 17 mm
– Wrenches: 13 mm, 15 mm, 17 mm, 18 mm, 1-1/16”, 1-1/8”
– Straight edge
– Tire pressure gauge
– Blocks (for deck leveling)
NOTE: All references below to the "right" or "left" are with respect to an operator at the controls.

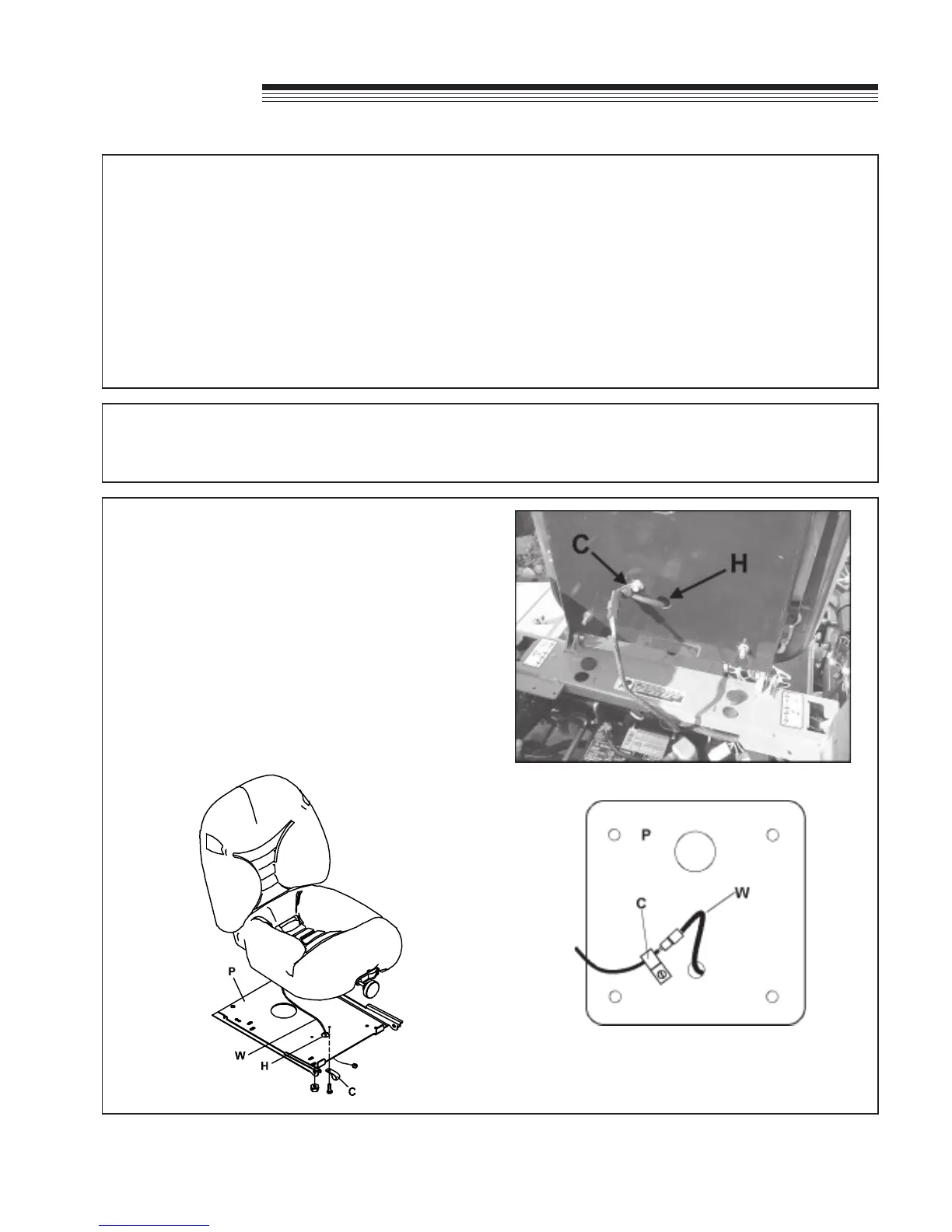

2. INSTALL SEAT
a) Position seat over seat plate and route seat wire
W through hole H in seat plate. Drop seat
mounting studs through seat plate holes. Secure
studs with four 5/16-18 whiz nuts and tighten
securely.
b) Leave enough seat wire between the seat and
seat plate to allow full fore and aft travel of the
seat. Secure seat wire on the bottom of the seat
plate with clip C and a 1/4-20x3/8 thread forming
screw.
c) Connect the tractor harness to the seat wire.
Bottom of seat plate P showing clip C
1. UNCRATE UNIT
a) Remove crate top and sides, discard packing materials.
