GB-5
ZT 220D
Series
ASSEMBLY AND SETUP

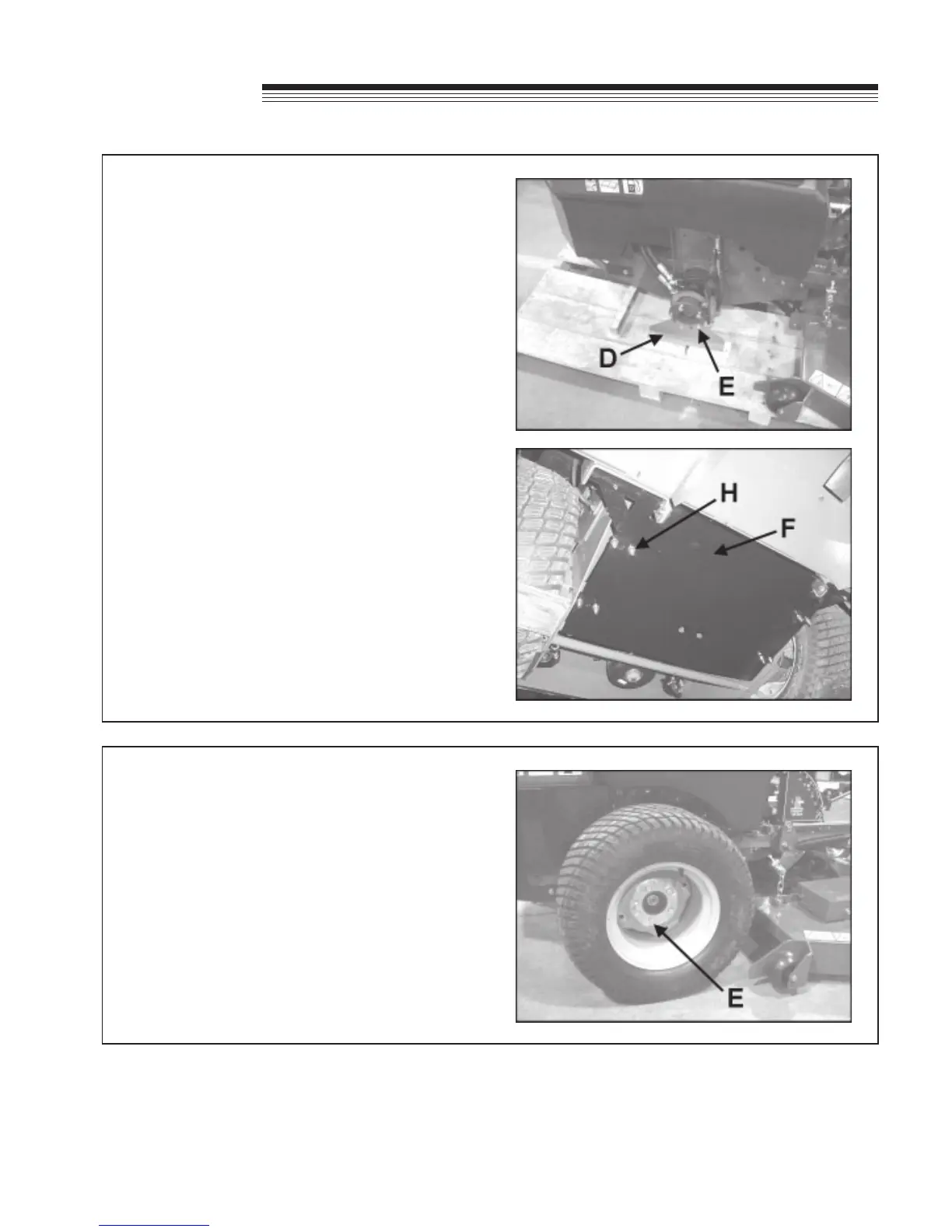

5. INSTALL GRASS DEFLECTOR
a) Support the rear of the tractor with jackstands or
a hoist.
b) Remove the rear shipping brackets D from the
drive wheel hubs. Retain the wheel bolts E for
later wheel attachment.
c) Raise the rear of the tractor, support with
jackstands or a hoist.
d) Install the discharge deflector F to the pusharms
using (4) U-bolt, (4) U-bolt spacers, (8) 5/16-18
nylock nuts. The formed edge of the deflector
faces upward in front of the pusharm mounting
pin. Tighten 5/16-18 nylock nuts H until backing
plates flex; do not overtighten.
6. INSTALL REAR WHEELS
a) Install rear wheels to tractor wheel hubs using
(10) wheel bolts E, raising the rear of tractor if
necessary.
b) Remove jackstands or hoist and lower rear of
tractor.
