Rath SmartRescue 10 User Manual

Page 4

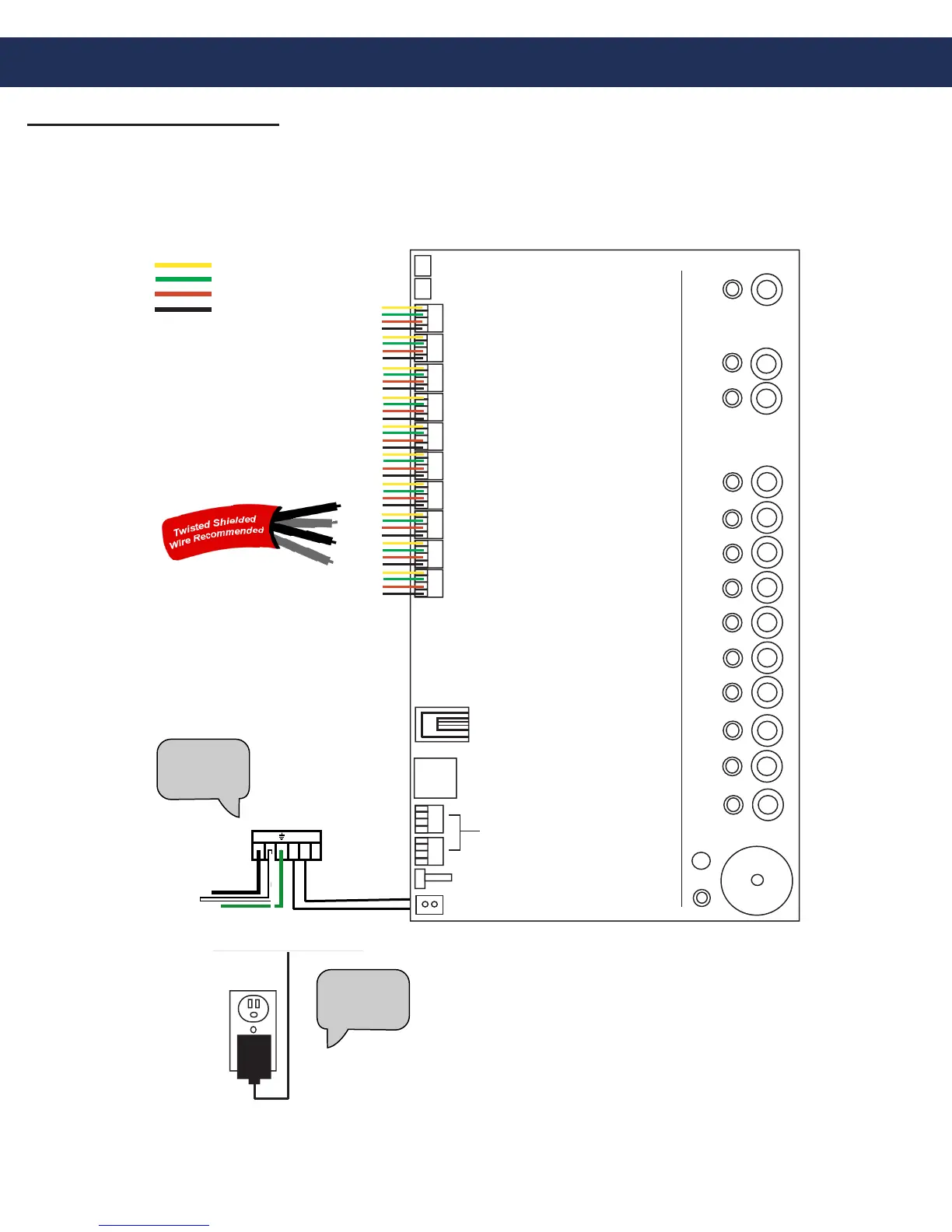

Wiring the SmartRescue
•Connectthehotwireofthe120vactotheLscrew
• Connect the neutral wire of the 120vac to the N screw
• Connect the ground wire of the 120vac to the ground screw
• Connect one lead of the DC power connection to the –V screw and the other to the +V screw, polarity is not important.
• Connect the DC power connection to the SmartRescue. The power connection is on the lower left hand side of the board.
Step 5
Wire the SmartRescue to a 120V power source
Note: Models 2500-205 and 2500-210 come with a Plug-in Transformer
Wiring the SmartRescue
+V-V
L
N
GROUND
NEUTRAL
120vac
HOT
Yellow (PIN-1)
Green (PIN-2)
Red (PIN-3)
Black (PIN-4)
Handset Connection
Dedicated Analog
Phone Line
24V Power Input
Battery Backup
Optional Sub-Master
Phone Ports
RJ-11
Plug-In
Transformer
Phone Push Connector 1
Phone Push Connector 2
Phone Push Connector 3
Phone Push Connector 4
Phone Push Connector 5
Phone Push Connector 6
Phone Push Connector 7
Phone Push Connector 8
Phone Push Connector 9
Phone Push Connector 10
Supplied by
Rath!
Supplied by
Rath!

Rath SmartRescue 10 Specifications

General

Brand	Rath
Model	SmartRescue 10
Category	Emergency Phone
Language	English
