5 Setting up the device

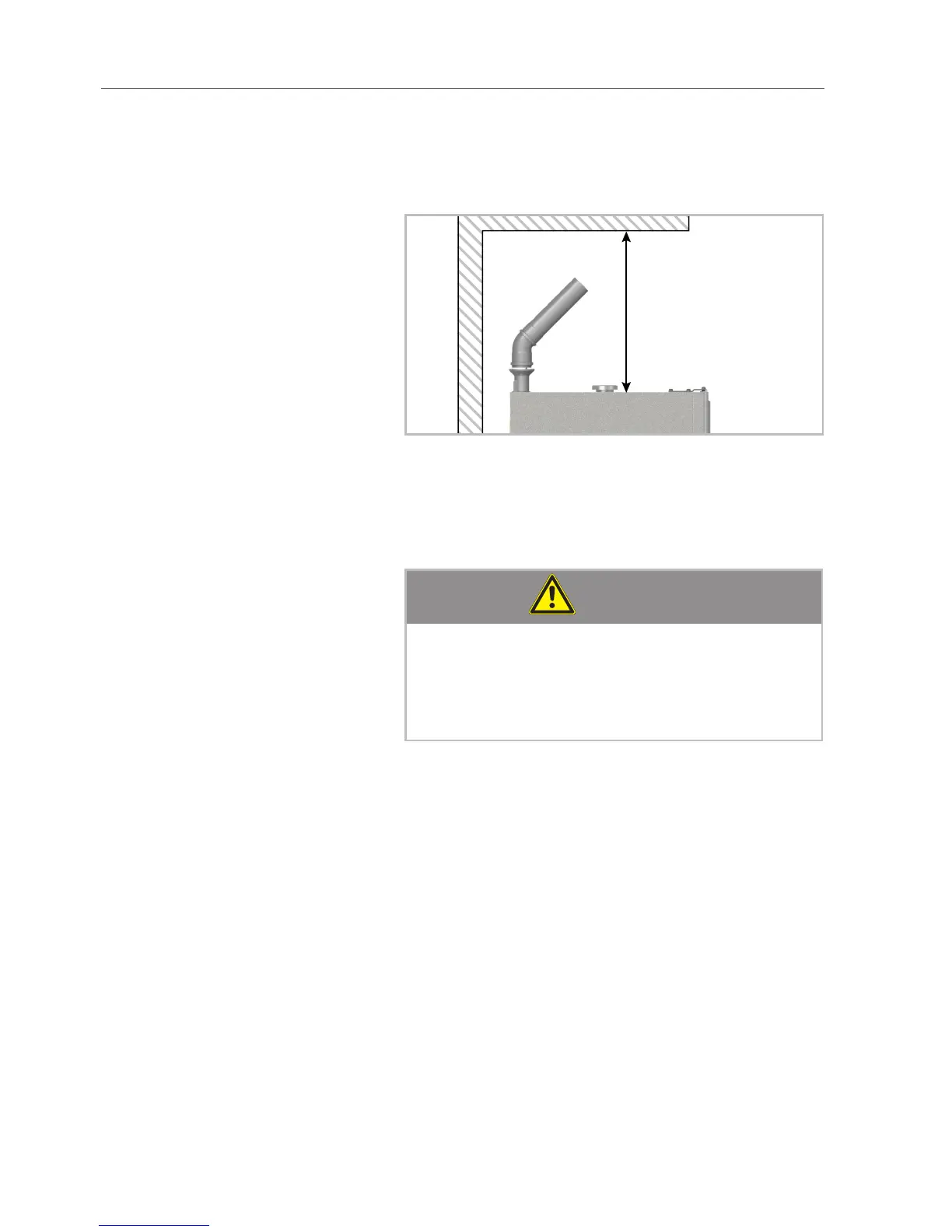

Minimum distance to ceiling If steam from the ventilation pipe cannot be
directed into an exhaust hood or a ventilating
ceiling, there must be at least 500mm clearance
space above the device.
min. 500 mm
Condensation breaker This clearance space is sufficient to install a
condensation breaker so that exhaust air can be
directed into non-critical areas.
Other
ATTENTION!
Device malfunction!
Avoid vapor sources near the cooling air filter.
Moisture intake may result in device malfunc-
tions.
5.3 Securing the device
5.3.1 Tabletop units
For safety reasons, tabletop units should only be
placed atop a manufacturer-original oven stand
or base unit. Maximum working height for the
topmost rack is 1600 mm.
Unit size 60 These units do not have height-adjustable feet;
instead, they are set up directly on the installa-
tion surface.
The installation surface must be level, clean and
free of grease. Unevenness across the width of
the device must be no greater than 1 mm.
A sealant band is affixed to the underside of the
device to seal the installation site. This prevents
