7 Water connection
7.2 Device water connection
Unit size 60:
1
Unit sizes 61, 62, 11, 12:
1
2
3
Unit sizes 21, 22:
3
2
1

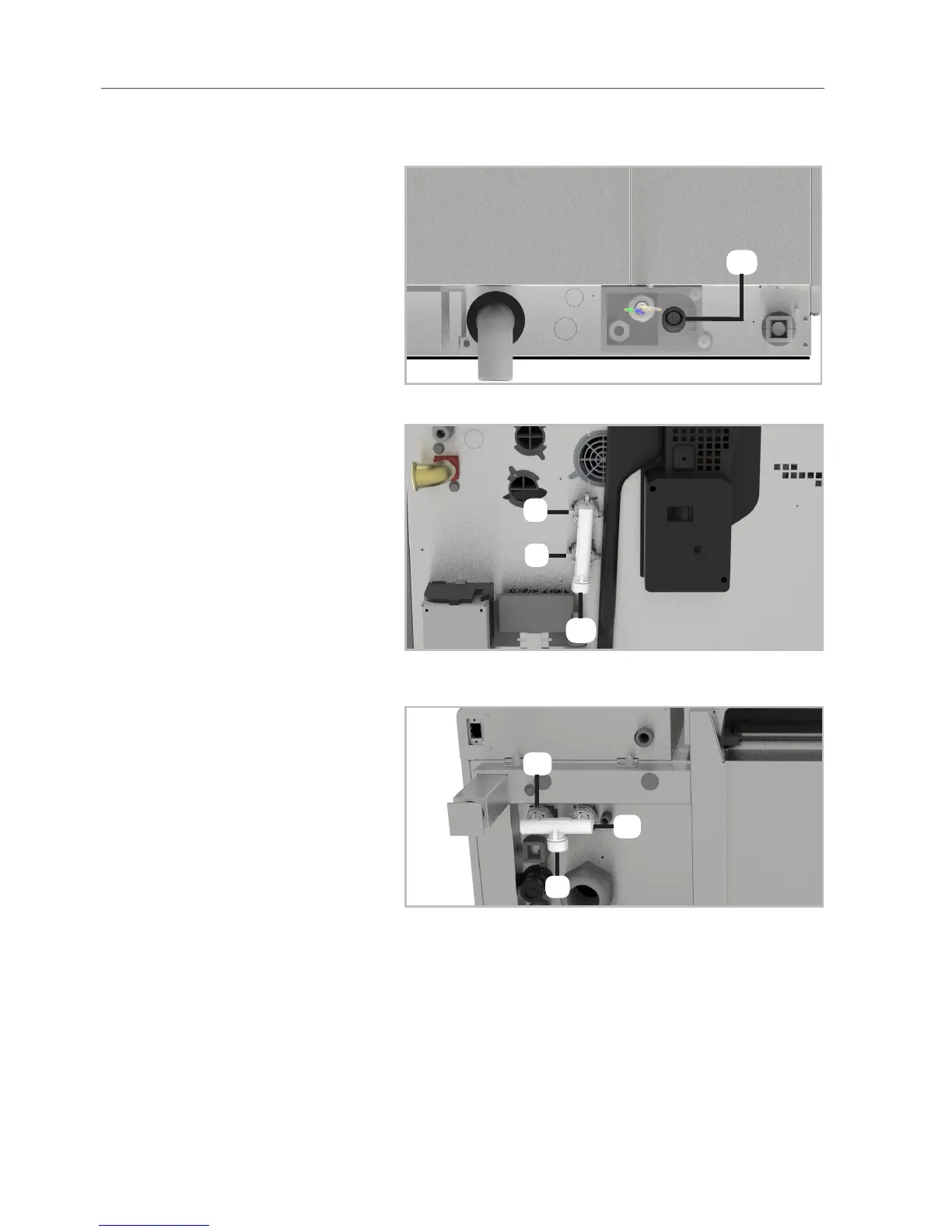

Water connection legend 1 = 3/4” common water supply line.
(cold water up to 30°C [86°F])
61, 62, 11, 12, 21, 22: If split water connection:
2 = 3/4” cold water supply line (max. 30°C
[86°F]).
3 = 3/4” soft water supply line (max 30°C
[86°F]) (steam generator, hand shower, SCC
only: additional humidification, cleaning).
