INSTRUCTION, USE AND
MAINTENANCE MANUAL
1300A004
999072
129571492
GAR111
GAR101
GAR108
129590710
A

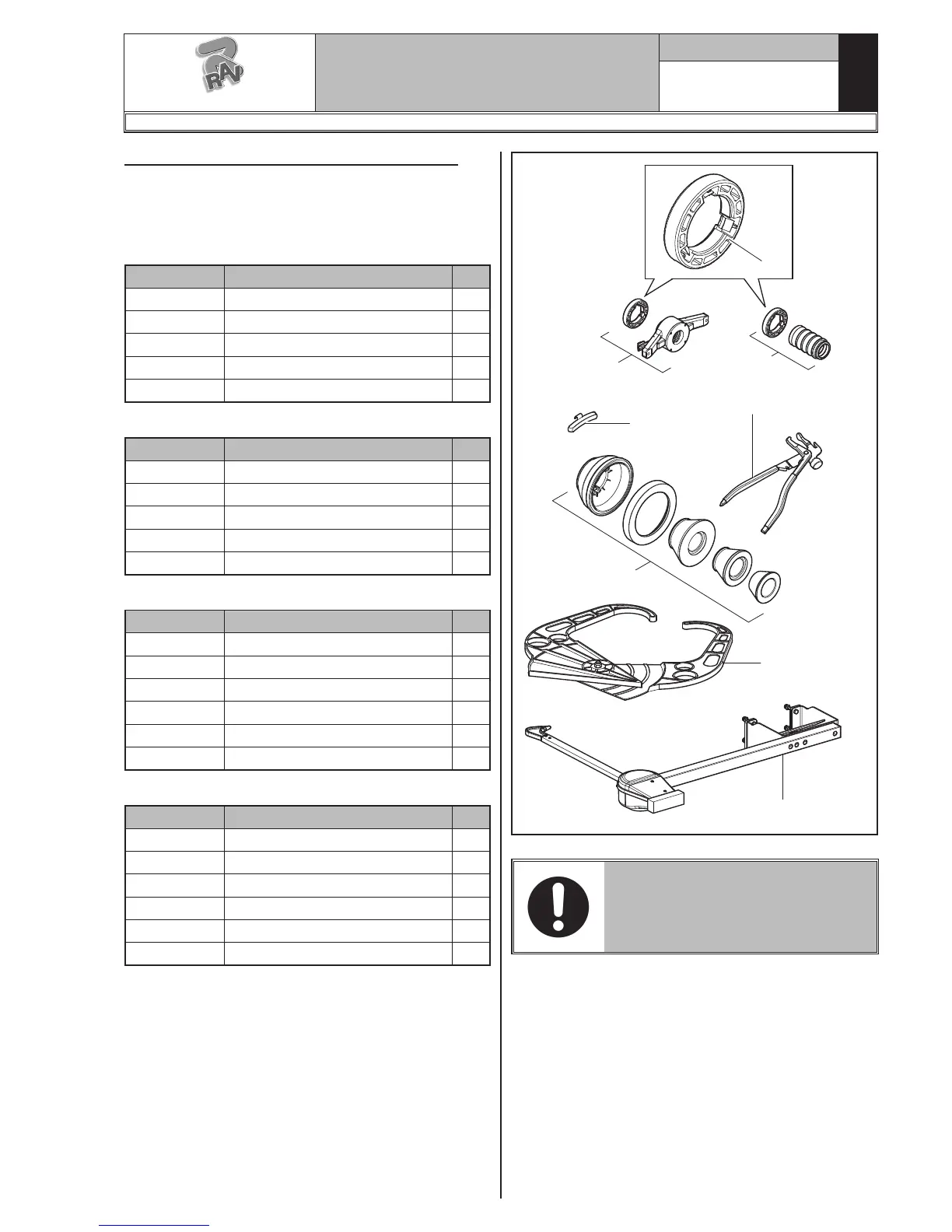

Fig. 5
9.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed below are there (see
Fig. 5).
For G3.140R model
Code Description N.
GAR101 Rapid ring nut + pusher ring 1
GAR111 Cones + protection cup 1
129571492 Gauge 1
1300A004 Weight pliers 1
999072 Carriages counterweight 1
For GP3.140R model
Code Description N.
GAR108 Rapid ring nut + pusher ring 1
GAR111 Cones + protection cup 1
129571492 Gauge 1
1300A004 Weight pliers 1
999072 Carriages counterweight 1
For G3.140RS model
Code Description N.
GAR101 Rapid ring nut + pusher ring 1
GAR111 Cones + protection cup 1
129571492 Gauge 1
1300A004 Weight pliers 1
999072 Carriages counterweight 1
129590710 External data gauge 1
For GP3.140RS model
Code Description N.
GAR108 Rapid ring nut + pusher ring 1
GAR111 Cones + protection cup 1
129571492 Gauge 1
1300A004 Weight pliers 1
999072 Carriages counterweight 1
129590710 External data gauge 1
THE GRIP-RING (FIG. 5 REF. A)
MUST BE MOUNTED WITH THE
TEETH OR DISCHARGE SIDE
TOWARDS THE RING-NUT OR
SLEEVE (SEE FIG. 5).
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
