INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 13 of 60
1
2

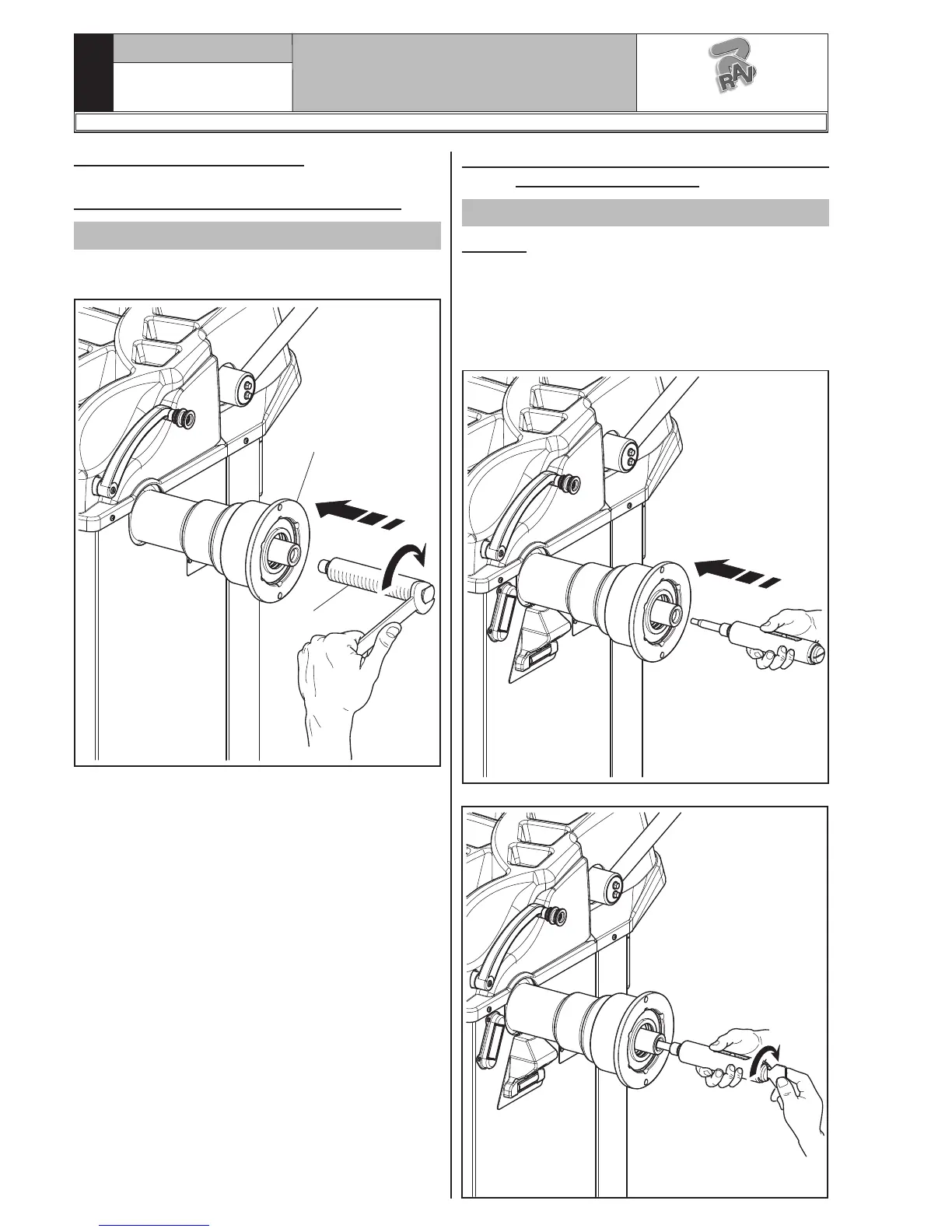

Fig. 6
Fig. 7
Fig. 8
9.3 Assembly procedures
9.3.1 Fitting the mandrel on the flange
Only for G3.140R - G3.140RS models
Screw the mandrel with an Allen wrench (Fig. 6 ref. 1)
on the flange (Fig. 6 ref. 2).
9.3.2 Fitting and removal of the pneumatic
mandrel on the flange
Only for GP3.140R - GP3.140RS models
FITTING
1. After making power and air connections switch on
the machine (the pneumatic mandrel always opens
when the machine is switched on). Switch the ma-
chine off. Fit the internal mandrel on the flange
and tighten it with the wrench provided (Fig. 7
and Fig. 8).
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
